890-WU - MTD 420cc Engine General Assembly Parts Diagram

420cc Engine

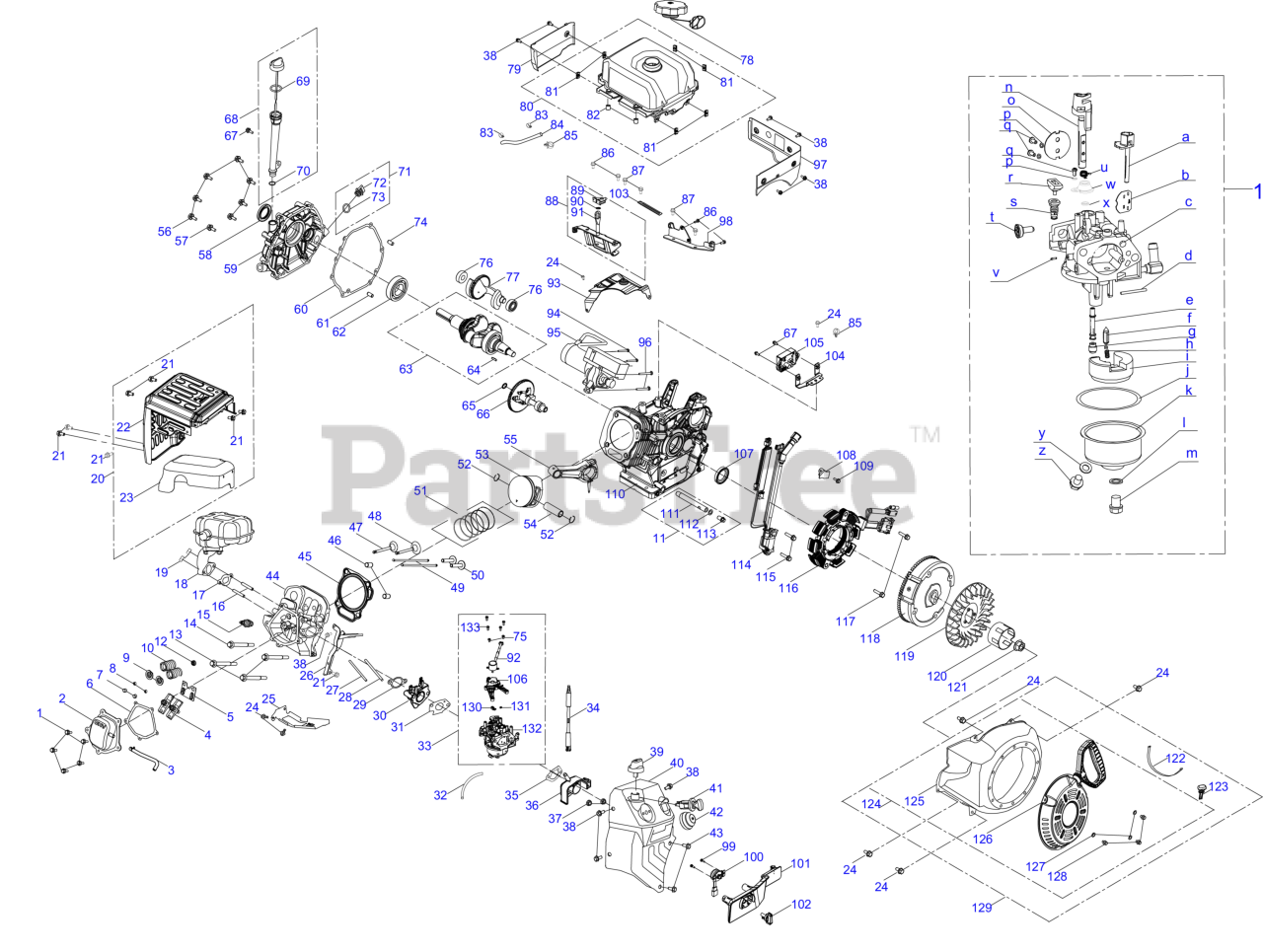

General Assembly Parts Diagram

  • Title

1

MTD 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11220

VALVE COVER

$35.99

$

Usually ships in 3-6 days

0

3

MTD 751P20188

BREATHER HOSE

$4.99

$

Usually ships in 3-6 days

0

4

MTD 951-11981A

ROCKER ARM ASSEMBLY

$40.99

$

In Stock, only 1 left!

0

5

MTD 951-11965B

PUSH ROD GUIDE

$6.99

$

Usually ships in 3-6 days

0

6

MTD 951-15425

VALVE COVER GASKET

$13.99

$

In Stock, only 1 left!

0

7

MTD 951-12269

EXHAUST VALVE ADJUSTER

$6.49

$

In Stock, Qty 6

0

8

MTD 951-14912A

VALVE CAP

$3.49

$

In Stock, only 2 left!

0

9

MTD 951-14911

VALVE SPRING SEAT

$5.99

$

Usually ships in 3-6 days

0

10

MTD 951-15812

VALVE SPRING

$7.99

$

Usually ships in 3-6 days

0

11

MTD 751P19228A

OIL DRAIN PIPE

$13.99

$

Usually ships in 3-6 days

0

12

MTD 951-11964A

INTAKE VALVE SEAL

$11.99

$

In Stock, only 1 left!

0

13

MTD 710-06064

SCREW M10-1.25 x 87 x GR10.9

$6.99

$

Usually ships in 3-6 days

0

14

MTD 710-06065

SCREW M10-1.25 x 65 x GR10.9

$6.49

$

Usually ships in 3-6 days

0

15

MTD 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

16

MTD 710-04964

STUDS M8-1.25 x 48.5

$6.49

$

In Stock, only 1 left!

0

17

MTD 951-11212A

MUFFLER GASKET

$5.49

$

In Stock, only 2 left!

0

18

MTD 951-15426A

MUFFLER

$92.99

$

Usually ships in 3-6 days

0

19

MTD 751-15427

NUT M8

$4.49

$

In Stock, only 1 left!

0

20

MTD 651P08797

MUFFLER GUARD

$44.99

$

Usually ships in 0 days

0

21

MTD 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

22

MTD 751P15428

MUFFLER SHIELD (OUTER)

$61.99

$

Usually ships in 3-6 days

0

23

MTD 751P15429A

MUFFLER SHIELD (INNER)

$33.99

$

Usually ships in 3-6 days

0

24

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 19

0

25

MTD 951-11317

CYLINDER BAFFLE

$27.99

$

Usually ships in 3-6 days

0

26

MTD 951-15430

RECOIL SNOW GUARD

$14.99

$

Usually ships in 3-6 days

0

27

MTD 710-04963A

CARBURETOR STUD

$6.49

$

Usually ships in 3-6 days

0

28

MTD 751-20209

STUD M6 x 123

$2.99

$

Usually ships in 3-6 days

0

29

MTD 951-15434A

CARBURETOR INSULATOR GASKET

$7.49

$

In Stock, Qty 7

0

30

MTD 751P11316A

INSULATOR

$8.99

$

In Stock, only 2 left!

0

31

MTD 951-15435

CARBURETOR INSULATOR GASKET

$7.49

$

In Stock, only 1 left!

0

32

MTD 935-05038

PRIMER HOSE

$12.99

$

In Stock, only 3 left!

0

33

MTD 651P08800

CARBURETOR

$71.99

$

Usually ships in 0 days

0

34

MTD 951-15436

CHOKE KNOB SHAFT

$6.49

$

Usually ships in 3-6 days

0

35

MTD 951-15448

HEATER BOX CARBURETOR GASKET

$8.49

$

In Stock, Qty 6

0

36

MTD 751P20214

HEATER BOX

$4.99

$

Usually ships in 3-6 days

0

37

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

38

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 11

0

39

MTD 951-15450A

CHOKE KNOB

$7.49

$

In Stock, only 2 left!

0

40

MTD 951-15452

CONTROL PANEL

$26.99

$

Usually ships in 3-6 days

0

41

MTD 951-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022A)

$10.99

$

In Stock, only 2 left!

0

42

MTD 951-10639B

PRIMER

$15.99

$

Usually ships in 3-6 days

0

43

MTD 710-05192

SCREW M6-1 x 20 CL5.8

$5.99

$

Usually ships in 3-6 days

0

44

MTD 751-15813

CYLINDER HEAD (690-WU) ZS

$132.99

$

In Stock, only 1 left!

0

45

MTD 951-05407

CRANKSHAFT ASSEMBLY

$201.99

$

Usually ships in 3-6 days

0

46

MTD 715-04097

DOWEL PIN

$6.49

$

Usually ships in 3-6 days

0

47

MTD 951-15814

EXHAUST VALVE

$19.99

$

In Stock, only 1 left!

0

48

MTD 951-15777

INTAKE VALVE

$19.99

$

Usually ships in 3-6 days

0

49

MTD 951-14226

PUSH ROD
(Superseded to 951-14226A)

$11.99

$

Usually ships in 3-6 days

0

50

MTD 951-11962

TAPPET
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

51

MTD 951-12579

PISTON RING KIT

$29.99

$

Usually ships in 3-6 days

0

52

MTD 951-11953A

PISTON PIN SNAP RING

$3.99

$

In Stock, Qty 5

0

53

MTD 951-11952

PISTON

$43.99

$

Usually ships in 3-6 days

0

54

MTD 951-11954

PISTON PIN
(Superseded to 951-11954A)

$8.49

$

Usually ships in 3-6 days

0

55

MTD 951-11951

CONNECTING ROD ASSEMBLY

$77.99

$

Usually ships in 3-6 days

0

56

MTD 710-06061

SCREW M8-1.25 x 38 GR10.9

$6.49

$

Usually ships in 3-6 days

0

57

MTD 710-06289

BOLT M8 x 45

$4.49

$

Usually ships in 3-6 days

0

58

MTD 951-11375A

OIL SEAL

$15.99

$

In Stock, Qty 20+

0

59

MTD 751P20248

CRANKCASE COVER

$64.99

$

Usually ships in 3-6 days

0

60

MTD 951-15455A

CRANKCASE COVER GASKET

$14.99

$

Usually ships in 3-6 days

0

61

MTD 715-04102

DOWEL PIN

$5.99

$

Usually ships in 3-6 days

0

62

MTD 951-15456

BALL BEARING

$27.99

$

Usually ships in 3-6 days

0

63

MTD 951-05407

CRANKSHAFT ASSEMBLY

$201.99

$

Usually ships in 3-6 days

0

64

MTD 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 9

0

65

MTD 736-04476

WASHER

$5.99

$

Usually ships in 3-6 days

0

66

MTD 951-11959B

CAMSHAFT

$68.99

$

Usually ships in 3-6 days

0

67

MTD 710-05003

BOLT M6-1 x 18 GR8.8

$4.49

$

In Stock, only 4 left!

0

68

MTD 951-05391A

DIPSTICK OIL ASSEMBLY

$26.99

$

In Stock, only 1 left!

0

69

MTD 921-04663A

O-RING

$5.99

$

Usually ships in 3-6 days

0

70

MTD 951-15459

O-RING

$4.49

$

Usually ships in 3-6 days

0

71

MTD 951-05392A

OIL DRAIN PLUG

$7.49

$

Usually ships in 3-6 days

0

72

MTD 751P15462

OIL PLUG
(Superseded to 751P15462A)

$2.99

$

Usually ships in 3-6 days

0

73

MTD 951-11960

O-RING

$4.49

$

In Stock, only 1 left!

0

74

MTD 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

75

MTD 751-22625

SCREW M4x8

$1.99

$

Usually ships in 3-6 days

0

76

MTD 951-15463

BALL BEARING

$12.99

$

Usually ships in 3-6 days

0

77

MTD 951-12095

BALANCE GEAR ASSEMBLY

$120.99

$

Usually ships in 3-6 days

0

78

MTD 951-15172A

FUEL CAP

$18.99

$

Usually ships in 3-6 days

0

79

MTD 951-15464

FUEL TANK BACK PANEL

$7.99

$

Usually ships in 3-6 days

0

80

MTD 951-05394

FUEL TANK ASSEMBLY

$111.99

$

Usually ships in 3-6 days

0

81

MTD 951-15465

THREADED TAB

$3.99

$

In Stock, only 1 left!

0

82

MTD 951-15466

BUSHING

$3.49

$

Usually ships in 3-6 days

0

83

MTD 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

In Stock, Qty 12

0

84

MTD 951-15467

FUEL HOSE

$18.99

$

Usually ships in 3-6 days

0

85

MTD 723-04071

FUEL LINE SUPPORT CLAMP
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

86

MTD 710-06537

BOLT

$3.99

$

Usually ships in 3-6 days

0

87

MTD 710-04921

BOLT M8-1.25 x 14 GR8.8

$5.49

$

Usually ships in 3-6 days

0

88

MTD 951-05395

FUEL TANK MOUNTING BRACKET

$23.99

$

Usually ships in 3-6 days

0

89

MTD 951-15469

RUBBER GROMMET

$3.99

$

Usually ships in 3-6 days

0

90

MTD 951-15470

RUBBER GROMMET

$4.49

$

Usually ships in 3-6 days

0

91

MTD 951-15471

FUEL TANK MOUNTING BRACKET

$21.99

$

Usually ships in 3-6 days

0

92

MTD 751P22749

STEPPER MOTOR

$22.99

$

Usually ships in 0 days

0

93

MTD 751P20253

GOVERNOR GEAR BRACKET

$8.49

$

Usually ships in 3-6 days

0

94

MTD 751-15472

SCREW

$4.99

$

Usually ships in 3-6 days

0

95

MTD 951-15492

ELECTRIC STARTER

$440.99

$

Usually ships in 3-6 days

0

96

MTD 710-04967

BOLT M8-1.25 x 55 GR8.8

$6.49

$

Usually ships in 3-6 days

0

97

MTD 951-15474A

FUEL TANK FRONT PANEL

$11.99

$

Usually ships in 3-6 days

0

98

MTD 951-15475

FUEL TANK BASE BRACKET

$15.99

$

Usually ships in 3-6 days

0

99

MTD 751-20216

SCREW

$2.99

$

Usually ships in 3-6 days

0

100

MTD 751P22750

SPEED CONTORL SWITCH

$15.99

$

Usually ships in 0 days

0

101

MTD 751P22751

SPEED KNOB COVER

$3.99

$

Usually ships in 0 days

0

102

MTD 751P22753

SPEED CONTROL KNOB

$1.99

$

Usually ships in 0 days

0

103

MTD 951-15889

CLIP

$5.49

$

Usually ships in 3-6 days

0

104

MTD 751P22754

ECM BRACKET

$3.49

$

Usually ships in 0 days

0

105

MTD 751P22756

ECM

$43.99

$

Usually ships in 0 days

0

106

MTD 751P22757

MOTOR BASE

$7.99

$

Usually ships in 0 days

0

107

MTD 951-11499A

OIL SEAL

$13.99

$

In Stock, only 1 left!

0

108

MTD 951-11186

ALTERNATOR WIRE CLAMP BRACKET

$4.99

$

Usually ships in 3-6 days

0

109

MTD 710-04966

BOLT M6-1 x 8 GR8.8

$6.49

$

Usually ships in 3-6 days

0

110

MTD 751P22766

CRANKCASE

$252.99

$

Usually ships in 0 days

0

111

MTD 951-11350

OIL DRAIN PIPE

$9.49

$

Usually ships in 3-6 days

0

112

MTD 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

113

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 11

0

114

MTD 751P22758

IGNITION MODULE

$29.99

$

Usually ships in 0 days

0

115

MTD 710-05350

IGNITION COIL BOLT M6-1 x 28 GR8.8

$3.99

$

Usually ships in 3-6 days

0

116

MTD 751P22759

CHARGING COIL

$41.99

$

Usually ships in 0 days

0

117

MTD 710-04969

BOLT-M6-1 x 30 GR8.8

$4.49

$

In Stock, Qty 13

0

118

MTD 951-12556

FLYWHEEL

$203.99

$

Usually ships in 3-6 days

0

119

MTD 951-11313A

COOLING FAN

$50.99

$

Usually ships in 3-6 days

0

120

MTD 951-11314

STARTER CUP

$18.99

$

Usually ships in 3-6 days

0

121

MTD 712-05169

FLYWHEEL NUT M16X1.5

$8.49

$

Usually ships in 3-6 days

0

122

MTD 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

123

MTD 951-10630

IGNITION KEY

$6.99

$

In Stock, only 3 left!

0

124

MTD 951-05396

BLOWER HOUSING ASSEMBLY

$83.99

$

Usually ships in 3-6 days

0

125

MTD 951-15481

BLOWER HOUSING

$47.99

$

Usually ships in 3-6 days

0

126

MTD 951-05397A

RECOIL START ASSEMBLY

$56.99

$

Usually ships in 3-6 days

0

127

MTD 736-04455B

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

128

MTD 710-06354

BOLT M6 x 10

$6.99

$

Usually ships in 3-6 days

0

129

MTD 651P05915

RECOIL STARTER

$130.99

$

Usually ships in 3-6 days

0

130

MTD 751P22760

GUIDE CLAMP

$1.99

$

Usually ships in 0 days

0

131

MTD 732P06906

DAMPER SPRING

$4.99

$

Usually ships in 3-6 days

0

132

MTD 651P08801

CARBURETOR

$101.99

$

Usually ships in 0 days

0

133

MTD 710-05268

SCREW M4-0.7x10

$2.49

$

Usually ships in 3-6 days

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Carburetor Body

$

$

Not available

d

MTD 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

e

Nozzle Tube

$

$

Not available

f

MTD 751P14036A

NEEDLE VALVE

$5.99

$

Usually ships in 3-6 days

0

g

Main Jet

$

$

Not available

h

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

i

MTD 731P09131

CARBURETOR FLOAT

$3.49

$

Usually ships in 3-6 days

0

j

MTD 951-11970

FUEL BOWL GASKET

$6.99

$

In Stock, Qty 7

0

k

MTD 951-15487

FLOAT BOWL

$10.99

$

In Stock, only 1 left!

0

l

MTD 951-11348A

FUEL BOWL GASKET

$5.99

$

In Stock, Qty 11

0

m

MTD 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 12

0

n

Throttle Shaft

$

$

Not available

o

Throttle Plate

$

$

Not available

p

MTD 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

q

MTD 710P06580

SCREW M3x 6

$3.49

$

Usually ships in 3-6 days

0

r

Idle Jet Rivet

$

$

Not available

s

Idle Jet

$

$

Not available

t

MTD 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

u

Throttle Shaft Spring

$

$

Not available

v

MTD 737P05003

PRIMER LINE

$2.49

$

Usually ships in 3-6 days

0

w

Throttle Shaft Spring

$

$

Not available

x

MTD 736P05037

FIBER WASHER

$0.99

$

Usually ships in 3-6 days

0

y

MTD 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

z

MTD 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 8

0

MTD 952Z890-WU

COMPLETE ENGINE 420cc

$1667.99

$

Usually ships in 0 days

0
