889038 - Gravely 50" Deck for Pro-Master 300 Mower (SN: 013000 & Above) Mower Spindles Parts Diagram

50" Deck for Pro-Master 300 Mower

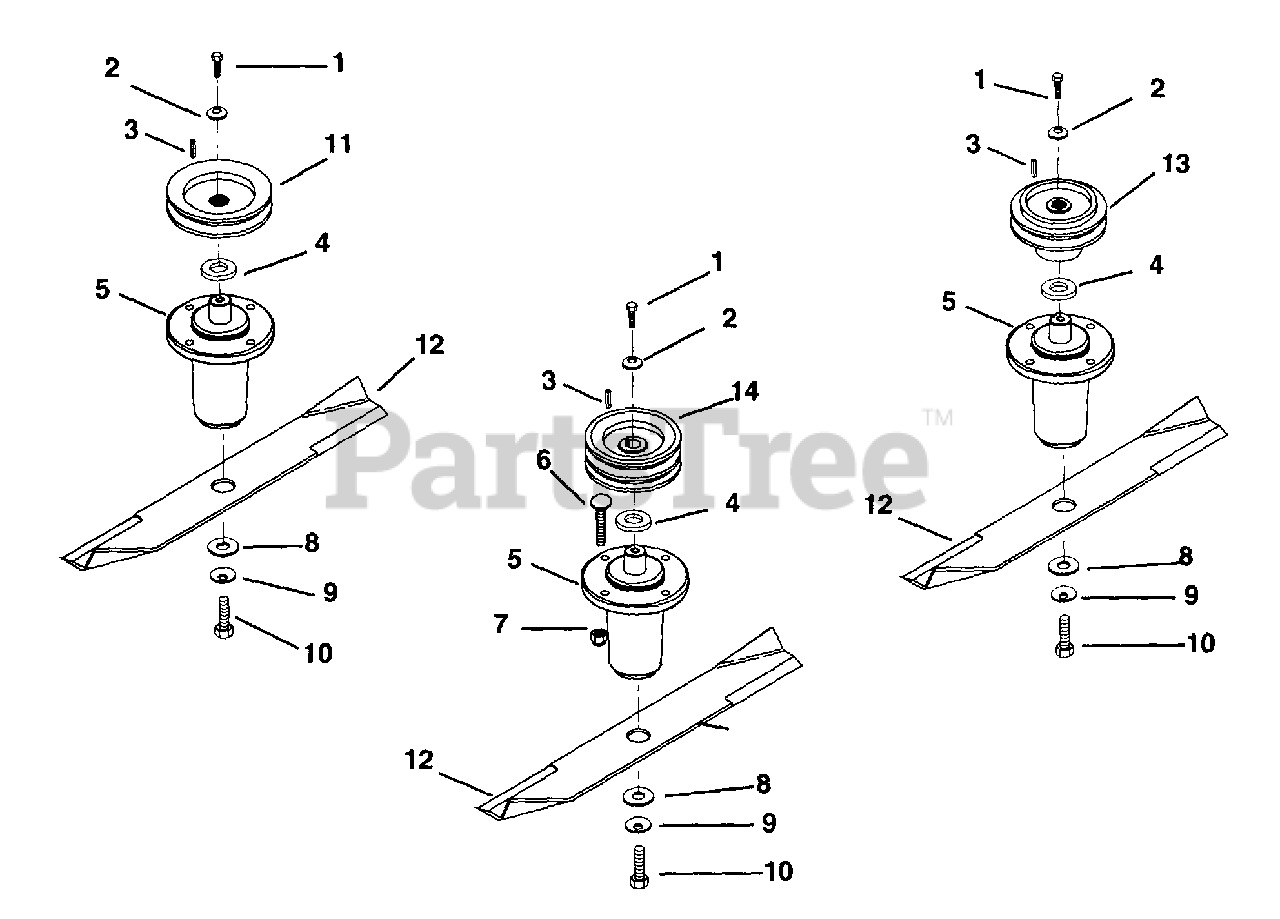

Mower Spindles Parts Diagram

  • Title

1

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 00597000

Washer-Cupped Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

4

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

5

Gravely 58803600

Maintenance Free Spindle Assembly

$262.99

$

In Stock, only 1 left!

0

6

062242

Bolt-Round Head Square Neck .38-16 x 1.50

$

$

Not available

7

065358

Nut-Locking-Nylon .38-16

$

$

Not available

8

Gravely 06435200

Washer-Flat Steel .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

10

Gravely 07053400

Bolt-Blade

$46.99

$

In Stock, Qty 7

0

11

Gravely 04904600

Weldment, Pulley-V 60" Mower 5.50 x 1.004 with Key

Note: (Model 037)

$

$

Not available

11

Gravely 04903900

Weldment, Pulley-V 50" Mower 3.50 x 1.004 with Key
(Superseded to 07333467)

Note: (Model 038)

$67.99

$

In Stock, only 1 left!

0

12

Gravely 08898900

Blade, 60" Mower Tungsten Carbide
(Superseded to 08979600)

Note: (Model 037)

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 08899600

Blade, 50" Mower Tungsten Carbide
(Superseded to 08779200)

Note: (Model 038)

$26.99

$

In Stock, Qty 5

0

13

Gravely 04904400

Weldment, Pulley-V 60" Mower 5.40X1.004 with caps

Note: (Model 037)

$156.99

$

Usually ships in 4-12 days

0

13

Gravely 04904300

Weldment, Pulley-V 50" Mower 4.75 x 1.004 with Caps

Note: (Model 038)

$

$

Not available

14

Gravely 04904100

Pulley-60" Mower Double V 2 x 5.660 x 1.004 with Key

Note: (Model 037)

$242.99

$

Usually ships in 4-12 days

0

14

Gravely 04904000

Pulley-50" Mower Double V 5.20 x 3.50 x 1.004 with Key

Note: (Model 038)

$

$

Not available
