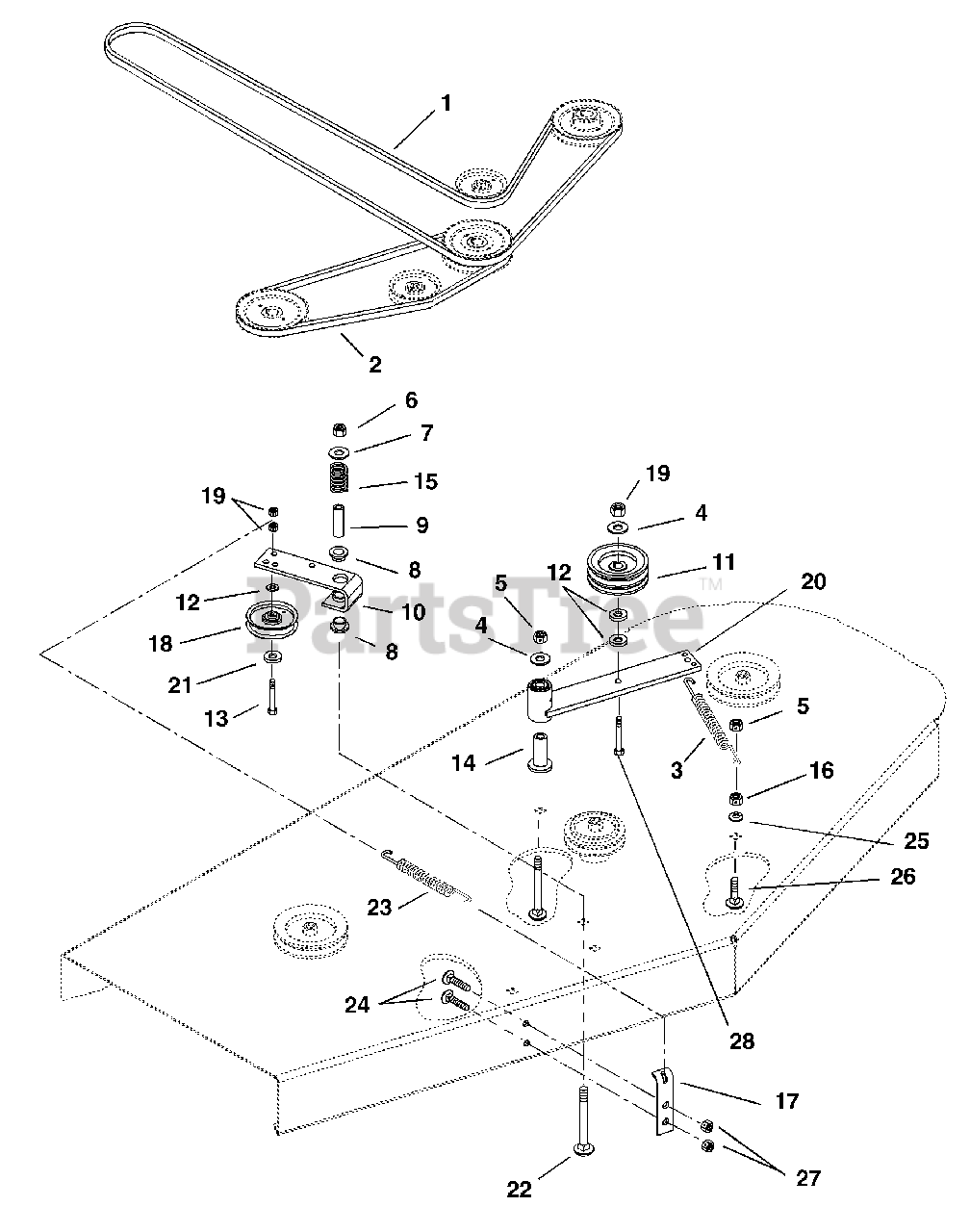

889038 - Gravely 50" Deck for Pro-Master 300 Mower (SN: 011000 - 012999) Mower Belts & Idlers Parts Diagram

50" Deck for Pro-Master 300 Mower

Mower Belts & Idlers Parts Diagram

  • Title

1

Gravely 07237100

V-Belt B-Section 60" Mower

$82.99

$

Usually ships in 4-12 days

0

1

Gravely 07237000

V-Belt B-Section 50" Mower

$71.99

$

Usually ships in 4-12 days

0

2

Gravely 052974

V-Belt A-Section 60" Mower
(Superseded to 07224300)

$42.99

$

In Stock, only 2 left!

0

2

Gravely 034944

V-Belt A-Section 50" Mower
(Superseded to 07220000)

$28.99

$

In Stock, only 1 left!

0

3

Gravely 08334100

Spring, Coil
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

4

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06535800

Nut-Locking .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06536300

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 06441000

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

8

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 034119

Spacer .560 x .750 x 2.437
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

10

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

11

Gravely 07327800

Idler-Flat 4 x .38 (2.00 W)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

12

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

13

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

14

Gravely 07053100

Bearing, Pedestal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

15

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

16

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 09089800

Anchor, Spring

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 07327600

Sheave, Idler

$38.99

$

In Stock, Qty 20+

0

19

Gravely 06529600

Nut-Locking-Ctr .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 09089000

Assembly, Idler Pivot Arm

$20.99

$

Usually ships in 4-12 days

0

21

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

22

Gravely 126803

Bolt-Round Head Square Neck .50-16 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

23

Gravely 08334700

Spring, Ext.
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

24

Gravely 05947000

Bolt-Round Head Square Neck .31-18 x .75 Gr. 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06308900

Washer-Locking .38 x .875 x .160

$

$

Not available

26

Gravely 06223800

Bolt-Round Head Square Neck .38-16 x 1.75
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 06529800

Nut-Locking-Ctr .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0
