889038 - Gravely 50" Deck for Pro-Master 300 Mower (SN: 000101 - 010999) 50" Mower Frame Parts Diagram

50" Deck for Pro-Master 300 Mower

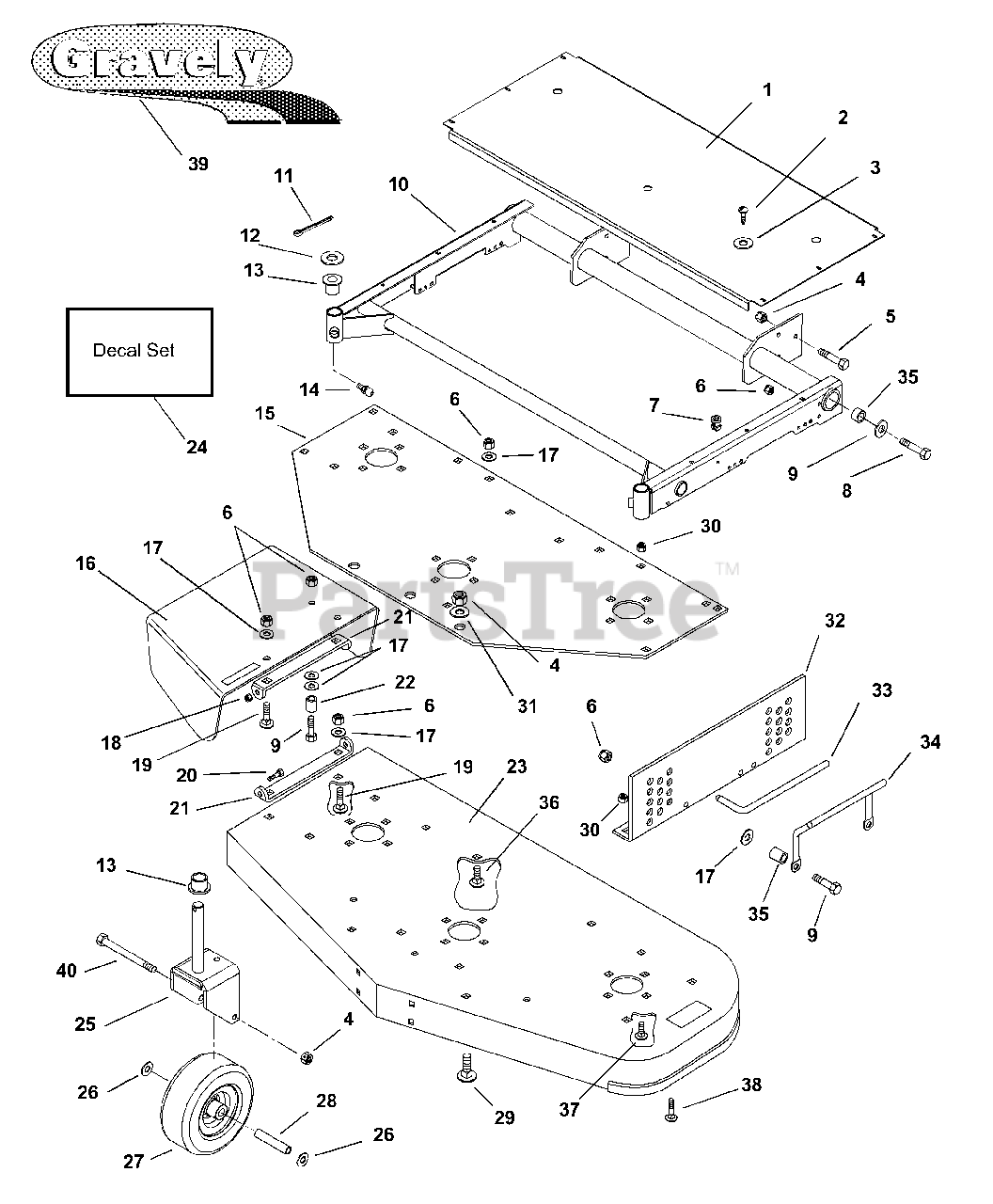

50" Mower Frame Parts Diagram

  • Title

1

Gravely 047555

Guard, 50"
(Superseded to 08960400)

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

Screw-Tapping, .25-20 x .50 Hex Slot Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 435507

Nut, Locking .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 180177

Bolt, Hex .50-13 x 1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 456004

Nut-Locking-Nylon .375-16 w/ Insr Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

9

Gravely 06441700

Washer-Flat-Steel .390 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

10

Gravely 09094153

Weldment, Mower Frame

$387.99

$

Usually ships in 4-12 days

0

11

Gravely 103409

Pin, Cotter .187 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 018355

Bushing-Flange 1.03 x 1.75 x .750 Nylon
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

14

Gravely 411027

Fitting, Lube .25-28
(Superseded to 07012600)

$

$

Not available

15

Gravely 052760

Plate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

16

Gravely 052805

Shield, Safety Ext. 50" Mower
(Superseded to 08850600)

$

$

Not available

17

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 419454

Nut, Locking .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 120915

Bolt, Round Head Square Neck .375-16 x 1.00

$

$

Not available

20

Gravely 180021

Bolt, Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

22

Gravely 038696

Stop, Chute
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

23

Gravely 052750

Weldment, 50" Mower Fabricated
(Superseded to 08849100)

$

$

Not available

24

Gravely 63611400

Decal, Set
(Superseded to 53610000)

$66.99

$

In Stock, only 1 left!

0

25

Gravely 09094053

Weldment, Caster Fork

$

$

Not available

26

Gravely 06413300

Washer-Flat-Steel .812 x 1.496 x .134

$5.99

$

In Stock, only 2 left!

0

27

Gravely 07147200

Wheel, Gauge 9 x 3.50
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

28

Gravely 09081500

Bearing, Gauge Wheel .750 x .532 x 3.97

$39.99

$

Usually ships in 4-12 days

0

29

Gravely 126475

Bolt, Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

30

Gravely 419455

Nut, Locking .312-18 x .625
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 415543

Washer-Flat-Steel 531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

32

09093953

Bracket, Mower Side Support Left Hand

$

$

Not available

32

09093853

Bracket, Mower Side Support Right Hand

$

$

Not available

33

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

34

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

35

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

36

Gravely 126227

Bolt, Carriage .375-16 x .75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

37

Gravely 126211

Bolt, Round Head Square Neck .312-18 x .625
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

38

Gravely 126358

Bolt, Carriage .312-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 043003

Decal, Gravely Logo
(Superseded to 05210700)

$

$

Not available

40

Gravely 05964100

Bolt, Hex .5-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0
