889037 - Gravely 60" Deck for Pro-Master 300 Mower (SN: 000101 - 010999) 60" Mower Frame Parts Diagram

60" Deck for Pro-Master 300 Mower

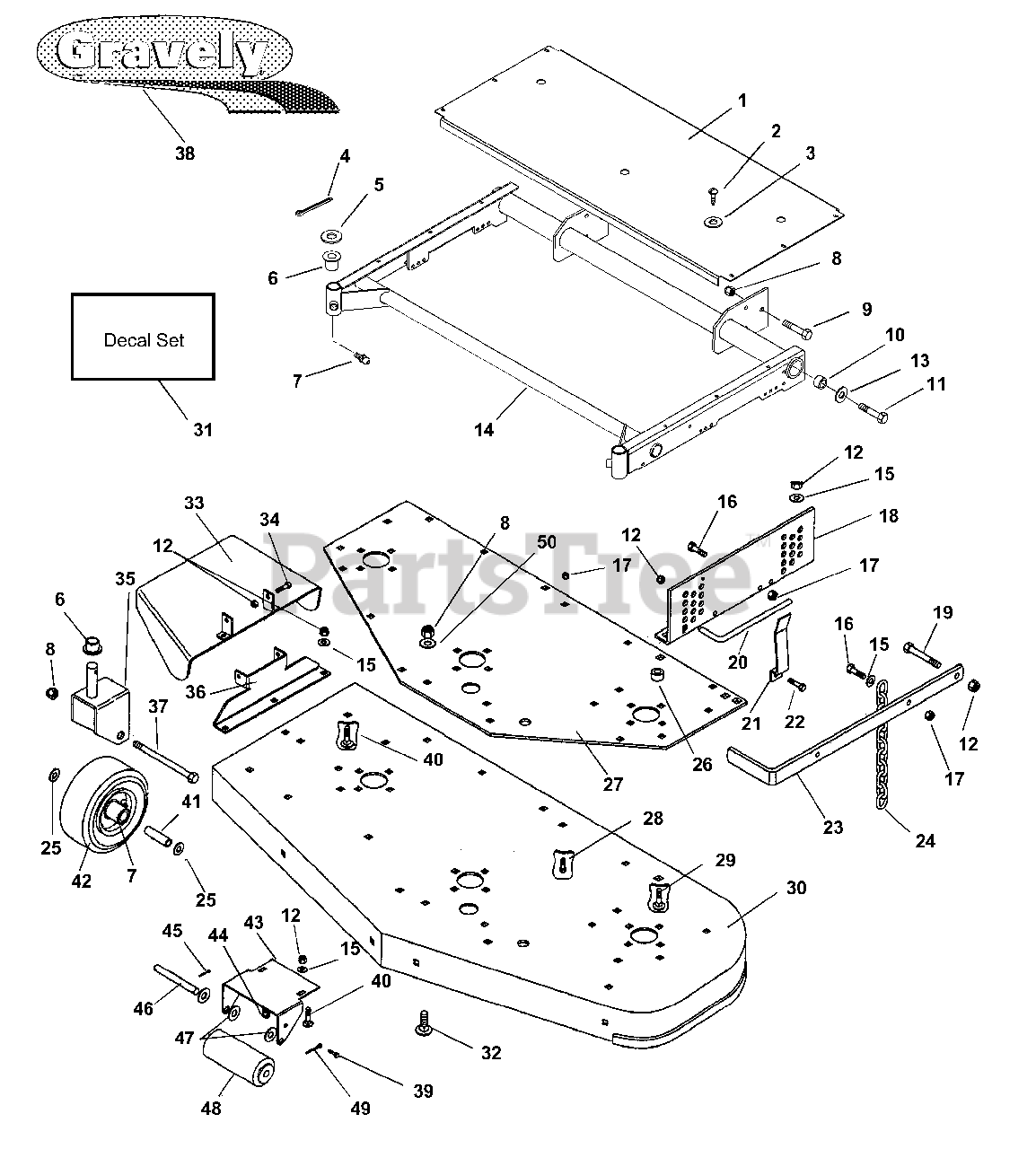

60" Mower Frame Parts Diagram

  • Title

1

Gravely 047551

Guard, Belt 60"
(Superseded to 08960500)

$147.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

Screw-Tap .250-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06712800

Pin-Cotter .188 x 1.500

$1.99

$

In Stock, only 2 left!

0

5

Gravely 019340

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

7

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

8

Gravely 06540600

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

12

Gravely 06535800

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 06441700

Washer-Flat-Steel .390 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

14

Gravely 09093753

Weldment, Mower Frame

$1162.99

$

Usually ships in 4-12 days

0

15

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06530200

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 08927953

Bracket, Mower Support Left Hand

$103.99

$

Usually ships in 4-12 days

0

18

Gravely 08927853

Bracket, Mower Support Right Hand

$103.99

$

Usually ships in 4-12 days

0

19

Gravely 034402

Bolt-Hex .38-16 x 2.0 Grade 5
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

20

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

21

Gravely 041201

Spring, Pin
(Superseded to 08876100)

$

$

Not available

22

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 035684

Bar, Lift
(Superseded to 08923700)

$

$

Not available

24

Gravely 038620

Chain, Height Adjuster
(Superseded to 08867400)

$

$

Not available

25

Gravely 06413300

Washer-Hardened .760 x1.25 x .094

$5.99

$

In Stock, only 2 left!

0

26

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

27

Gravely 052841

Plate, 60" Support
(Superseded to 09012900)

$

$

Not available

28

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 052786

Weldment, 60" Mower
(Superseded to 09011500)

$1392.99

$

Usually ships in 4-12 days

0

31

Gravely 63611400

Decal Set - Deck
(Superseded to 53610000)

$66.99

$

In Stock, only 1 left!

0

32

Gravely 06224600

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

33

Gravely 052808

Weldment, Discharge Chute
(Superseded to 09012600)

$

$

Not available

34

Gravely 05948700

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 09094053

Weldment, Caster Fork

$

$

Not available

36

Gravely 049649

Bracket, Discharge
(Superseded to 08990400)

$54.99

$

Usually ships in 4-12 days

0

37

Gravely 05964100

Bolt-Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

38

Gravely 07735800

Decal, Gravely Logo
(Superseded to 69201900)

$68.99

$

Usually ships in 4-12 days

0

39

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 09081500

Bearing, Gauge Wheel .750 x .532 x 3.97

$39.99

$

Usually ships in 4-12 days

0

42

Gravely 07147200

Wheel 9 x 3.50
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

43

Gravely 052796

Bracket, Roller Right Hand
(Superseded to 09012300)

$77.99

$

In Stock, only 2 left!

0

44

Gravely 06531000

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

45

Gravely 06713000

Pin-Cotter .25 x 1.00

$1.49

$

In Stock, only 2 left!

0

46

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

47

Gravely 06442800

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

48

Gravely 031390

Roller, Gauge
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

49

Gravely 06713100

Pin-Cotter .250 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 06441000

Washer-Flat-Steel .50 x 1.25x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0
