889036 - Gravely 72" Deck for Pro-Master 400 Mower (SN: 000101 & Above) Mower Mounting Parts Diagram

72" Deck for Pro-Master 400 Mower

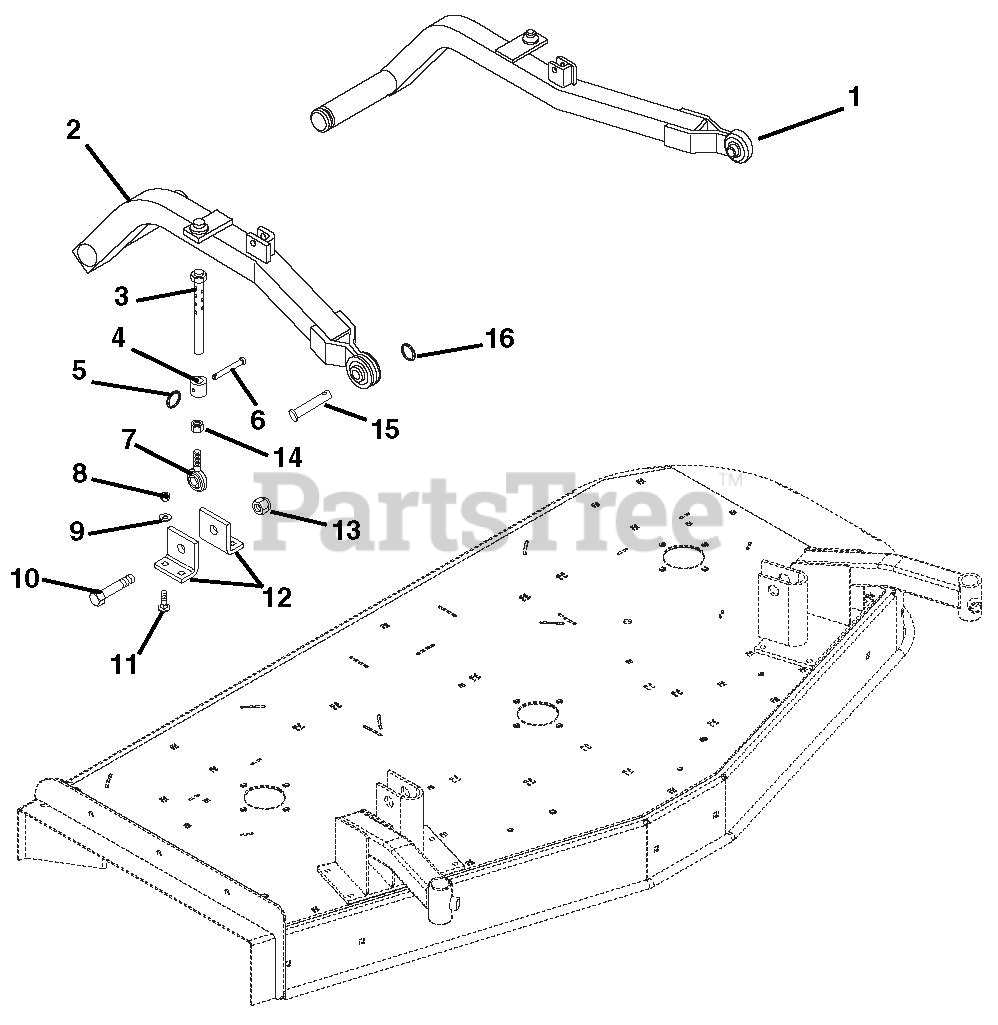

Mower Mounting Parts Diagram

  • Title

1

Gravely 044796

WLDMT,MOWER MTG ARM L.H.
(Superseded to 08956000)

$

$

Not available

2

Gravely 044795

WLDMT,MWR ARM (R.H.)
(Superseded to 08955900)

$

$

Not available

3

Gravely 045139

WLDMT,HEIGHT ADJUSTMENT
(Superseded to 08964100)

$341.99

$

Usually ships in 4-12 days

0

4

Gravely 045141

SPACER .765X1.25X.910 ST
(Superseded to 08964300)

$

$

Not available

5

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 047197

PIN-CLEV .31 X 2.62 GR5 YWZC
(Superseded to 06810900)

$

$

Not available

7

Gravely 035543

ROD,END
(Superseded to 08920953)

$62.99

$

Usually ships in 4-12 days

0

8

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05971500

BLT-HEX .75-10X3.50 GR5 YWZC

$

$

Not available

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

12

Gravely 044904

BRKT,DECK SUPPORT REAR
(Superseded to 08958300)

$

$

Not available

13

Gravely 06540800

NUT-LK-NYL .75-10 YWZC

$5.99

$

In Stock, Qty 6

0

14

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06815200

PIN-CLEV .875X3.00 YWZC

$

$

Not available

16

Gravely 05718000

RG-RTNG-EXT 2.240 X .180 YWZC

$

$

Not available
