889036 - Gravely 72" Deck for Pro-Master 400 Mower (SN: 000101 & Above) 72" Mower Deck - Rear Baffles Parts Diagram

72" Deck for Pro-Master 400 Mower

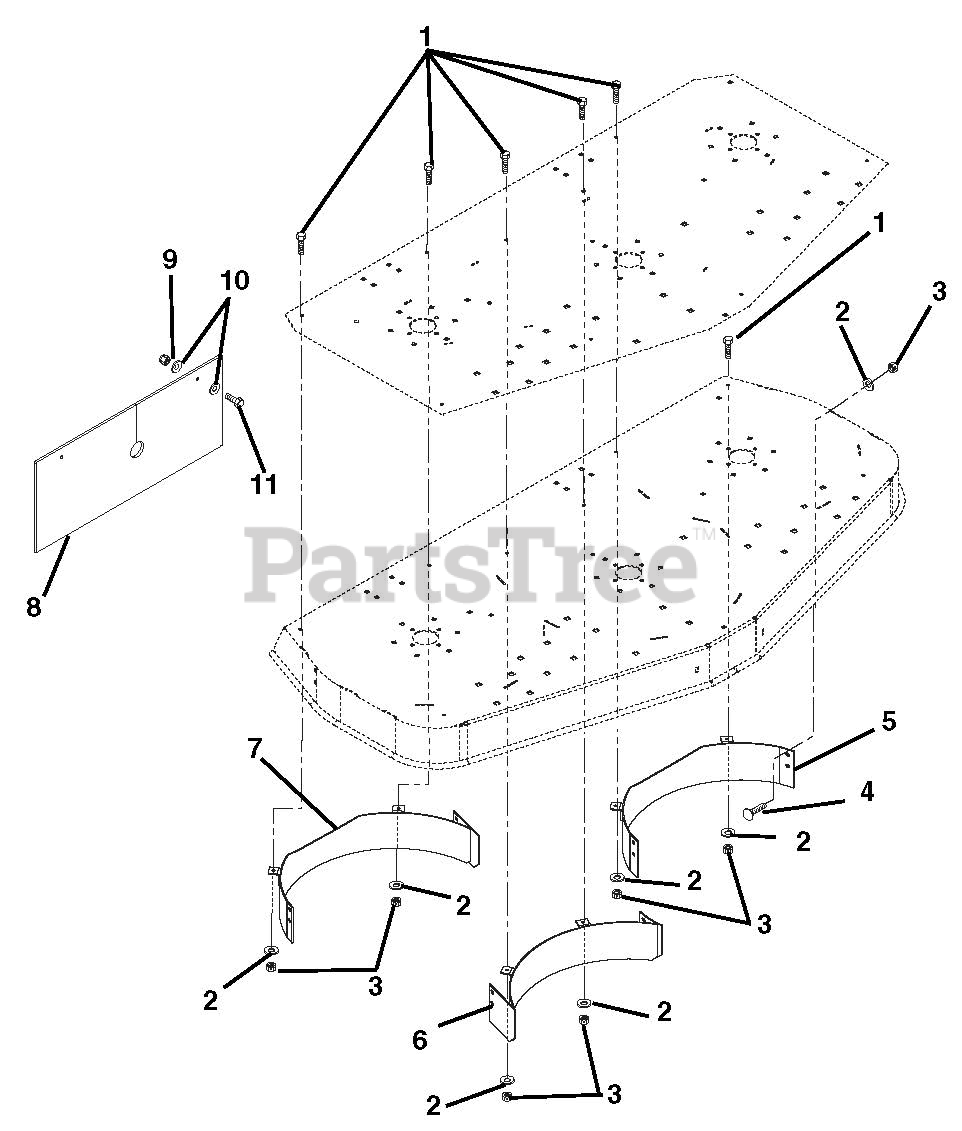

72" Mower Deck - Rear Baffles Parts Diagram

  • Title
1

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 09098151

BAFFLE, WELDMENT LEFT

$

$

Not available

6

Gravely 09098251

BAFFLE, WELDMENT CENTER

$

$

Not available

7

Gravely 09098351

BAFFLE, WELDMENT RIGHT

$

$

Not available

8

Gravely 050464

SHIELD,GRASS
(Superseded to 09033000)

$

$

Not available

9

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
