889034 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) Mower Deck - Belt Guards Parts Diagram

60" Deck for Pro-Master 400 Mower

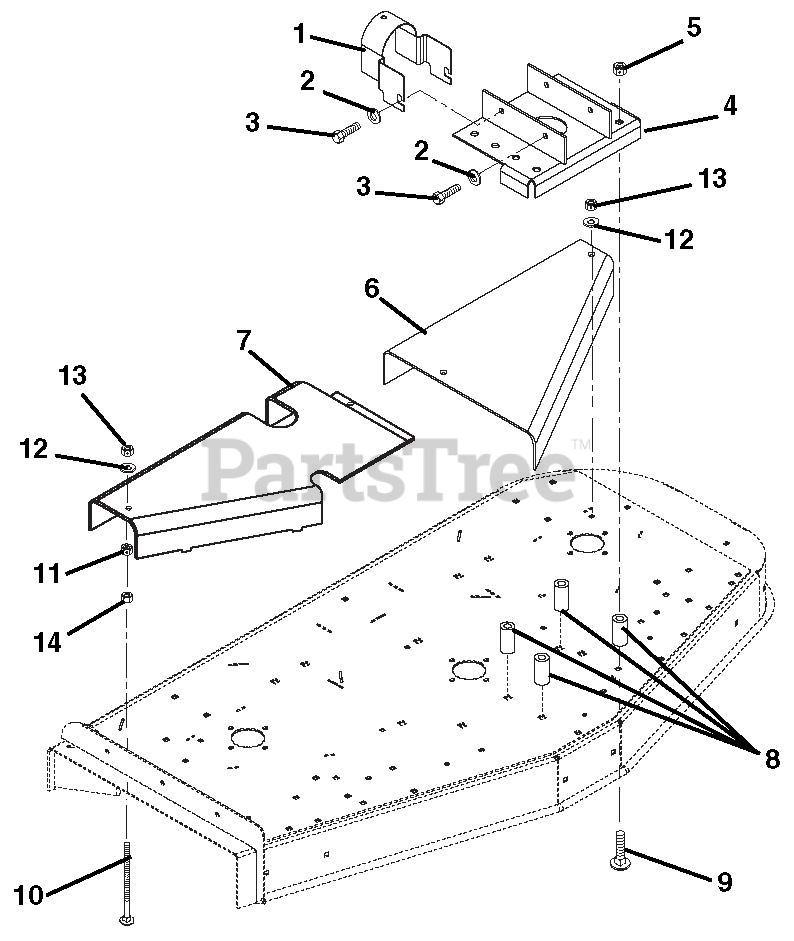

Mower Deck - Belt Guards Parts Diagram

  • Title
1

Gravely 09062600

SHIELD, U-JOINT

$

$

Not available

2

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09076400

WLDMT, GEARBOX MOUNT

$66.99

$

Usually ships in 4-12 days

0

5

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

Note: (34)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

Note: (035, 036)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 09095253

COVER, BELT L.H.

Note: (034)

$

$

Not available

6

Gravely 09096753

COVER, L.H. BELT

Note: (035, 036)

$

$

Not available

7

Gravely 09095153

COVER, BELT R.H.

Note: (034)

$

$

Not available

7

Gravely 09096853

COVER, R.H. BELT

Note: (035, 036)

$

$

Not available

8

Gravely 09095053

SPACER, .560X1.00X1.62

Note: (034)

$

$

Not available

8

Gravely 09095053

SPACER, .560X1.00X1.62

Note: (035, 036)

$

$

Not available

9

Gravely 06225700

BLT-RDHDSQNK .50-13X2.75 G5YZ
(Superseded to 06200327)

Note: (034)

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 06225700

BLT-RDHDSQNK .50-13X2.75 G5YZ
(Superseded to 06200327)

Note: (035, 036)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 06222500

BLT-RDHDSQNKFT.312-18X4.0 G5YZ

Note: (034)

$3.99

$

In Stock, only 3 left!

0

10

Gravely 06222500

BLT-RDHDSQNKFT.312-18X4.0 G5YZ

Note: (035, 036)

$3.99

$

In Stock, only 3 left!

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (034)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (035, 036)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (034)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (035, 036)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (034)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (035, 036)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

Note: (034)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

Note: (035, 036)

$0.99

$

In Stock, Qty 20+

0
