889034 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) 60" Gauge Wheels, Roller And Height Adjustments Parts Diagram

60" Deck for Pro-Master 400 Mower

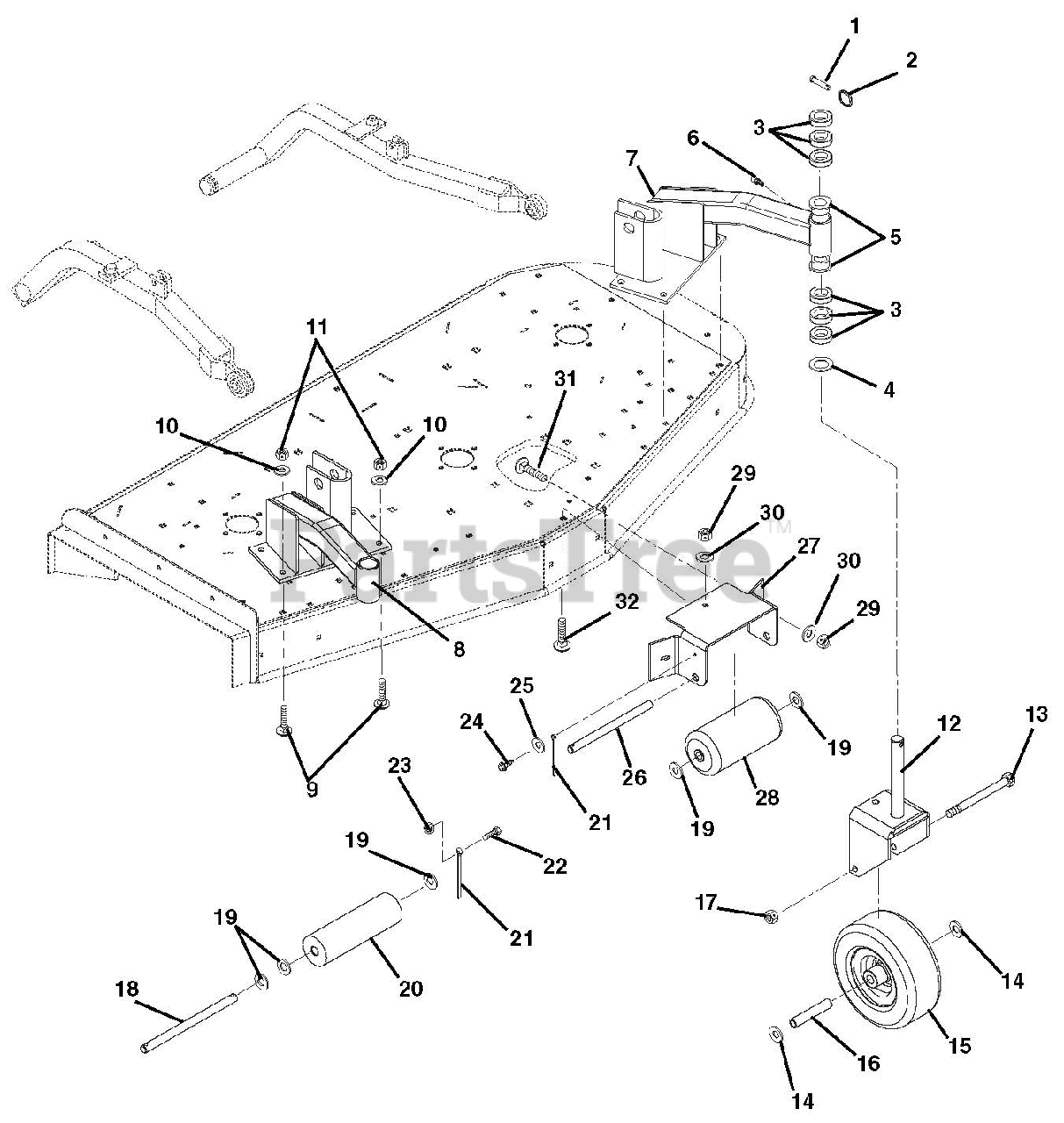

60" Gauge Wheels, Roller And Height Adjustments Parts Diagram

  • Title

1

Gravely 047197

Pin-Clevis .31 x 2.62 Grade 5
(Superseded to 06810900)

$

$

Not available

2

Gravely 05718100

Ring-Retaining-External 1.062 x 1.25

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 045138

Bushing-Sleeve 1.04 x 1.75 x .500
(Superseded to 05519553)

$17.99

$

In Stock, only 3 left!

0

4

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75 Nylon
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

6

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

7

Gravely 04915053

Weldment, Wheel Mount - Left Hand

$131.99

$

Usually ships in 4-12 days

0

8

Gravely 04914953

Weldment, Wheel Monut - Right Hand

$131.99

$

Usually ships in 4-12 days

0

9

Gravely 06223100

Bolt-Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

10

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 09095753

Weldment, Caster Fork

$

$

Not available

13

Gravely 05961800

Bolt-Hex .50-13 x 6.00 Grade 5

$

$

Not available

14

Gravely 06413300

Washer-Hardened Thrust .760 x 1.25 x .094

$5.99

$

In Stock, only 2 left!

0

15

Gravely 07151600

Tire, 11.00 x 4.00

$113.99

$

In Stock, only 1 left!

0

16

Gravely 09095800

Spacer, .750 x .532 x 4.47

$

$

Not available

17

Gravely 06536300

Nut-Locking-Center .50-16
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

19

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 031390

Roller, Gauge
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

21

Gravely 06713100

Pin-Cotter .25 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 07412000

Screw-Self Tapping .25-20 x .50 x Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06437300

Washer-Flat-Steel
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 09075300

Pin

$38.99

$

In Stock, only 1 left!

0

27

Gravely 09094953

Bracket, Anti-Scalp Roller

$100.99

$

In Stock, only 1 left!

0

28

Gravely 09078100

Roller

$47.99

$

In Stock, only 1 left!

0

29

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

32

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0
