889033 - Gravely Roll-Over Protection for Pro-Master 400 Mower (SN: 000101 & Above) ROLL-OVER PROTECTION KIT Parts Diagram

Roll-Over Protection for Pro-Master 400 Mower

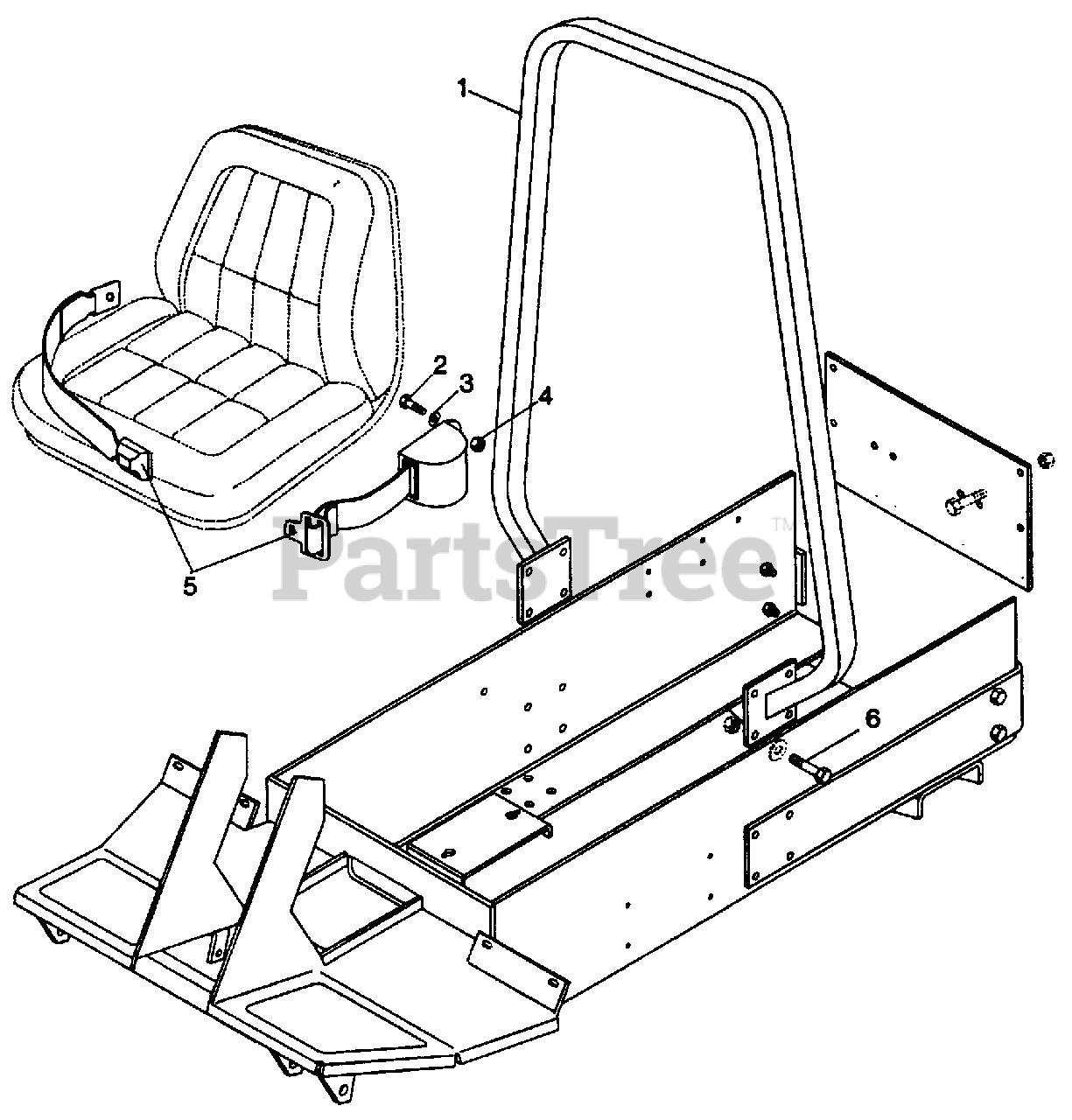

ROLL-OVER PROTECTION KIT Parts Diagram

  • Title
1

Gravely 090363

WELDMENT, ROLLOVER BAR
(Superseded to 09036300)

$284.99

$

Usually ships in 4-12 days

0

2

Gravely 180145

BOLT, HEX 7/16-14X1.00
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 039413

NUT, LOCK 7/16-14
(Superseded to 06527500)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 043208

ASSEMBLY, SEAT BELT
(Superseded to 08945400)

$89.99

$

Usually ships in 4-12 days

0

6

Gravely 059460

BLT-HEX .50-13 X 1.75 PL GR 8
(Superseded to 05946000)

$

$

Not available
