889028 - Gravely 60" Deck for Gear Drive Pro-Master Mower (SN: 000101 & Above) MOWER FRAME Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

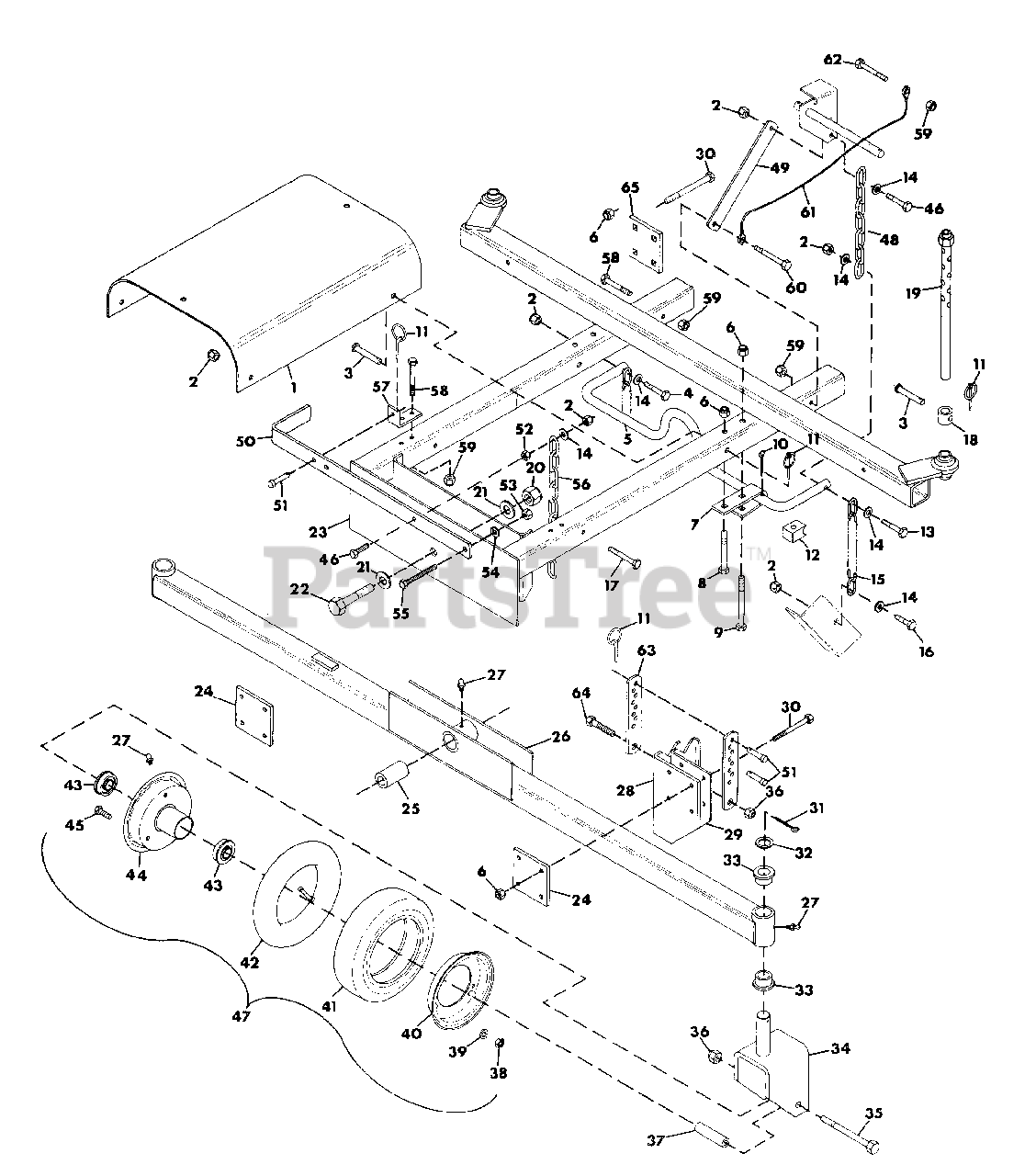

MOWER FRAME Parts Diagram

  • Title
1

Gravely 035447

GUARD, PTO SHAFT
(Superseded to 08915900)

$

$

Not available

2

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 022113

PIN, CLEVIS 3/8X2.62
(Superseded to 06811100)

$

$

Not available

4

Gravely 180083

BOLT, HEX 5/16-18X1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

5

Gravely 035656

ARM, PIVOT
(Superseded to 09027800)

$41.99

$

Usually ships in 4-12 days

0

6

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 011264

BRACKET, AXLE SUPPORT
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 180138

BOLT, HEX 3/8-16X3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 191163

BOLT, HEX 3/8-16X4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 120123

PIN, COTTER 1/8X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 023468

KLIK PIN
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 011260

STOP, NYLON
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

13

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

14

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 035663

CHAIN, LIFT
(Superseded to 00921200)

$

$

Not available

16

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 180091

BOLT, HEX 5/16-18X2.50
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 035647

SPACER, HEIGHT ADJUSTMENT
(Superseded to 08922900)

$

$

Not available

19

Gravely 035545

WELDMENT, HEIGHT ADJUSTMENT
(Superseded to 08921100)

$

$

Not available

20

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

21

Gravely 035640

WASHER, FLAT .812X.469X.130
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

22

Gravely 271781

BOLT, HEX 3/4-10X4.50
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

23

Gravely 038594

WELDMENT, MOWER FRAME
(Superseded to 08953800)

$

$

Not available

24

Gravely 035497

PLATE, ADJUSTMENT CLAMP
(Superseded to 08737853)

$

$

Not available

25

Gravely 034920

TUBE, PIVOT
(Superseded to 08911800)

$

$

Not available

26

Gravely 035407

WELDMENT, AXLE
(Superseded to 21239200)

$

$

Not available

27

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

28

Gravely 035698

PLATE, HEIGHT ADJUSTMENT-L.H.
(Superseded to 08924500)

$

$

Not available

28

Gravely 035697

PLATE, HEIGHT ADJUSTMENT-R.H.
(Superseded to 08924400)

$

$

Not available

29

Gravely 035696

PLATE, HEIGHT ADJUSTMENT-L.H.
(Superseded to 08924300)

$

$

Not available

29

Gravely 035695

PLATE, HEIGHT ADJUSTMENT-R.H.
(Superseded to 08924200)

$

$

Not available

30

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

31

Gravely 137253

PIN, COTTER 3/16X1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

34

Gravely 037811

WELDMENT, CASTER FORK
(Superseded to 21244500)

$

$

Not available

35

Gravely 433163

BOLT, HEX 1/2-13X5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

37

Gravely 011950

BUSHING, WHEEL .520X.750X3.312
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

38

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

39

Gravely 131099

WASHER, LOCK 3/8 SP HEAVEY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

40

Gravely 037824

WHEEL, HALF PLAIN
(Superseded to 20637800)

$

$

Not available

41

Gravely 037827

TIRE, GAUGE WHEEL
(Superseded to 20638100)

$

$

Not available

42

Gravely 037826

TUBE, INNER
(Superseded to 20638000)

$43.99

$

In Stock, only 2 left!

0

43

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

44

Gravely 037825

WHEEL, HALF WITH TUBE
(Superseded to 20637900)

$

$

Not available

45

Gravely 181635

BOLT, HEX 3/8-24X.75
(Superseded to 05962600)

$

$

Not available

46

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

47

Gravely 037797

WHEEL, GAUGE
(Superseded to 20636900)

$

$

Not available

48

Gravely 037041

CHAIN, LIFT
(Superseded to 09031400)

$

$

Not available

49

Gravely 035671

BAR, DECK LIFT
(Superseded to 20626500)

$

$

Not available

50

Gravely 035684

BAR, LIFT
(Superseded to 08923700)

$

$

Not available

51

Gravely 035683

PIN, CLEVIS
(Superseded to 06810500)

$

$

Not available

52

Gravely 124824

NUT, JAM 5/16-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

53

Gravely 124829

NUT, JAM 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

54

Gravely 120382

WASHER, LOCK 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

55

Gravely 014718

BOLT, 3/8-16X3 SPECIAL
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

56

Gravely 038255

CHAIN, HEIGHT ADJ.
(Superseded to 09031600)

$

$

Not available

57

Gravely 035685

BRACKET, LIFT PIVOT
(Superseded to 08923800)

$

$

Not available

58

Gravely 181623

BOLT, 5/16-24X2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

59

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

60

Gravely 189323

BOLT, 5/16-24X3.5
(Superseded to 05938700)

$

$

Not available

61

Gravely 035517

CABLE, STOP
(Superseded to 06924900)

$

$

Not available

62

Gravely 181621

BOLT, 5/16-24X2.25
(Superseded to 05937100)

$

$

Not available

63

Gravely 035686

STRAP, ADJUSTMENT
(Superseded to 08923900)

$

$

Not available

64

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

65

Gravely 035628

PLATE, ATTACHMENT CLAMP
(Superseded to 08737953)

$

$

Not available

NS

Gravely 038549

DECAL, PRO MASTER-60
(Superseded to 05209800)

$

$

Not available
