889013 - Gravely Pro-Master Series Grass Bagger for PM Gear (SN: 000101 & Above) BLOWER Parts Diagram

Pro-Master Series Grass Bagger for PM Gear

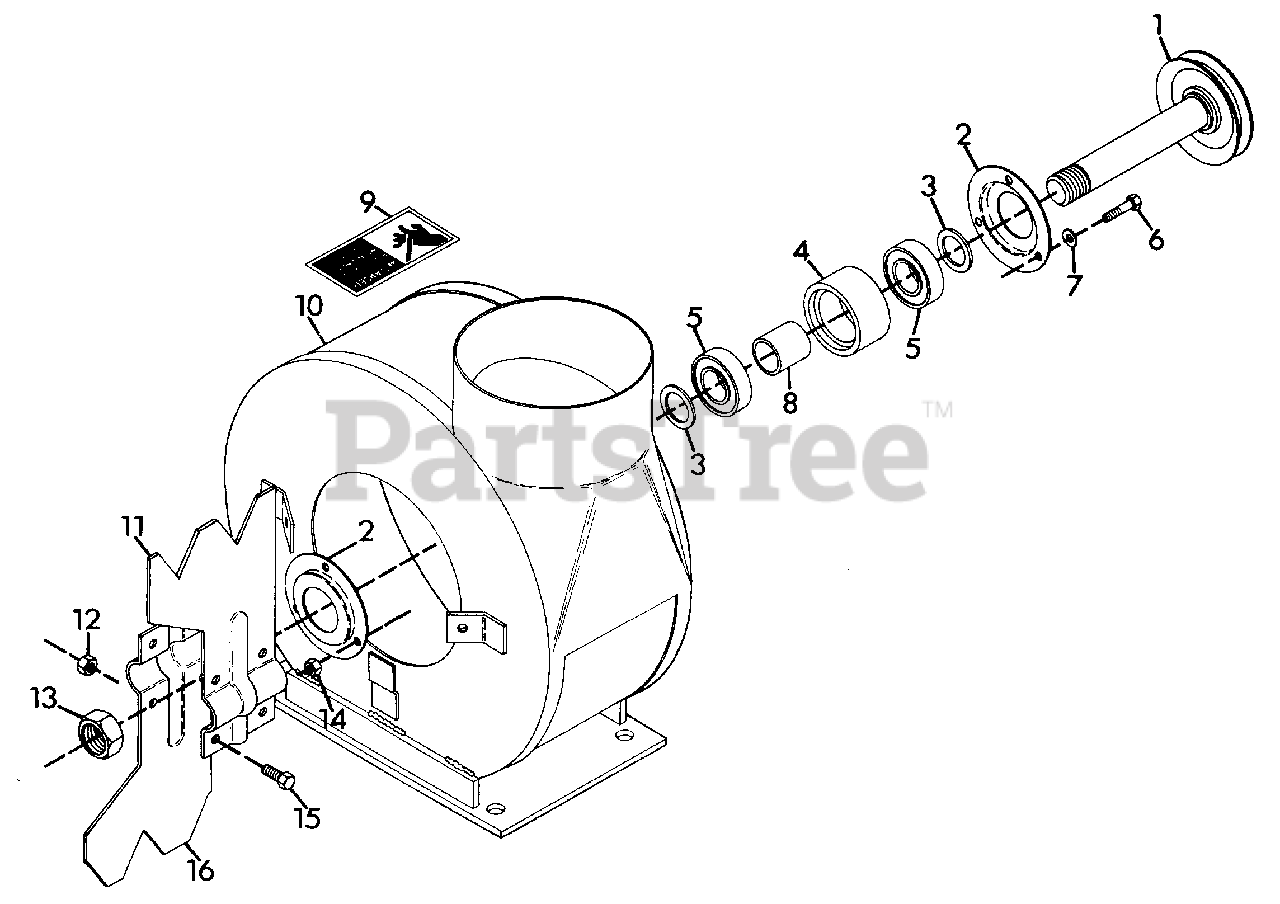

BLOWER Parts Diagram

  • Title

1

Gravely 039027

WELDMENT, SPINDLE
(Superseded to 03422100)

$349.99

$

Usually ships in 4-12 days

0

2

Gravely 036874

BEARING, FLANGE
(Superseded to 03185900)

$22.99

$

In Stock, only 3 left!

0

3

Gravely 039022

WASHER, 1.000/1.031X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 039025

HOUSING
(Superseded to 03421800)

$206.99

$

In Stock, only 1 left!

0

5

Gravely 039023

BEARING, BALL
(Superseded to 05416000)

$14.99

$

In Stock, Qty 7

0

6

Gravely 180044

BOLT, HEX 1/4-20X2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 039026

WASHER, .263/.273X.562X.046
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 039024

SPACER
(Superseded to 03421900)

$42.99

$

Usually ships in 4-12 days

0

9

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

10

Gravely 042551

HOUSING, FAN
(Superseded to 58700400)

$

$

Not available

11

Gravely 039020

BLADE, FAN
(Superseded to 03021500)

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 039019

NUT, HEX 1-14 JAM LOCK
(Superseded to 06512000)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 180075

BOLT, HEX 5/16-18X.625
(Superseded to 05901832)

$

$

Not available

16

Gravely 039018

BLADE, FAN
(Superseded to 03422000)

$

$

Not available
