889003 - Gravely 60" Fab Deck for Pro-Master 300 Mower (SN: 003045 & Above) MOWER FRAME Parts Diagram

60" Fab Deck for Pro-Master 300 Mower

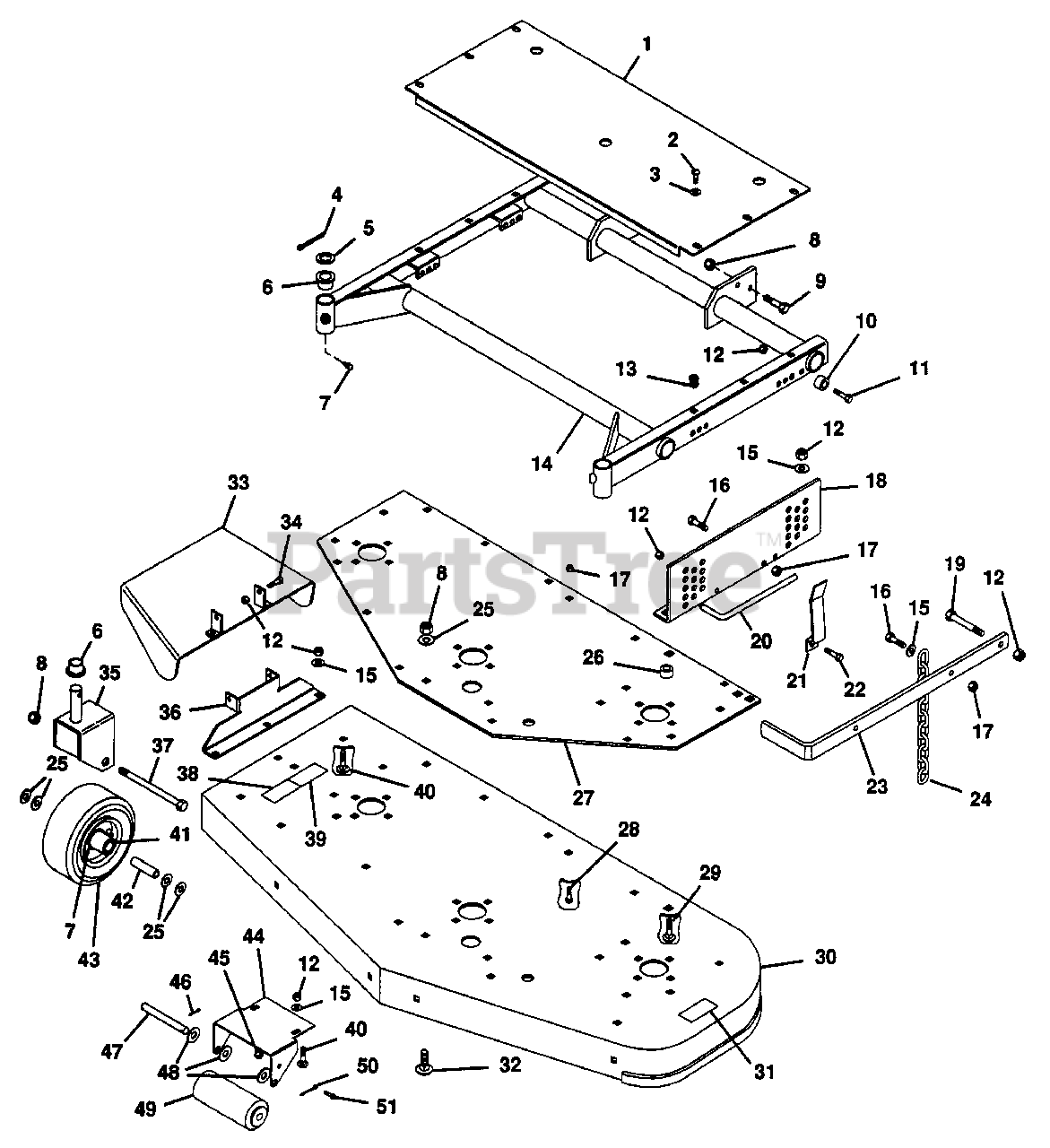

MOWER FRAME Parts Diagram

  • Title

1

Gravely 047551

Guard, Belt 60" PM Hand Series
(Superseded to 08960500)

$147.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

Knob-Steering Lock
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 137253

Pin-Cotter .188 x 1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 019340

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 2 left!

0

6

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

7

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

8

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 180177

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

12

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 050979

Weldment, Mower Frame
(Superseded to 59002500)

$

$

Not available

15

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 038516

Bracket, Mower Support Left Hand
(Superseded to 08927953)

$103.99

$

Usually ships in 4-12 days

0

18

Gravely 038515

Bracket, Mower Support Right Hand
(Superseded to 08927853)

$103.99

$

Usually ships in 4-12 days

0

19

Gravely 034402

Bolt-Hex .38-16 x 2.0 Grade 5
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

20

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

21

Gravely 041201

Spring, Pin
(Superseded to 08876100)

$

$

Not available

22

Gravely 180121

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 035684

Bar, Lift
(Superseded to 08923700)

$

$

Not available

24

Gravely 038620

Chain, Height Adjuster
(Superseded to 08867400)

$

$

Not available

25

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

26

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

27

Gravely 052841

Plate, 60" Support
(Superseded to 09012900)

$

$

Not available

28

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 126402

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 052786

Weldment, 60" Mower
(Superseded to 09011500)

$1392.99

$

Usually ships in 4-12 days

0

31

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

32

Gravely 126475

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

33

Gravely 052808

Weldment, Discharge Chute
(Superseded to 09012600)

$

$

Not available

34

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 050973

Weldment, Caster Fork
(Superseded to 09066400)

$193.99

$

In Stock, only 1 left!

0

36

Gravely 049649

Bracket, Discharge
(Superseded to 08990400)

$54.99

$

Usually ships in 4-12 days

0

37

Gravely 445608

Bolt-Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

38

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

39

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

40

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

41

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

42

Gravely 011950

Spacer .532 x .748 x 3.34
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

43

Gravely 045205

Wheel 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

44

Gravely 052796

Bracket, Roller Right Hand
(Superseded to 09012300)

$77.99

$

In Stock, only 2 left!

0

45

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

46

Gravely 179128

Pin-Cotter .25 x 1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

47

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

48

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

49

Gravely 031390

Roller, Gage
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

50

Gravely 103422

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

51

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

Gravely 043003

Decal, Gravely Logo
(Superseded to 05210700)

Note: NS

$

$

Not available

Gravely 049720

Width of Cut Decal
(Superseded to 07852100)

Note: NS

$9.99

$

Usually ships in 4-12 days

0

Gravely 035127

Decal, Caution
(Superseded to 07893700)

Note: NS

$17.99

$

Usually ships in 4-12 days

0
