889002 - Gravely 50" Fab Deck for Pro-Master 300 Mower (SN: 000442 & Above) MOWER DRIVE Parts Diagram

50" Fab Deck for Pro-Master 300 Mower

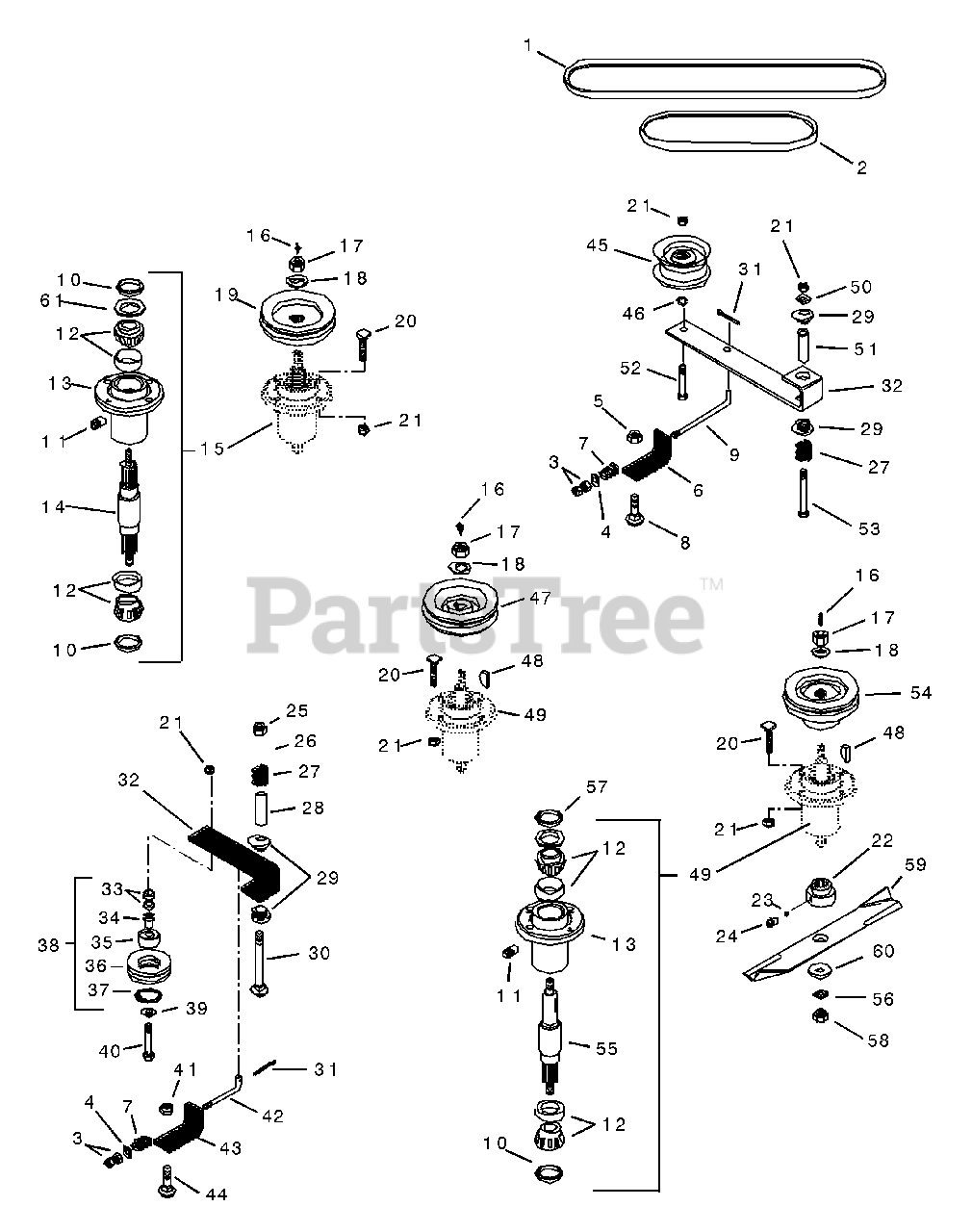

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 051925

V-Belt
(Superseded to 07223500)

$59.99

$

Usually ships in 4-12 days

0

2

Gravely 034944

Belt, Mower A44
(Superseded to 07220000)

$28.99

$

In Stock, only 1 left!

0

3

Gravely 120369

Nut-Hex .375-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 419455

Nut-Locking-Nylon .312-18 w/Insr Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09043700

Bracket, Belt Tensioner

$

$

Not available

7

Gravely 011779

Spring-Compression .125 x .781 x 1.00 338 lbs/in
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

8

Gravely 126358

Bolt, Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 021111

Rod, Idler 50 Inch Mower
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

10

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, only 2 left!

0

11

Gravely 08896800

Relief Fitting, Grease

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 038199

Assembly, Bearing Cup and Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 08894500

Bearing Housing

$

$

Not available

14

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

15

Gravely 58801800

Service Kit, Spindle Assembly
(Superseded to 58803600)

Note: (Contains Items 10-14)

$262.99

$

In Stock, only 1 left!

0

16

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .135
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 08894900

Sheave
(Superseded to 58803500)

$

$

Not available

20

Gravely 126406

Bolt, Round Head Square Neck .31-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 456004

Nut-Locking-Nylon .375-16 w/Insr Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 08886500

Hub

$64.99

$

Usually ships in 4-12 days

0

23

Gravely 03191400

Plug

$6.49

$

Usually ships in 4-12 days

0

24

Gravely 06005400

Screw-Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 414074

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

27

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

28

Gravely 034119

Spacer, .560 x .750 x 2.437 Steel
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

29

Gravely 010174

Bushing-Flange .764 x 1.47 x .560 Nylon
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 126803

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

31

Gravely 121224

Pin, Cotter .09 x 1.00

$0.99

$

Usually ships in 4-12 days

0

32

Gravely 08883100

Arm, Idler Pivot

$

$

Not available

33

Gravely 014672

Bushing .406 x .750 .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

34

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$

$

Not available

36

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

37

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

Note: (Contains Items 34-37)

$242.99

$

Usually ships in 4-12 days

0

39

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

40

Gravely 180130

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

41

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

43

Gravely 038713

Bracket, Tensioner
(Superseded to 08928800)

$

$

Not available

44

Gravely 120917

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

45

Gravely 034286

Bracket, Belt Tensioner
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

46

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

47

Gravely 08896600

Sheave

$

$

Not available

48

Gravely 124553

Key, Woodruff .25 x 1 Hard #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

49

Gravely 58801700

Service Kit, Spindle Assembly
(Superseded to 58803600)

Note: (Contains Items 10-13, 55, 57)

$262.99

$

In Stock, only 1 left!

0

50

Gravely 120388

Washer-Flat-Steel .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 034938

Bushing, Steel .437 x .750 x 2.44
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

52

Gravely 180132

Bolt-Hex .28-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

53

Gravely 189304

Bot-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

54

Gravely 08895000

Sheave
(Superseded to 08895500)

$

$

Not available

55

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

56

Gravely 06300700

Washer-Lock .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

57

Gravely 05611400

Seal 1.987 x 1.500 x .313

$15.99

$

In Stock, only 1 left!

0

58

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

59

11234

Blade

$

$

Not available

60

Gravely 06435200

Washer
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

61

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0
