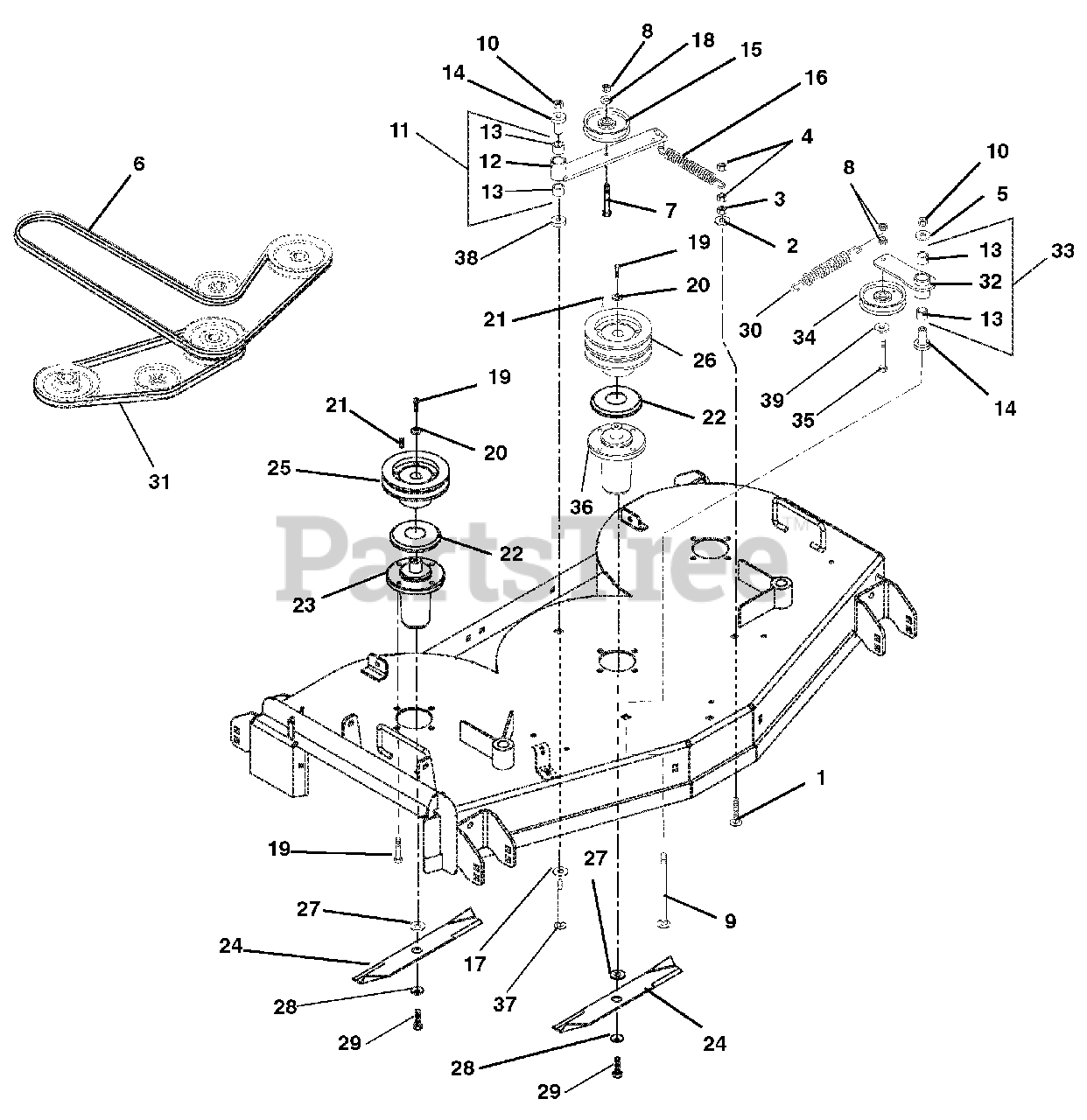

888308 - Ariens 48" Side-Discharge Deck (SN: 000101 & Above) Belts, Idlers and Blades Parts Diagram

48" Side-Discharge Deck

Belts, Idlers and Blades Parts Diagram

  • Title

1

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

2

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 07240200

V-BELT, HB-WRAPPED

$80.99

$

In Stock, only 1 left!

0

7

Ariens 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

8

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06200003

@BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 4 left!

0

10

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

11

Ariens 09286500

ASSEMBLY - IDLER PIVOT ARM

Note: (Center)

$164.99

$

In Stock, only 1 left!

0

12

Ariens 09286451

WMT - IDLER PIVOT ARM

$170.99

$

Usually ships in 4-12 days

0

13

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, only 4 left!

0

14

Ariens 07000031

BEARING, PEDESTAL

$80.99

$

In Stock, only 1 left!

0

15

Ariens 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

16

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

17

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Ariens 00440700

SEAL, IDLER BEARING

$77.99

$

In Stock, Qty 7

0

19

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

22

Ariens 09238200

SLINGER, DUST

$17.99

$

In Stock, only 4 left!

0

23

Ariens 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$262.99

$

Usually ships in 4-12 days

0

24

Ariens 00273000

BLADE, MULCH 16.25
(Superseded to 05244100)

$27.99

$

In Stock, Qty 20+

0

25

Ariens 09242500

WELDMENT, SPINDLE SHEAVE 5.00
(Superseded to 07331067)

$119.99

$

In Stock, only 1 left!

0

26

Ariens 09253200

SHEAVE, DOUBLE (5.25")

Note: (5.25)

$62.99

$

Usually ships in 4-12 days

0

27

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 4 left!

0

28

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

29

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Ariens 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

31

Ariens 07202900

V-BELT, 5L-RAW EDGE

$48.99

$

In Stock, only 1 left!

0

32

Ariens 00345600

WMT, IDLER PIVOT ARM

$51.99

$

In Stock, only 4 left!

0

33

Ariens 00349100

ASM, IDLER PIVOT ARM

Note: (Contains Items 13 and 32)

$63.99

$

In Stock, only 2 left!

0

34

Ariens 07327600

V-IDLER, 4.00X.38

$38.99

$

In Stock, Qty 20+

0

35

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

36

Ariens 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

37

Ariens 06218600

@BLT-RDHDSQNK .50-13X3.75 G5YZ

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 6

0

39

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
