888303 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 000101 & Above) MOWER DECK Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

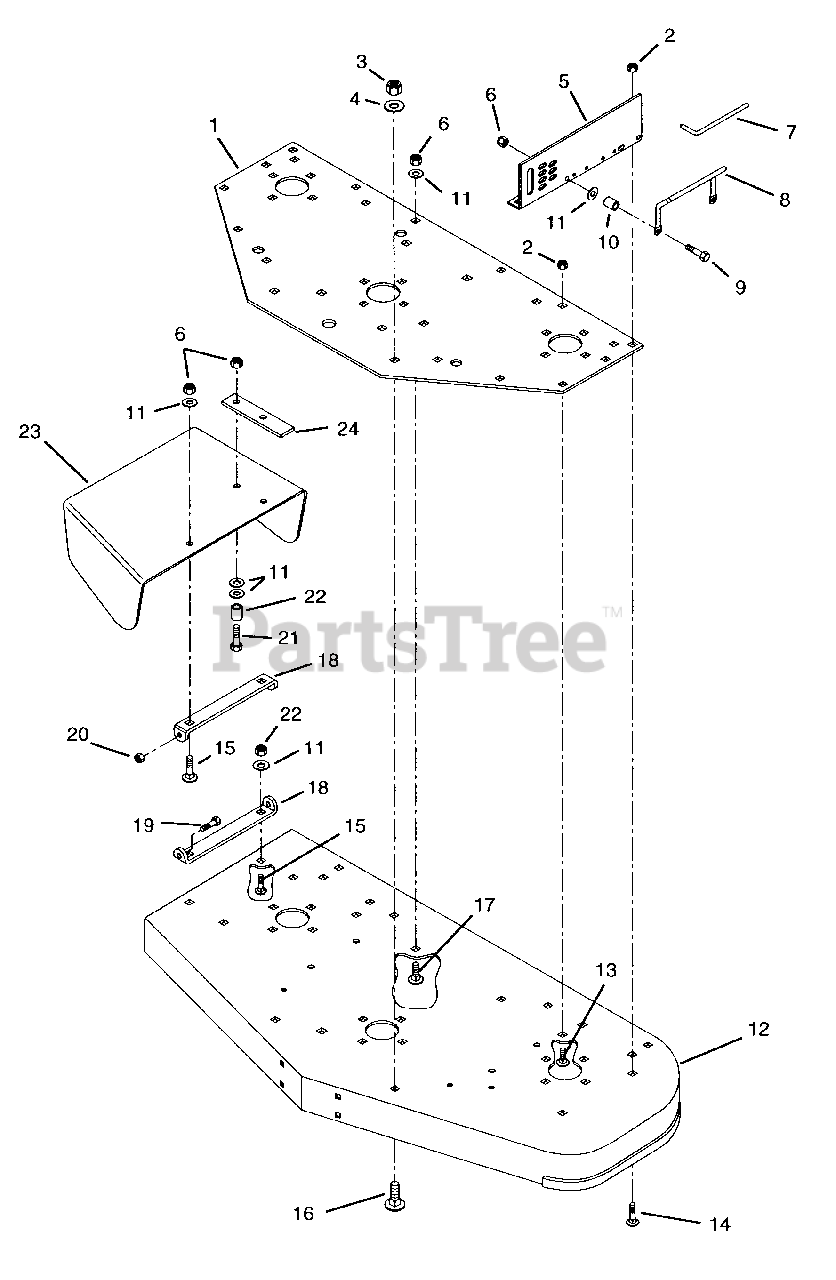

MOWER DECK Parts Diagram

  • Title

1

Gravely 052760

Pnlate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

2

Gravely 419455

Nut-Locking-Nylon .312-18 w/Insr Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 434507

Nut-Locking-Nylon .50-13 Grade 5

$

$

Not available

4

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

5

Gravely 08852700

Bracket, Mower Side Support Left Hand

$

$

Not available

Gravely 08852600

Bracket, Mower Side Support Right Hand

$

$

Not available

6

Gravely 456004

Nut-Locking-Nylon .375-16 w/Insr Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

9

Gravely 180128

Bolt-Hex .28-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

11

Gravely 120394

Washer-Flat-Steel .406 x.812 .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 052750

Weldment, 50" Mower Fabricated
(Superseded to 08849100)

$

$

Not available

13

Gravely 126211

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 126358

Bolt-Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

16

Gravely 126475

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

17

Gravely 126227

Bolt-Round Head Square Neck .375-16 x .75 Grade 1
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

18

Gravely 08827653

Bracket, Chute

$

$

Not available

19

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 103422

Nut-Locking-Nylon .250-20 w/Insr Grade 2
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

22

Gravely 038696

Bushing-Sleeve .407 x .812 x .065
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

23

Gravely 052805

Shield, Safety Extension 50" Mower
(Superseded to 08850600)

$

$

Not available

24

Gravely 08881500

Limiter, Discharge Chute, 50"

Note: Model (303)

$

$

Not available
