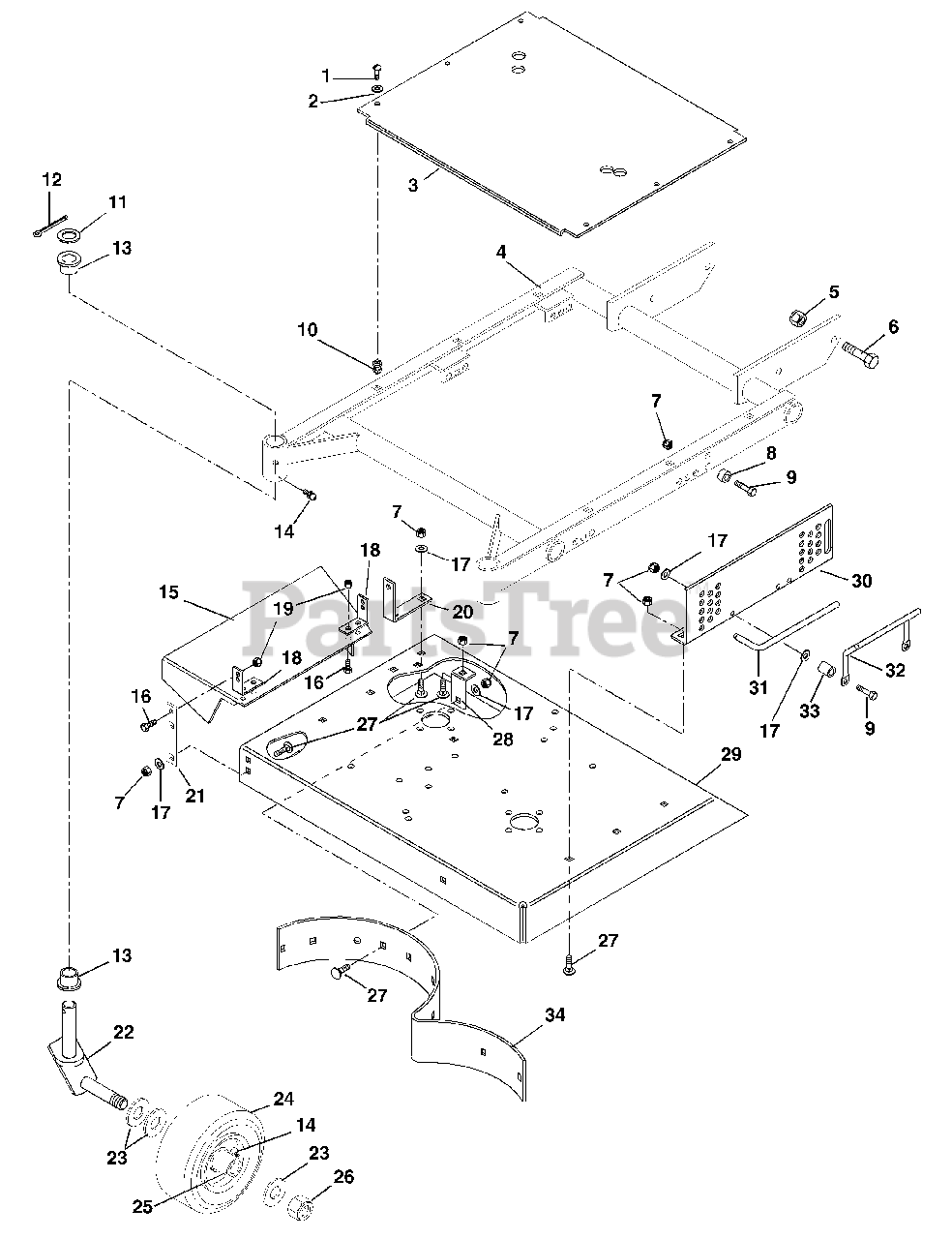

888302 - Gravely 36" Multi-Mode Deck for Pro-Walk Mower (SN: 011000 & Above) Mower Frame Parts Diagram

36" Multi-Mode Deck for Pro-Walk Mower

Mower Frame Parts Diagram

  • Title

1

Gravely 07412000

Screw-Self Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 08826400

Cover, Belt

$

$

Not available

4

Gravely 08839300

Weldment, Mower Frame Multi-Mode

$

$

Not available

5

Gravely 06535300

Nut, Locking Center .62-11

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 05968700

Bolt-Hex .62-11 x 1.50 Grade 5

$3.99

$

In Stock, only 3 left!

0

7

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 08814100

Bushing .391 x .626 x .670

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

10

Gravely 07538100

Grommet, Plastic

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435300

Washer-Hardened-Thrust 1.002 x 1.552 x .030

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06712800

Pin-Cotter .18 x 1.50

$1.99

$

In Stock, only 2 left!

0

13

Gravely 05520100

Bushing-Flanged .020 x 1.385 x 1.75

$11.99

$

In Stock, Qty 12

0

14

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

15

Gravely 08809900

Chute, Discharge
(Superseded to 04908453)

$77.99

$

Usually ships in 4-12 days

0

16

Gravely 05947000

Bolt-Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 08809400

Bracket

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 06529800

Nut-Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 08809700

Bracket

$

$

Not available

21

Gravely 08809600

Bracket

$22.99

$

In Stock, only 1 left!

0

22

Gravely 08954600

Weldment, Caster Fork
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

23

Gravely 06439000

Washer-Flat-Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07130100

Wheel 9 x 3.50

$108.99

$

In Stock, only 4 left!

0

25

Gravely 05434700

Bearing, 1.00 x 2.046 x .591
(Superseded to 05400730)

$19.99

$

In Stock, only 2 left!

0

26

Gravely 06535400

Nut-Locking Center .75-10

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

28

Gravely 08807900

Bracket, Mower Support

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 08811100

Weldment, 36" R.D. Deck

$

$

Not available

30

Gravely 08836200

Bracket, Mower Side Support Left Hand

$124.99

$

Usually ships in 4-12 days

0

30

Gravely 08836100

Bracket, Mower Side Support Right Hand

$122.99

$

Usually ships in 4-12 days

0

31

Gravely 08875900

Pin, Mower Locking

$18.99

$

Usually ships in 4-12 days

0

32

Gravely 08878000

Handle

$59.99

$

In Stock, only 1 left!

0

33

Gravely 08553700

Bushing

$5.99

$

In Stock, only 1 left!

0

34

Gravely 08744500

Scroll

$

$

Not available
