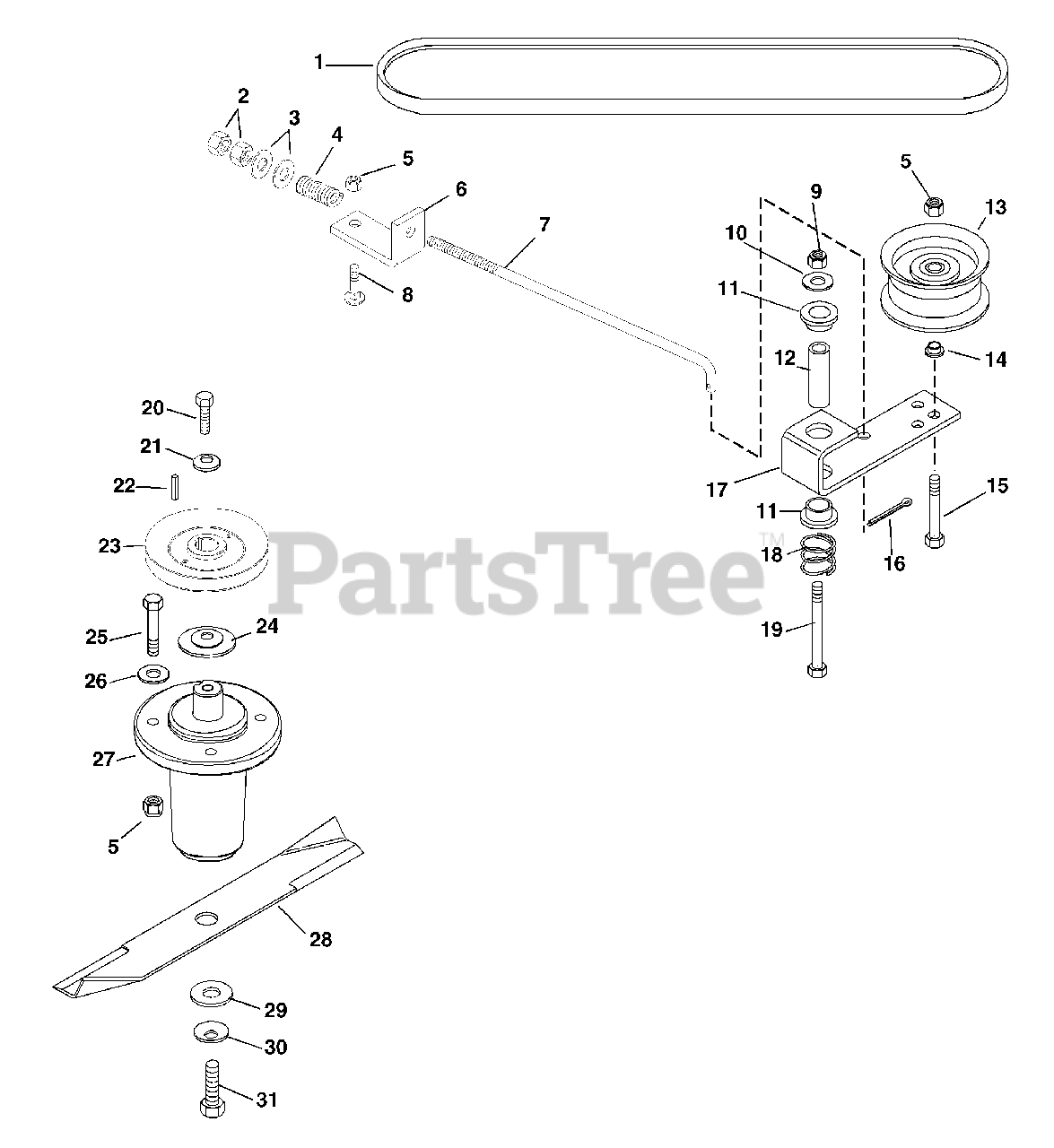

888302 - Gravely 36" Multi-Mode Deck for Pro-Walk Mower (SN: 011000 & Above) Mower Drive Parts Diagram

36" Multi-Mode Deck for Pro-Walk Mower

Mower Drive Parts Diagram

  • Title

1

Gravely 07227700

V-Belt, Wrapped 50"
(Superseded to 07238200)

$64.99

$

In Stock, Qty 5

0

2

Gravely 06522900

Nut-Hex .375-24 Grade 2
(Superseded to 06500940)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08329100

Compression Spring, .085 x .80 x 1.00

$13.99

$

In Stock, only 1 left!

0

5

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 08802700

Bracket, Belt Tensioner

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 03351200

Rod, Idler

$

$

Not available

8

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

9

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06430200

Washer, Flat-Steel .531 x 1.25 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05518400

Bushing, Flanged .762 x 1.00 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

12

Gravely 08820500

Spacer .560 x .750 x 2.437 Steel

$18.99

$

In Stock, only 1 left!

0

13

Gravely 07317700

Idler-Flat
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

14

Gravely 05515800

Bushing-Flanged .406 x .88 x .270 x .140

$9.49

$

In Stock, only 4 left!

0

15

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

17

Gravely 08905900

Arm, Idler Pivot

$82.99

$

Usually ships in 4-12 days

0

18

Gravely 08327000

Compression Spring, 1 x .78 x .338

$15.99

$

In Stock, only 2 left!

0

19

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 00597000

Washer-Cupped-Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 1 left!

0

23

Gravely 04904300

Weldment, Pulley 4.75 x 1.004 w/key

$99.99

$

Usually ships in 4-12 days

0

24

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 1 left!

0

25

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 58803600

Assembly-Spindle

$267.99

$

In Stock, only 1 left!

0

28

Gravely 08899400

Blade, 36" Tungsten
(Superseded to 08816600)

$20.99

$

In Stock, only 2 left!

0

29

Gravely 06435200

Washer-Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 6

0

31

Gravely 07053400

Bolt-Blade

$46.99

$

In Stock, Qty 7

0
