888302 - Gravely 36" Multi-Mode Deck for Pro-Walk Mower (SN: 000101 - 010999) MOWER FRAME Parts Diagram

36" Multi-Mode Deck for Pro-Walk Mower

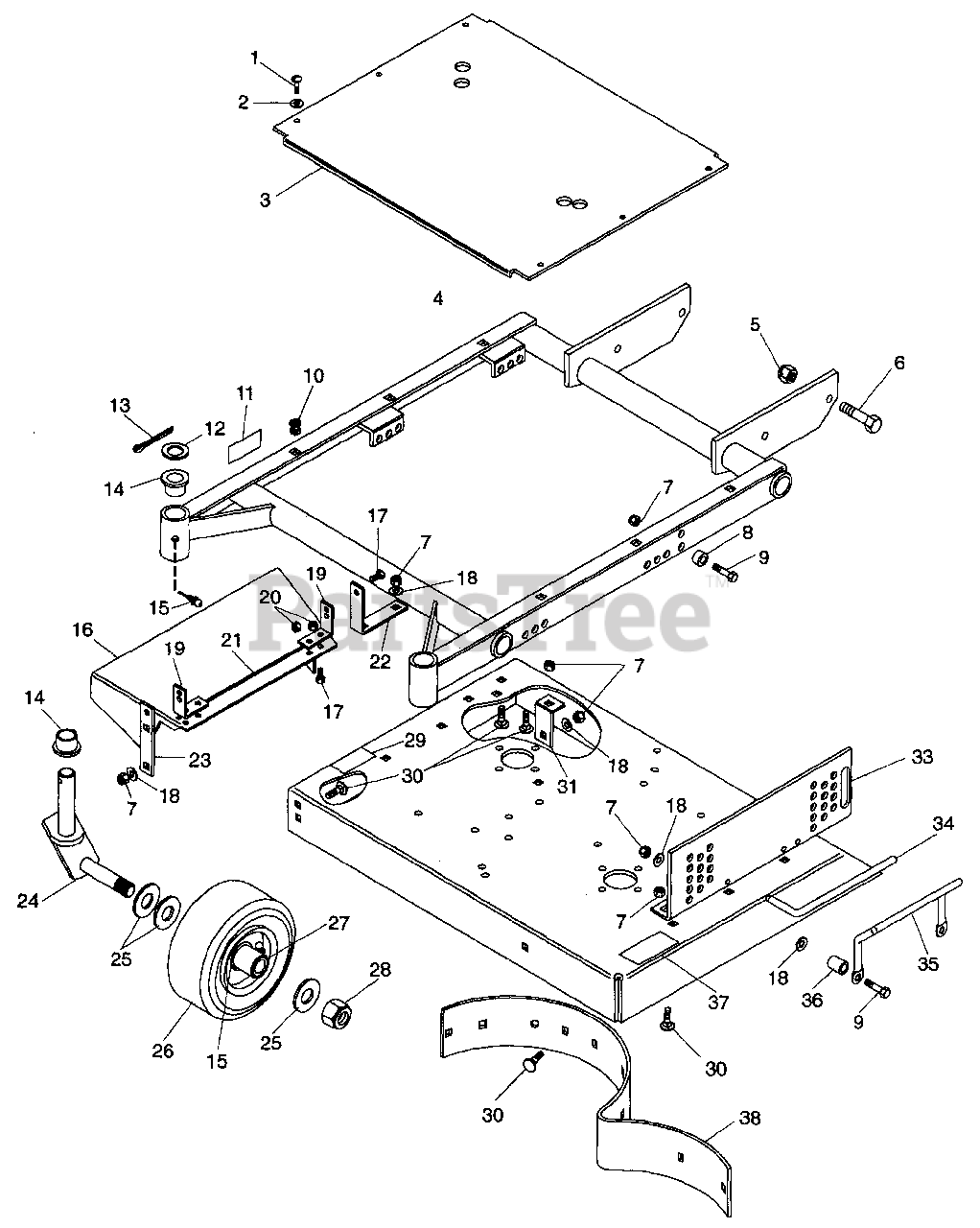

MOWER FRAME Parts Diagram

  • Title
1

Gravely 045207

Scr-Tap .25-20 x .50 Hxslhd Pl
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120392

Wshr-Fl-Stl .281 x .62 x .065 Pl
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 045015

Cvr, Silkscreen 36" Mwr
(Superseded to 08826400)

$

$

Not available

4

Gravely 050148

Wldmt, Mwr Frm Multi-Mode
(Superseded to 08839300)

$

$

Not available

5

Gravely 418692

Nut-Lk-Nyl .625-11 Pl
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 271547

Blt-Hex .625-11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

7

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 180126

Blt-Hex .38-16 x 1.50 Pl Gr 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

10

Gravely 011777

Gmmt, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

12

Gravely 019340

Brg-R-Thrst 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 2 left!

0

13

Gravely 103409

Pin-Cotr .188 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

14

Gravely 018355

Bshg-FIg 1.010 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

15

Gravely 411027

Ftg-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

16

Gravely 038952

Chute, Discharge
(Superseded to 04908453)

$77.99

$

Usually ships in 4-12 days

0

17

Gravely 180077

Blt-Hex .31-18 x .75 Pl Gr 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 038951

Brkt
(Superseded to 08809800)

Note: (Used Only On Model(s): 888004).

$

$

Not available

19

Gravely 088816

Brkt, Disch. Chute, 36",Limit Stop
(Superseded to 08881600)

Note: (Used Only On Model(s): 888302).

$16.99

$

In Stock, only 1 left!

0

20

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 049720

Width of Cut Decal
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

22

Gravely 038950

Brkt
(Superseded to 08809700)

Note: (Used Only On Model(s): 888004).

$

$

Not available

Gravely 088818

Limiter, Disch Chute 36MM Euro
(Superseded to 08881800)

Note: (Used Only On Model(s): 888302).

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 038949

Brkt
(Superseded to 08809600)

$22.99

$

In Stock, only 1 left!

0

24

Gravely 044680

Wldmt Caster Fork
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

25

Gravely 131017

Wshr-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 045205

Whl 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

27

Gravely 037823

Brg, Ball(Heim Sealed)
(Superseded to 05408900)

Note: (Heim Sealed)

$18.99

$

In Stock, only 3 left!

0

28

Gravely 456007

Nut-Lk-Nyl Insr.75-10 Pl
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

29

Gravely 033928

Decal, Waming Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

30

Gravely 120915

Blt-Rdhdsqnk .38-16x 1.00

$

$

Not available

31

Gravely 041228

Brkt
(Superseded to 08812000)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 039727

Wldmt, 36" R.D. Deck
(Superseded to 08811100)

$

$

Not available

33

Gravely 049343

Brkt, Mwr Side Sprt L.H.
(Superseded to 08836200)

$124.99

$

Usually ships in 4-12 days

0

33

Gravely 049342

Brkt, Mwr Side Sprt R.H.
(Superseded to 08836100)

$122.99

$

Usually ships in 4-12 days

0

34

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

35

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

36

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

37

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

38

Gravely 041229

Scroll
(Superseded to 08812100)

$

$

Not available

39

Gravely 043003

Decal, Gravely Logo
(Superseded to 05210700)

$

$

Not available

40

Gravely 044532

Decal, Pro-36
(Superseded to 05212500)

$

$

Not available

077121

Decal, Mower Pan Foreign

Note: (Used Only On Model(s): 888302).

$

$

Not available
