888048 - Gravely 50" Deck for Pro-Walk 150 Mower (SN: 002698 - 009999) MOWER FRAME Parts Diagram

50" Deck for Pro-Walk 150 Mower

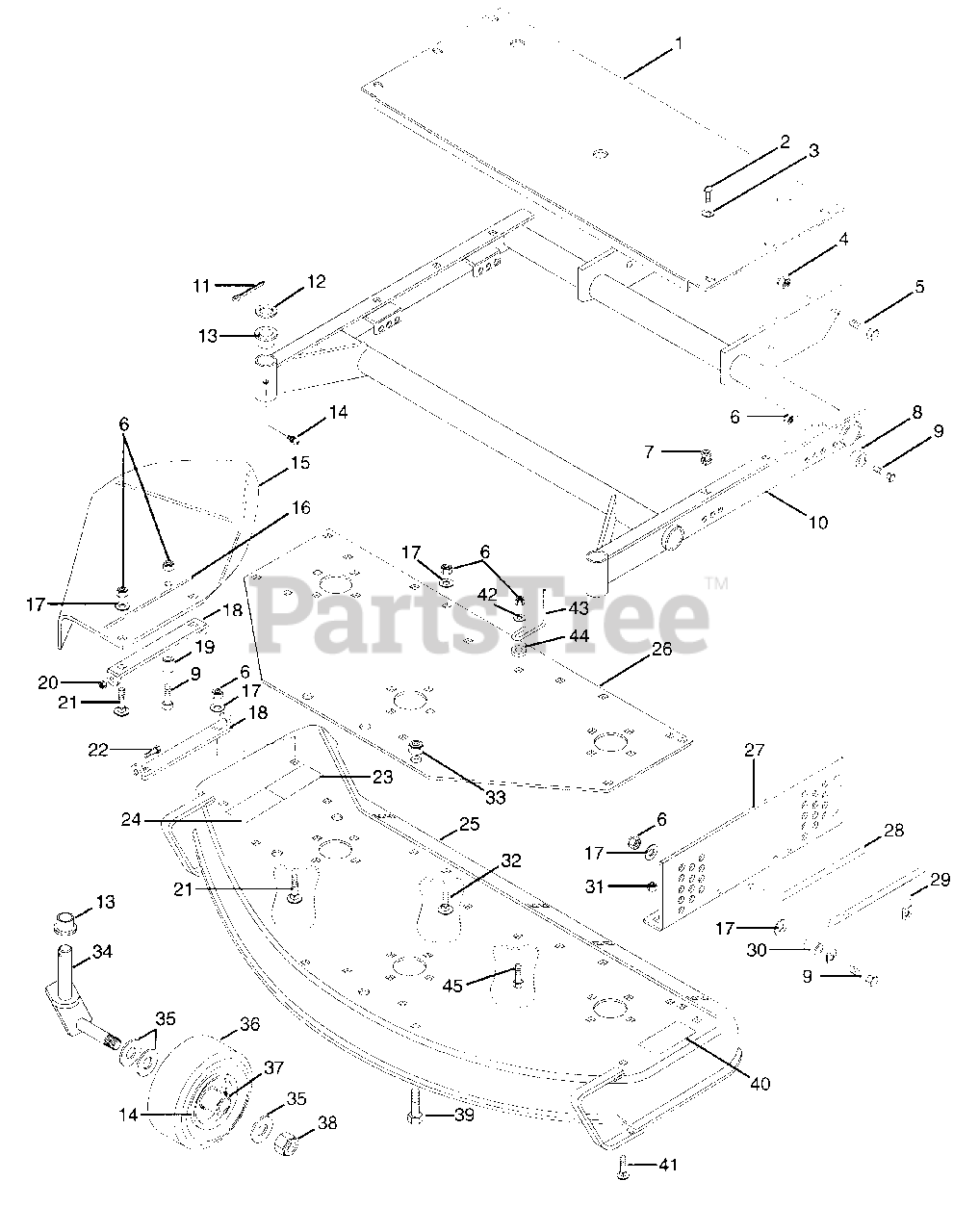

MOWER FRAME Parts Diagram

  • Title

1

Gravely 038573

Guard, 50" Mower Belt
(Superseded to 08960400)

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

Screw-Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 271547

Bolt-Hex .625-11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

10

Gravely 08872800

Mower Frame, 50", Pro 150
(Superseded to 58804000)

$543.99

$

Usually ships in 4-12 days

0

11

Gravely 103409

Pin-Cotter .188 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 019340

Washer-Hardened Trust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 2 left!

0

13

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

14

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

15

Gravely 038675

Shield, Safety External 50" Mower

$

$

Not available

16

Gravely 039758

Width of Cut Decal
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

19

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

20

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

22

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 05350300

Decal, Danger Hand

$31.99

$

Usually ships in 4-12 days

0

24

Gravely 05350200

Decal, Warning Eye

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 052066

Weldment, 50" Mower
(Superseded to 58810100)

$775.99

$

Usually ships in 4-12 days

0

26

Gravely 052760

Plate, Support 1
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

27

Gravely 049343

Bracket, Mower Side Support Left Hand
(Superseded to 08836200)

$124.99

$

Usually ships in 4-12 days

0

27

Gravely 049342

Bracket, Mower Side Support Right Hand
(Superseded to 08836100)

$122.99

$

Usually ships in 4-12 days

0

28

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

29

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

30

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

31

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 126227

Bolt-Round Head Square Neck .375-16 x .75 Grade 1
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

33

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 08954653

Weldment, Caster Fork

$221.99

$

Usually ships in 4-12 days

0

35

Gravely 131017

Washer-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 045205

Wheel 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

37

Gravely 011193

Bearing, Ball
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

38

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

39

Gravely 180175

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

40

Gravely 05350100

Decal, Danger Foot

$

$

Not available

41

Gravely 126358

Bolt, Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06413000

Washer-Flat-Steel .406 x 1.000 x .188
(Superseded to 06444000)

$2.49

$

In Stock, Qty 20+

0

43

Gravely 08874000

Belt Brake Finger 2-Deck Clutch

$

$

Not available

44

Gravely 042989

Bushing Flange .383 x .50 x .165
(Superseded to 05526700)

$

$

Not available

45

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 126402

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

Note: N\S

$2.49

$

In Stock, only 3 left!

0
