888048 - Gravely 50" Deck for Pro-Walk 150 Mower (SN: 002698 - 009999) MOWER DRIVE Parts Diagram

50" Deck for Pro-Walk 150 Mower

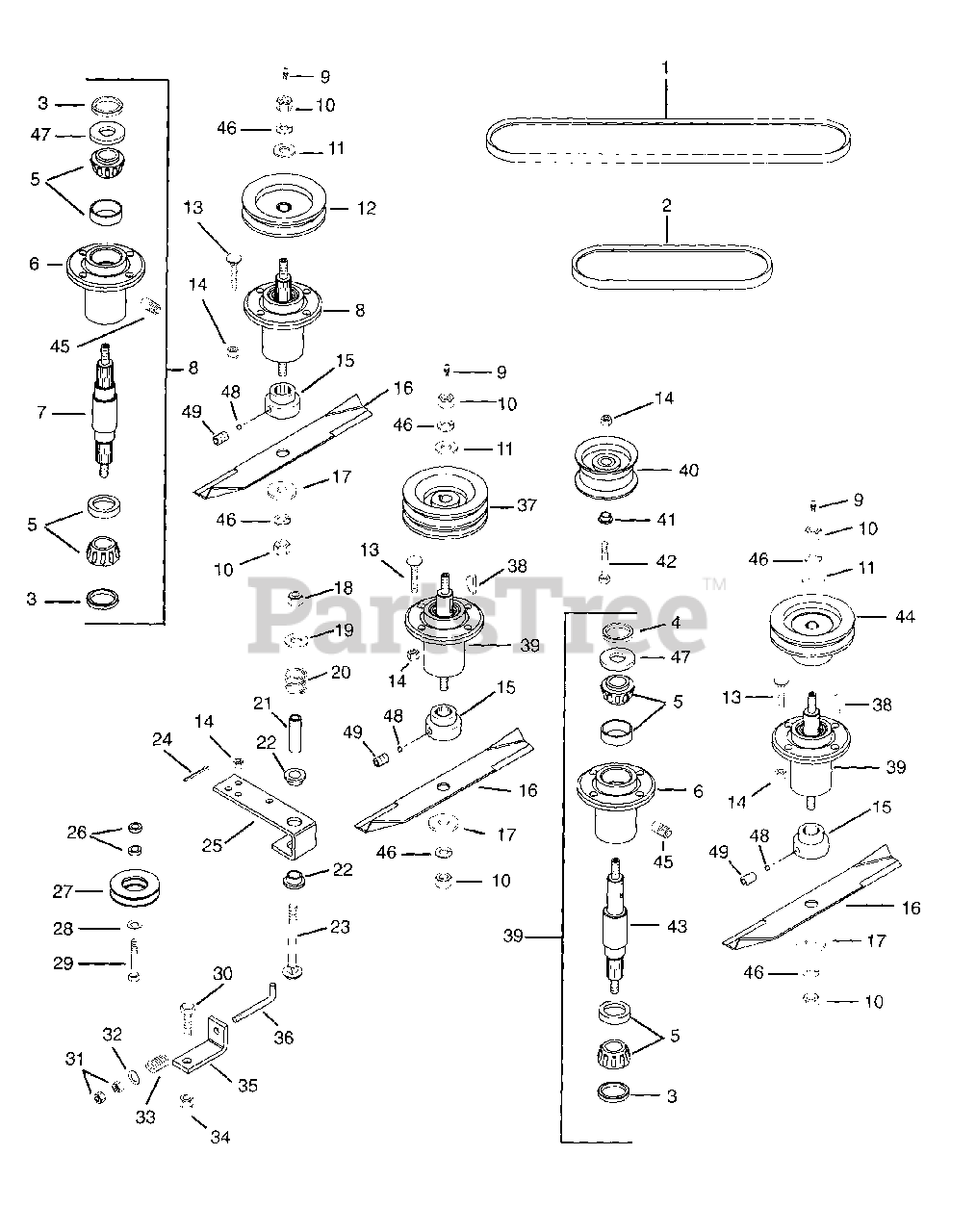

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07227700

V-Belt Wrapped, Pro 150/50"
(Superseded to 07238200)

$64.99

$

In Stock, Qty 5

0

2

Gravely 034944

V-Belt A-Section
(Superseded to 07220000)

$29.99

$

In Stock, only 1 left!

0

3

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, only 2 left!

0

4

Gravely 05611400

Seal 1.987 x 1.500 x .313

$15.99

$

In Stock, only 1 left!

0

5

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$26.99

$

In Stock, Qty 20+

0

6

088945

Bearing Housing

$

$

Not available

7

Gravely 08898600

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

8

Gravely 58802300

Service Kit Spindle Assembly
(Superseded to 58803600)

Note: One ea. of 6,7,11,15,17,45,47-49 Two ea. of 3,5,10,46

$267.99

$

In Stock, only 1 left!

0

9

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

11

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .150
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 08896000

Sheave

$89.99

$

In Stock, only 1 left!

0

13

Gravely 126406

Bolt-Round Head Square Neck .38-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 08886500

Hub

$64.99

$

Usually ships in 4-12 days

0

16

Gravely 011234

Blade
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

17

Gravely 131016

Washer-Flat-Steel .640 x 1.81 x .250
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 414074

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

20

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 034119

Bushing, Steel .560 x .750 x 2.44
(Superseded to 08820500)

$18.99

$

In Stock, only 1 left!

0

22

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 180192

Bolt-Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

24

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

25

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

26

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

27

Gravely 07309200

Idler-V 3 x .38

$37.99

$

In Stock, only 2 left!

0

28

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

29

Gravely 180130

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

30

Gravely 180175

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

31

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 1 left!

0

34

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 038713

Bracket, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

36

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

37

Gravely 08895900

Sheave

$

$

Not available

38

Gravely 124553

Key, Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

39

Gravely 58802400

Service Kit Spindle Assembly
(Superseded to 58803600)

Note: One ea. of 3,4,6,11,15,17,43,45,47-49 Two ea. of 5,10,46

$267.99

$

In Stock, only 1 left!

0

40

Gravely 034286

Pulley-Flat 4.0 x .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

41

Gravely 006724

Bushing-Sleeve .377 x .503 x .88
(Superseded to 05518100)

$5.99

$

Usually ships in 4-12 days

0

42

Gravely 05919600

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05958300)

$3.49

$

In Stock, only 1 left!

0

43

Gravely 08898500

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

44

Gravely 08895500

Sheave

$

$

Not available

45

Gravely 08896800

Relief Fitting

$13.99

$

Usually ships in 4-12 days

0

46

Gravely 06300700

Washer-Locking .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

47

Gravely 06416600

Washer-Hardened-Thrust 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

48

Gravely 03191400

Plug

$6.49

$

Usually ships in 4-12 days

0

49

Gravely 06005400

Screw-Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0
