888048 - Gravely 50" Deck for Pro-Walk 150 Mower (SN: 000101 - 001999) MOWER FRAME Parts Diagram

50" Deck for Pro-Walk 150 Mower

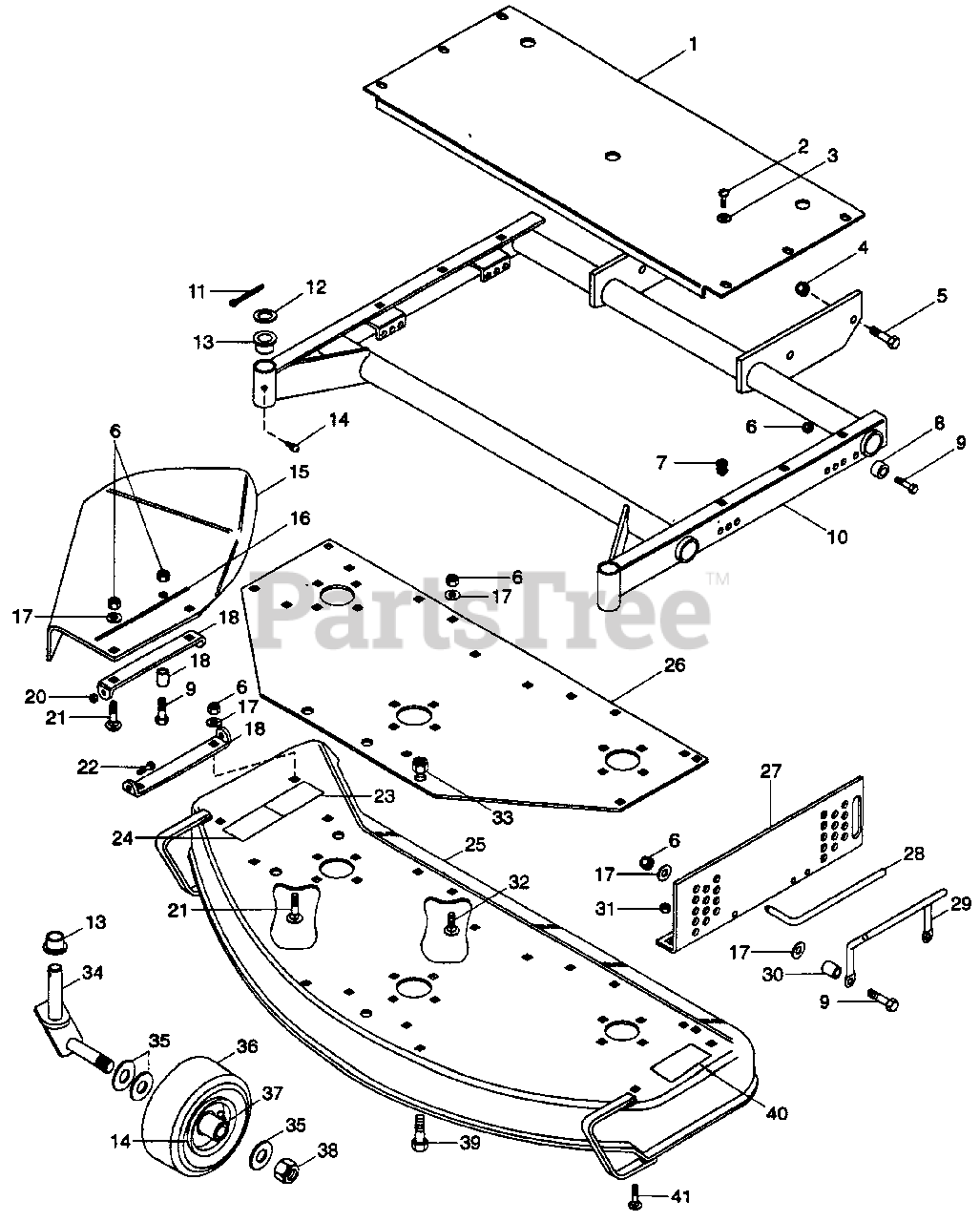

MOWER FRAME Parts Diagram

  • Title
1

Gravely 038573

GRD, 50" MOWER BELT
(Superseded to 08960400)

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

SCR-TAP .25-20 X .50 HXSLHD PL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 050365

WSHR-FL-STL .281 X .62 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 418692

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 271547

BLT-HEX .625-11 X 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 011777

GRMT, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 180126

BLT-HEX .38-16 X 1.50 PL GR 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

10

Gravely 088728

WLDT, MOWER FRAME, 50", PRO 150
(Superseded to 58804000)

$543.99

$

Usually ships in 4-12 days

0

11

Gravely 103409

PIN-COTR .188 X 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 019340

BRG-R-THRST 1.002 X 1.552 X .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 018355

BSHG-FLG 1.020 X 1.385 X .75 X 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

14

Gravely 411027

FTG-LUBE .25-28 X .256
(Superseded to 07012600)

$

$

Not available

15

Gravely 038675

SHIELD, SFTY EXT 50" MWR

$

$

Not available

16

Gravely 039758

WIDTH OF CUT DECAL
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 045641

BRKT, CHUTE
(Superseded to 08827653)

$

$

Not available

19

Gravely 038696

BSHG-SLV .407 X .625 X .750 PL
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

20

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 120915

BLT-RDHDSQNK .38-16 X 1.0 PL

$

$

Not available

22

Gravely 180021

BLT-HEX .25-20 X .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 053503

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

24

Gravely 053502

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 046209

WLDMT, 50" MOWER DECK
(Superseded to 58502500)

$517.99

$

Usually ships in 4-12 days

0

26

Gravely 052760

PLT, SUPPORT
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

27

Gravely 049343

BRKT, MWR SIDE SPRT L.H.
(Superseded to 08836200)

$124.99

$

Usually ships in 4-12 days

0

27

Gravely 049342

BRKT, MWR SIDE SPRT R.H.
(Superseded to 08836100)

$122.99

$

Usually ships in 4-12 days

0

28

Gravely 038514

PIN, MOWER LOCKING
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

29

Gravely 044507

HANDLE
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

30

Gravely 043922

BUSHING
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

31

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 126227

BLT-RDHDSQNK .38-16 X .75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

33

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 08954653

WLDMT, CASTER FORK

$221.99

$

Usually ships in 4-12 days

0

35

Gravely 131017

WSHR-FLAT .812 X 1.469 X .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 045205

WHL 9 X 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

37

Gravely 011193

BRG, BALL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

38

Gravely 456007

NUT-LK-NYL INSR. .75-10 PL
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

39

Gravely 180175

BLT-HEX .50-13 X 1.25 PL GR 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

40

Gravely 053501

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

41

Gravely 126358

BLT, RDHDSQNK .31-18 X 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0
