888048 - Gravely 50" Deck for Pro-Walk 150 Mower (SN: 000101 - 001999) MOWER DRIVE Parts Diagram

50" Deck for Pro-Walk 150 Mower

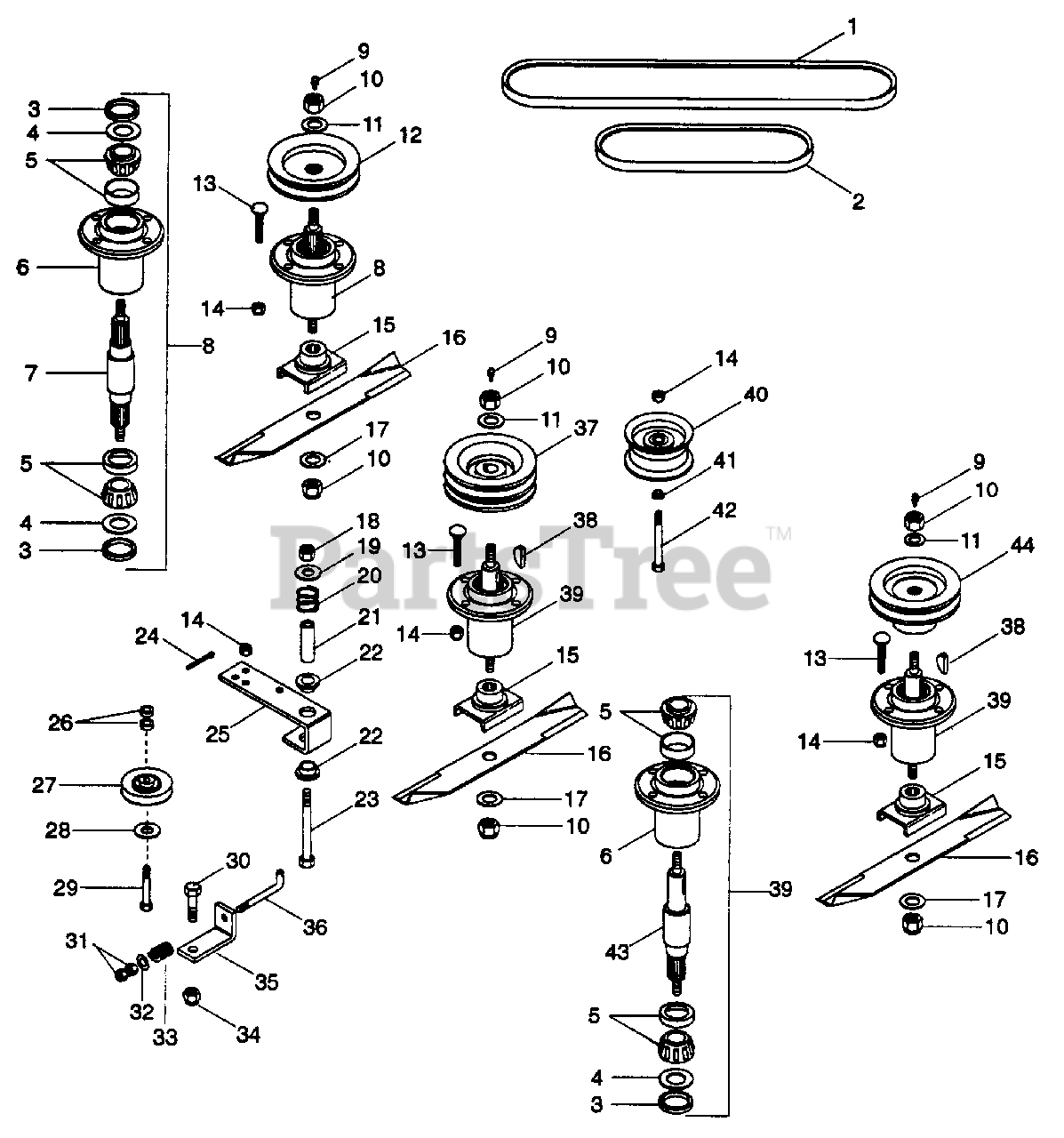

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 043894

V-BELT A-RMA 37.8 X 33/64
(Superseded to 07238200)

$63.99

$

In Stock, Qty 5

0

2

Gravely 034944

V-BELT A-RMA 18.05 X .495
(Superseded to 07220000)

$28.99

$

In Stock, only 1 left!

0

3

Gravely 212211

SL, STEEL(LEFT & CENTER SPINDLES)

Note: (LEFT & CENTER SPINDLES)

$

$

Not available

3

Gravely 021211

SL, STEEL(RIGHT SPINDLE)
(Superseded to 08722600)

Note: (RIGHT SPINDLE)

$15.99

$

In Stock, only 1 left!

0

4

Gravely 020743

WSHR-FL-STL .97 X 1.865 X .03
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

5

Gravely 038199

ASM, BEARING CUP & CONE
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

6

Gravely 021215

HSG, BEARING
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

7

Gravely 021216

SHFT, SPINDLE
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

8

Gravely 021306

SPNDL, ASSEMBLY
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

9

Gravely 411010

FTG, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 418692

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 033845

WSHR-FL-STL .687 X 1.312 X .135
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 088743

SHEAVE, SPLINED SPINDLE, FAB'D
(Superseded to 08896000)

$

$

Not available

13

Gravely 126406

BLT-RDHDSQNK .38-16 X 1.375
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 023026

WLDMT, BLADE CRDL
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

16

Gravely 011234

BLD
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

17

Gravely 131016

WHSR-FL-STL .656 X 1.312 X .095 PL
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 414074

NUT-LK .50-13 HEX TYPE N
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 415543

WSHR-FL-STL .531 X 1.250 X .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

20

Gravely 020444

SG-COMP .085 X 1.00 WLD 36
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

21

Gravely 034119

BUSH., S .560 X .750 X 2.44 ST
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

22

Gravely 010174

BSHG-FLG .762 X 1.0 X .580 X 1.48 NY
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 180192

BLT-HEX .50-13 X 3.50 PL GR 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

24

Gravely 121222

PIN-COTR .09 X .75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

25

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

26

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

27

Gravely 073092

IDLER-V 3 X .38
(Superseded to 07309200)

$37.99

$

In Stock, only 2 left!

0

28

Gravely 446470

WSHR-FL-STL .375 X 1.125 X .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

29

Gravely 180130

BLT-HEX .38-16 X 2.00 PL GR 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

30

Gravely 180175

BLT-HEX .50-13 X 1.25 PL GR 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

31

Gravely 120377

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 120394

WSHR-FL-STL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 011779

SG-COMP .125 X .78 X 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

34

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

35

Gravely 038713

BRKT, BELT TENSIONER
(Superseded to 08928800)

$

$

Not available

36

Gravely 038714

ROD, IDLER
(Superseded to 08876000)

$

$

Not available

37

Gravely 088742

SHEAVE, CENTER SPINDLE, FAB'D
(Superseded to 08874200)

$

$

Not available

38

Gravely 124553

KEY, WDRF .25 X 1 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

39

Gravely 034605

ASM, SPINDLE
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

40

Gravely 034286

PLY-FLAT 4.0 X .38 N HAMSHR
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

41

Gravely 006724

BSHG-SLV .377 X .503 X .88
(Superseded to 05518100)

$5.99

$

Usually ships in 4-12 days

0

42

Gravely 059196

BLT-HEX .38-16 X 3.00 PL GR 5
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

43

Gravely 034603

SHAFT, SPINDLE
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

44

Gravely 088727

SPINDLE SHEAVE
(Superseded to 08872700)

$79.99

$

In Stock, only 1 left!

0

NS

Gravely 088740

BELT FINGER, PRO 150 DECK
(Superseded to 08874000)

$

$

Not available
