888047 - Gravely 36" Fab Deck for Pro-Walk 150 Mower (SN: 010000 & Above) Mower Drive Parts Diagram

36" Fab Deck for Pro-Walk 150 Mower

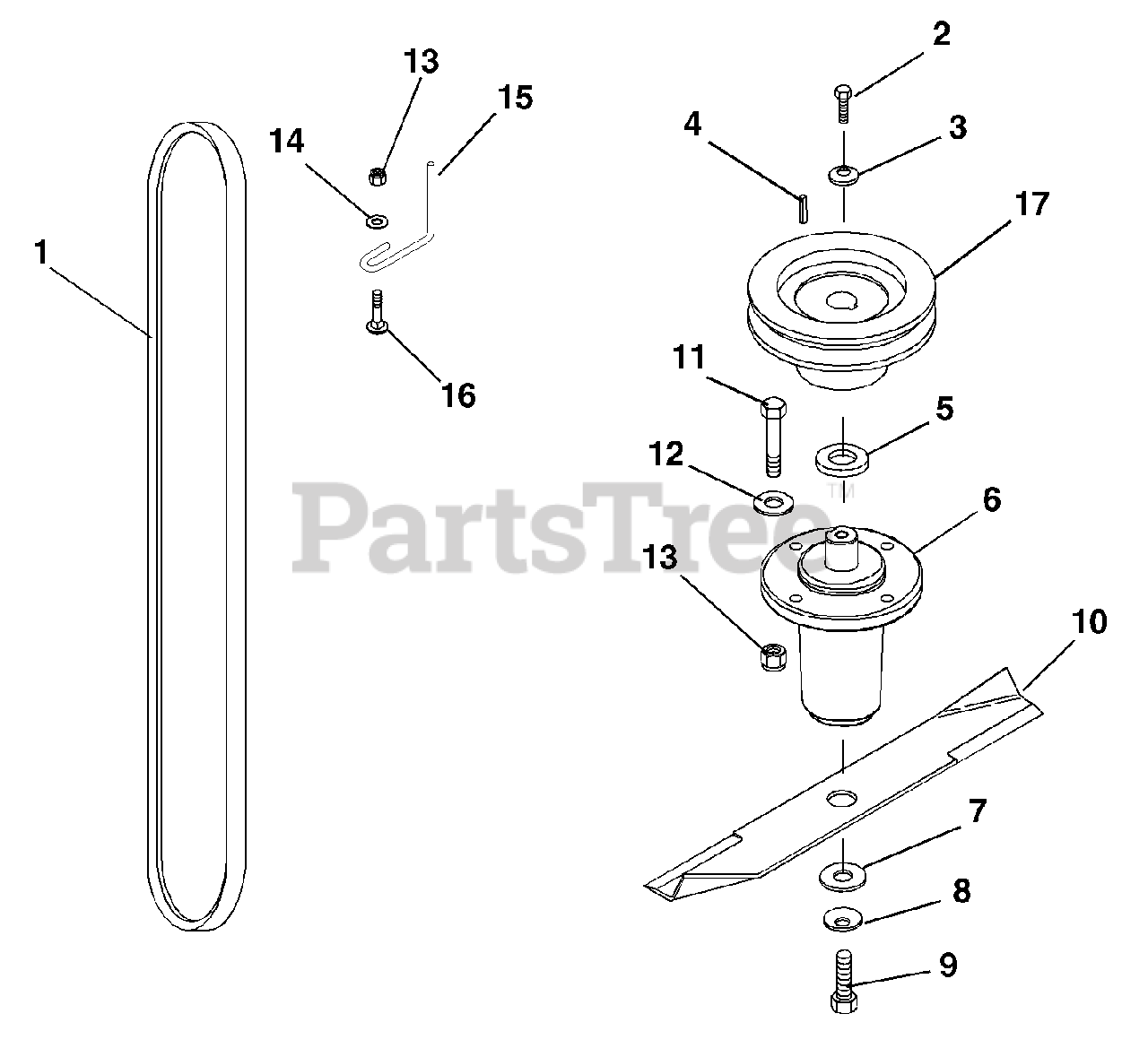

Mower Drive Parts Diagram

  • Title

1

Gravely 07227800

V-Belt A-Section
(Superseded to 07238600)

$69.99

$

Usually ships in 4-12 days

0

2

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 00597000

Washer-Cupped-Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06602200

Key-Straight .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

5

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

6

Gravely 58803600

Assembly-Spindle

$262.99

$

In Stock, only 1 left!

0

7

Gravely 06435200

Washer-Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

9

Gravely 07053400

Bolt-Blade

$46.99

$

In Stock, Qty 7

0

10

Gravely 08899400

Blade - 36" Mower
(Superseded to 08816600)

Note: (Model 047)

$20.99

$

In Stock, only 2 left!

0

10

Gravely 04905300

Blade - 36" Mower
(Superseded to 08882600)

Note: (Model 301)

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

12

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529600

Nut-Locking-Nylon .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 08874000

Belt Brake Finger 2-Deck Clutch

$

$

Not available

16

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 04904300

Pulley

$

$

Not available
