888047 - Gravely 36" Fab Deck for Pro-Walk 150 Mower (SN: 000101 - 002461) MOWER FRAME Parts Diagram

36" Fab Deck for Pro-Walk 150 Mower

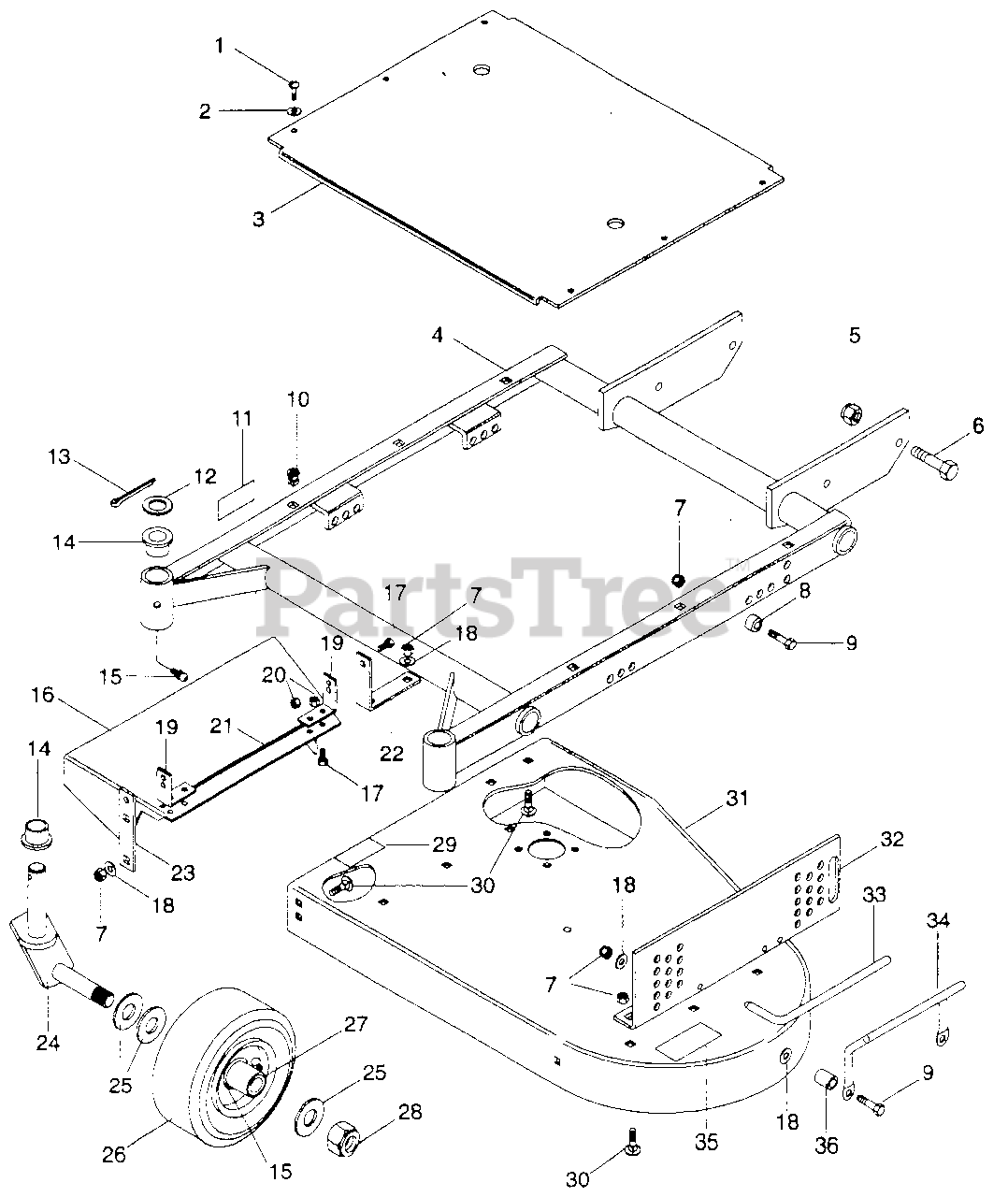

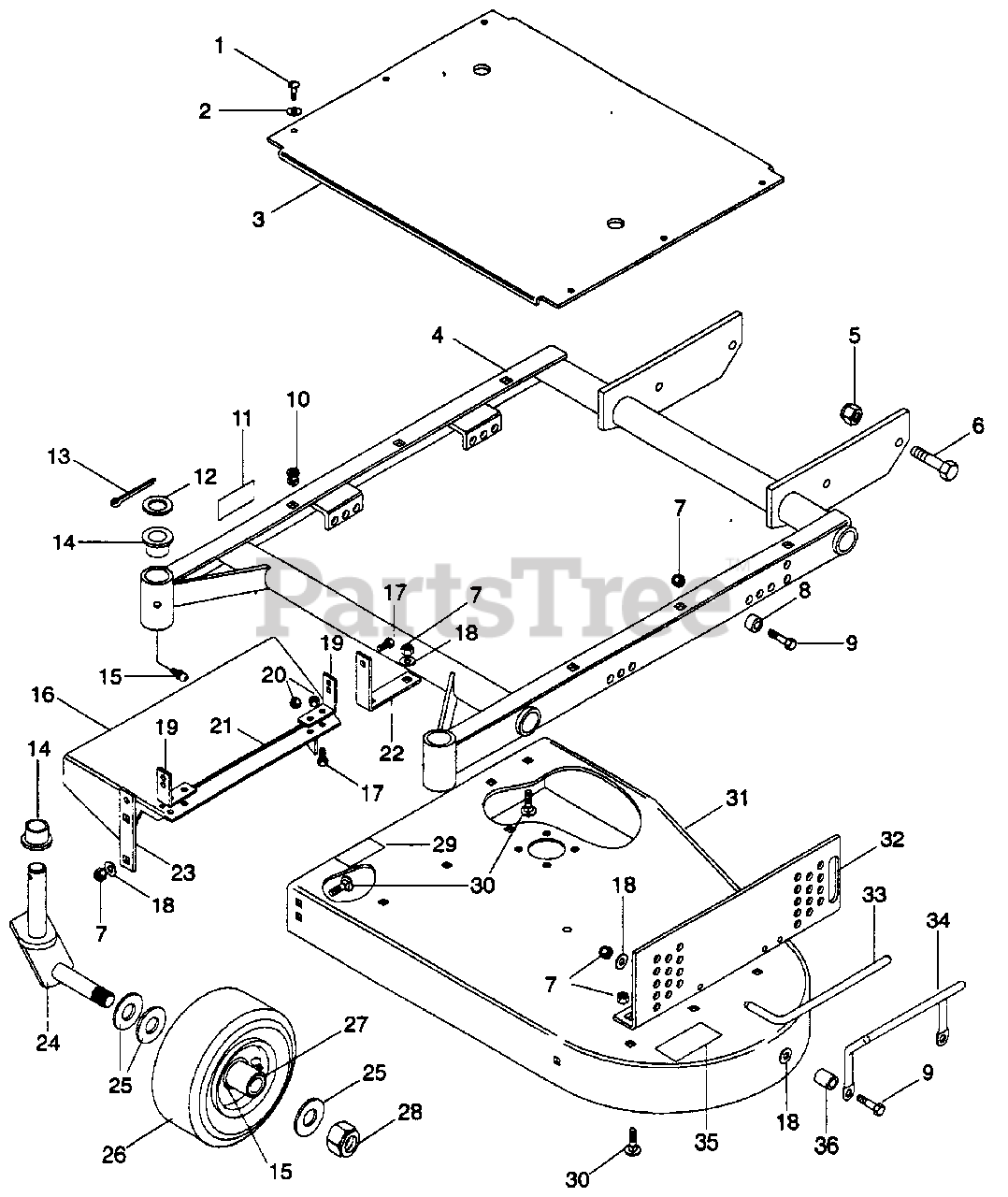

MOWER FRAME Parts Diagram

  • Title

1

Gravely 045207

SCR-TAP .25-20 X .50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120392

WSHR-FL-STL .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 047172

CVR, SILKSCR
(Superseded to 08829200)

$

$

Not available

4

Gravely 088729

WLDT, MOWER FRAME, 36", PRO 150
(Superseded to 58804100)

$475.99

$

Usually ships in 4-12 days

0

5

Gravely 418692

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 271547

BLT-HEX .625-11 X 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

7

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 180126

BLT-HEX .38-16 X 1.50 PL GR 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

10

Gravely 011777

GRMT, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 039926

DECAL, DANGER HAND

$

$

Not available

12

Gravely 019340

BRG-R-THRST 1.002 X 1.552 X .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 103409

PIN-COTR .188 X 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

14

Gravely 018355

BSHG-FLG 1.020 X 1.385 X .75 X 1.75 NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

15

Gravely 411027

FTG-LUBE .25-28 X .256
(Superseded to 07012600)

$

$

Not available

16

Gravely 038952

CHUTE, DISCHARGE
(Superseded to 04908453)

$77.99

$

Usually ships in 4-12 days

0

17

Gravely 180077

BLT-HEX .31-18 X .75 PL GR 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 038951

BRKT
(Superseded to 08809800)

$

$

Not available

20

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 049720

WIDTH OF CUT DECAL
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

22

Gravely 047163

BRKT
(Superseded to 08829100)

$

$

Not available

23

Gravely 038949

BRKT
(Superseded to 08809600)

$22.99

$

In Stock, only 1 left!

0

24

Gravely 044680

WLDT, CASTOR FORK G44680
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

25

Gravely 131017

WSHR-FLAT .812 X 1.469 X .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 045205

WHL 9 X 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

27

Gravely 037823

BRG, GA WHL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

28

Gravely 456007

NUT-LK-NYL INSR .75-10 PL
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

29

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

30

Gravely 120915

BLT-RDHDSQNK .38-16 X 1.0 PL

$

$

Not available

31

Gravely 047135

WLDMT, 36 DECK
(Superseded to 08828500)

$

$

Not available

32

Gravely 049343

BRKT, MWR SIDE SPRT L.H.
(Superseded to 08836200)

$124.99

$

Usually ships in 4-12 days

0

32

Gravely 049342

BRKT, MWR SIDE SPRT R.H.
(Superseded to 08836100)

$122.99

$

Usually ships in 4-12 days

0

33

Gravely 038514

PIN, MOWER LOCKING
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

34

Gravely 044507

HANDLE
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

35

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

36

Gravely 043922

BUSHING
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

NS

Gravely 043003

DECAL - GRAVELY LOGO
(Superseded to 05210700)

$

$

Not available

NS

Gravely 044532

DECAL - PRO 36
(Superseded to 05212500)

$

$

Not available
