888047 - Gravely 36" Fab Deck for Pro-Walk 150 Mower (SN: 000101 - 002461) MOWER DRIVE Parts Diagram

36" Fab Deck for Pro-Walk 150 Mower

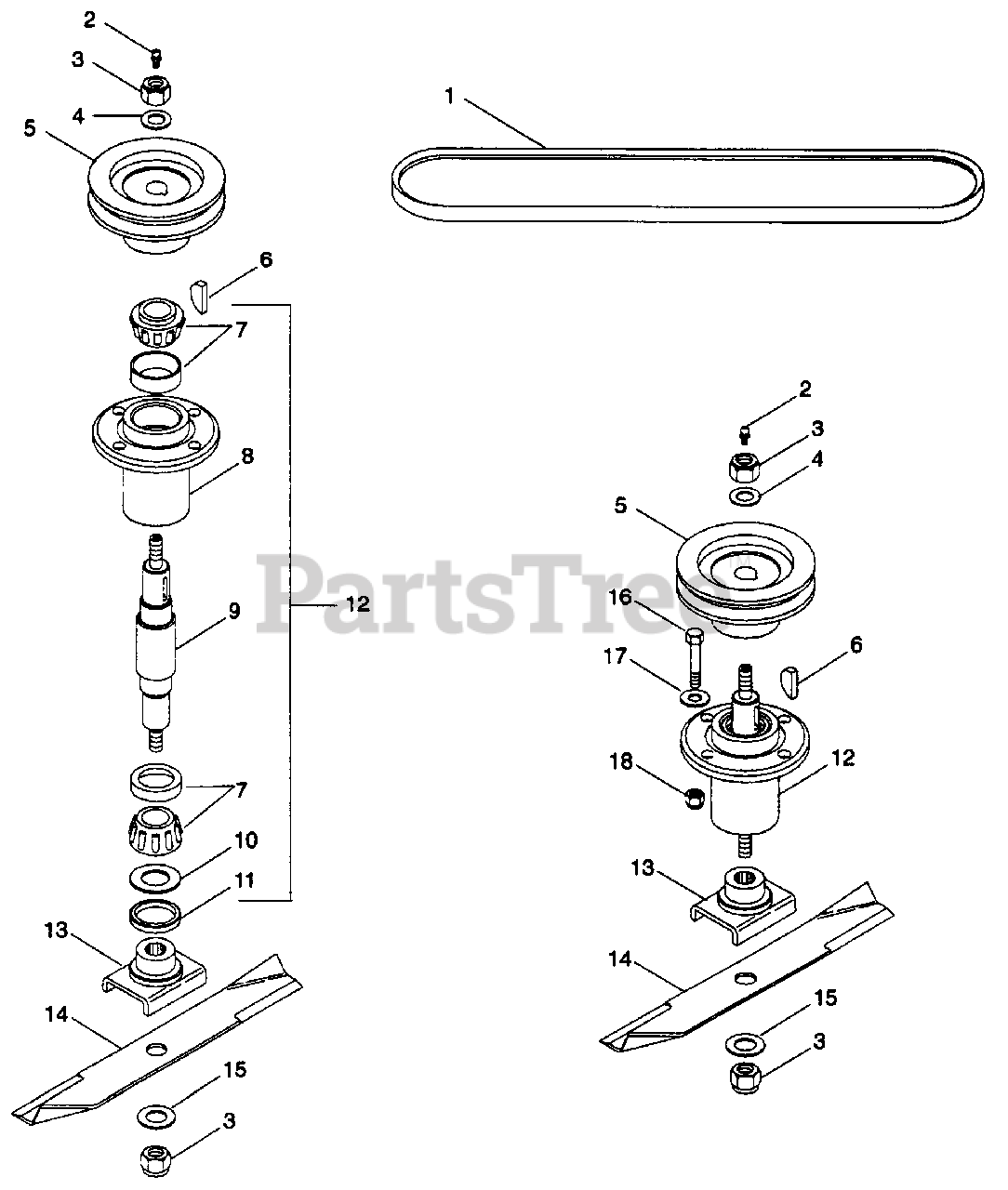

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 072216

V-BELT A-RMA 34.65 X 33/64
(Superseded to 07238600)

$69.99

$

Usually ships in 4-12 days

0

2

Gravely 411010

FTG, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

3

Gravely 418692

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 033845

WSHR-FL-STL .687 X 1.312 X .135
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 088727

SPINDLE SHEAVE
(Superseded to 08872700)

$79.99

$

In Stock, only 1 left!

0

6

Gravely 124553

KEY, WDRF .25 X 1 HRD # 15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

7

Gravely 038199

ASM, BEARING CUP & CONE
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

8

Gravely 021215

HSG, BEARING
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

9

Gravely 034603

SHFT, SPINDLE
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

10

Gravely 020743

WSHR-FL-STL .97 X 1.865 X .03
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

11

Gravely 021211

SL, STEEL
(Superseded to 08722600)

$15.99

$

In Stock, only 1 left!

0

12

Gravely 034605

ASM, SPINDLE
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

13

Gravely 023026

WLDMT, BLADE CRDL
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

14

Gravely 042124

BLD, 36 MOWER
(Superseded to 08816600)

$20.99

$

In Stock, only 2 left!

0

15

Gravely 131016

WSHR-FL-STL .656 X 1.312 X .095 PL
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 180124

BLT-HEX .38-16 X 1.25 PL GR 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 120388

WSHR-FL-STL .438 X 1.000 X .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 456008

NUT-LK-NYL .375-16 PL
(Superseded to 21305000)

$

$

Not available

NS

Gravely 088740

BELT FINGER, PRO 150 DECK
(Superseded to 08874000)

$

$

Not available
