888045 - Gravely 40" Deck for Pro-Walk Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

40" Deck for Pro-Walk Mower

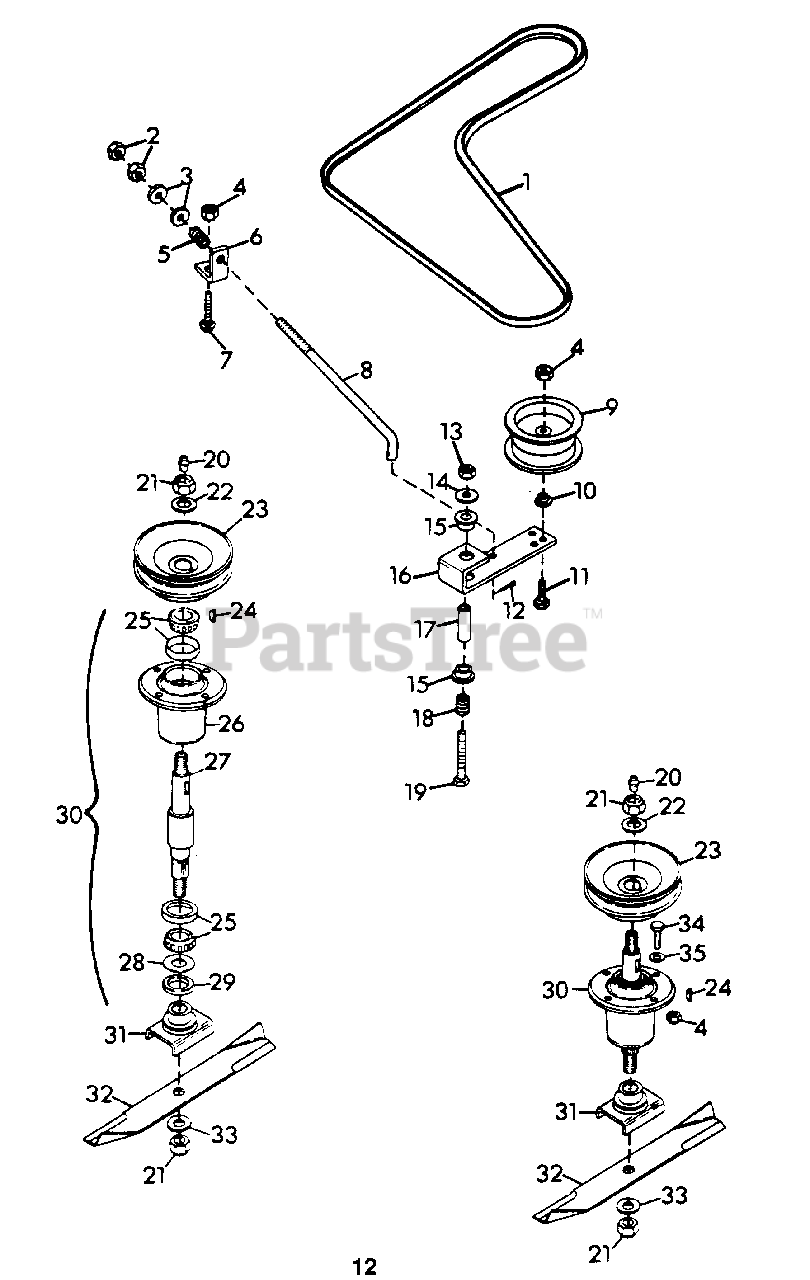

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 043318

Belt, Pro-40 Mower
(Superseded to 07221300)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 120369

Nut, Hex 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 011779

Spring, Comp. 1x.78x338 Lb/N
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

6

Gravely 034287

Bracket, Belt Tensioner
(Superseded to 08802700)

$

$

Not available

7

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

8

Gravely 021111

Rod, Idler
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

9

Gravely 034286

Pulley, Idler
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

10

Gravely 024815

Bushing
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

11

Gravely 180132

Bolt, Hex 3/8-16x2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

13

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

15

Gravely 010174

Bushing, Nylon .76x1.00x.600 Flg.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

17

Gravely 034119

Spacer
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

18

Gravely 020444

Spring, Comp. 1x.80x36 Lb/N
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

19

Gravely 180191

Bolt, Hex 1/2-13x3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 033845

Washer, Flat .687x1.312x.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 034282

Sheave, Spindle
(Superseded to 08946700)

$261.99

$

Usually ships in 4-12 days

0

24

Gravely 124553

Key, Woodruff 1/4x1 Hard
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

25

Gravely 038199

Assembly, Bearing
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

26

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

27

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0

28

Gravely 020743

Washer, Flat .975x1.970x.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 9

0

29

Gravely 021211

Seal, Steel
(Superseded to 08722600)

$15.99

$

Usually ships in 4-12 days

0

30

Gravely 034605

Assembly, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

31

Gravely 023026

Weldment, Blade Cradle
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

32

Gravely 025124

Blade
(Superseded to 08904600)

$

$

Not available

33

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 180124

Bolt, Hex 3/8-16x1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 120388

Washer, Flat .438x1.000x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
