888031 - Gravely 60" Deck for Gear Drive Pro-Master Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

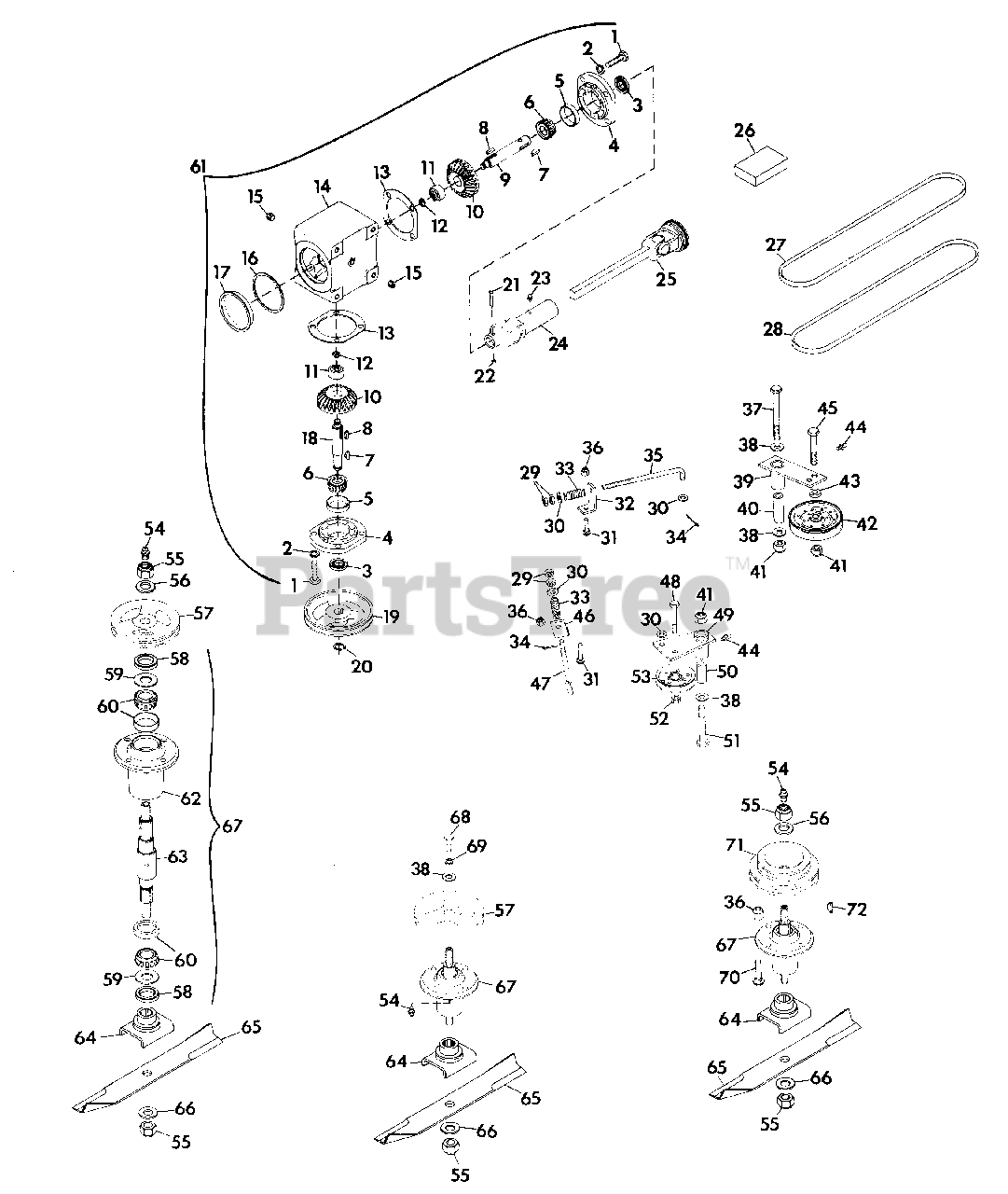

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 120214

WASHER, LOCK 5/16 REG
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 035678

SEAL
(Superseded to 20627200)

$

$

Not available

4

Gravely 035673

COVER
(Superseded to 20626700)

$31.99

$

Usually ships in 4-12 days

0

5

Gravely 009245

CUP, BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

6

Gravely 009246

CONE, BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

7

Gravely 124551

KEY, WOODRUFF .250X.875 HRD #A
(Superseded to 06608800)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 022538

KEY, SQUARE
(Superseded to 21158600)

$

$

Not available

9

Gravely 035675

SHAFT
(Superseded to 20626900)

$

$

Not available

10

Gravely 035676

GEAR, 1:1
(Superseded to 20627000)

$

$

Not available

11

Gravely 022535

BEARING SET
(Superseded to 21304400)

$

$

Not available

12

Gravely 022539

RING, RETAINING
(Superseded to 21158700)

$

$

Not available

13

Gravely 035679

SHIM
(Superseded to 20627300)

$

$

Not available

14

Gravely 035677

CASE
(Superseded to 20627100)

$

$

Not available

15

Gravely 444860

PLUG, PIPE

$

$

Not available

16

Gravely 035672

GASKET
(Superseded to 20626600)

$

$

Not available

17

Gravely 022534

PLATE, COVER
(Superseded to 21158300)

$

$

Not available

18

Gravely 035674

SHAFT
(Superseded to 20626800)

$

$

Not available

19

Gravely 035417

PULLEY, GEARBOX
(Superseded to 08914500)

$244.99

$

Usually ships in 4-12 days

0

20

Gravely 022080

RING, RETAINING .875 SHAFT
(Superseded to 05713900)

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 180089

BOLT, HEX 5/16-18X2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

24

Gravely 035418

ASM, U-JOINT
(Superseded to 08737451)

$

$

Not available

25

Gravely 031389

SHAFT, PROP. SQ. BAR
(Superseded to 08729300)

$

$

Not available

26

Gravely 024560

KIT, REPAIR UNIVERSAL SHAFT
(Superseded to 03155800)

$

$

Not available

27

Gravely 031369

BELT, "A"
(Superseded to 07219600)

$80.99

$

In Stock, only 3 left!

0

28

Gravely 031383

BELT, "B"
(Superseded to 07219700)

$59.99

$

Usually ships in 4-12 days

0

29

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

30

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 031346

SUPPORT, SPRING "B"
(Superseded to 08905100)

$16.99

$

Usually ships in 4-12 days

0

33

Gravely 011779

SPRING, COMPRESSION
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

34

Gravely 179252

PIN, COTTER 1/16X1.00
(Superseded to 06707500)

$0.99

$

In Stock, only 2 left!

0

35

Gravely 021111

ROD, IDLER
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

36

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

37

Gravely 180192

BOLT, HEX 1/2-13X3.75
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

38

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

39

Gravely 031360

WELDMENT, IDLER PIVOT "B"
(Superseded to 08728500)

$

$

Not available

40

Gravely 031363

SPACER, .850X.546X2.50
(Superseded to 08826500)

$51.99

$

Usually ships in 4-12 days

0

41

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 022063

PULLEY, FLAT IDLER
(Superseded to 07316700)

$63.99

$

In Stock, only 2 left!

0

43

Gravely 031368

SPACER, .516X.875X.300
(Superseded to 09036100)

$36.99

$

Usually ships in 4-12 days

0

44

Gravely 014406

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

45

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

46

Gravely 031345

SUPPORT, SPRING "A"
(Superseded to 08727900)

$3.49

$

Usually ships in 4-12 days

0

47

Gravely 021112

ROD, IDLER
(Superseded to 03351200)

$

$

Not available

48

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 031364

WELDMENT, IDLER PIVOT "A"
(Superseded to 08728700)

$11.99

$

Usually ships in 4-12 days

0

50

Gravely 031367

SPACER, .850X.546X2.18
(Superseded to 08827800)

$

$

Not available

51

Gravely 126803

BOLT, 1/2-13X3.50 RD HD SQ NK
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

52

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

53

Gravely 021060

SHEAVE, IDLER
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

54

Gravely 411010

FITTING, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

55

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

56

Gravely 033845

WASHER, FLAT .687X1.312X.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

57

Gravely 031359

PULLEY
(Superseded to 08895100)

$168.99

$

Usually ships in 4-12 days

0

58

Gravely 021211

SEAL, STEEL(CENTER & RIGHT SPINDLE)
(Superseded to 08722600)

Note: (CENTER & RIGHT SPINDLE)

$15.99

$

Usually ships in 4-12 days

0

58

Gravely 021211

SEAL, STEEL(LEFT SPINDLE)
(Superseded to 08722600)

Note: (LEFT SPINDLE)

$15.99

$

Usually ships in 4-12 days

0

59

Gravely 020743

WASHER, FLAT .975X1.970X.030(CENTER & RIGHTSPINDLE)
(Superseded to 06426900)

Note: (CENTER & RIGHTSPINDLE)

$5.99

$

In Stock, Qty 9

0

59

Gravely 020743

WASHER, FLAT .975X1.970X.030(LEFT SPINDLE)
(Superseded to 06426900)

Note: (LEFT SPINDLE)

$5.99

$

In Stock, Qty 9

0

60

Gravely 038199

ASSEMBLY, BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

61

Gravely 035680

BOX, GEAR RIGHT ANGLE
(Superseded to 08960000)

$

$

Not available

62

Gravely 021218

HOUSING, BEARING MOWER(CENTER SPINDLE)
(Superseded to 08722900)

Note: (CENTER SPINDLE)

$

$

Not available

62

Gravely 021215

HOUSING, BEARING(LEFT & RIGHT SPINDLE)
(Superseded to 08722700)

Note: (LEFT & RIGHT SPINDLE)

$134.99

$

Usually ships in 4-12 days

0

63

Gravely 021216

SHAFT, SPINDLE(RIGHT)
(Superseded to 58802800)

Note: (RIGHT)

$85.99

$

In Stock, only 1 left!

0

63

Gravely 031356

SHAFT, SPINDLE(CENTER)
(Superseded to 08899900)

Note: (CENTER)

$137.99

$

Usually ships in 4-12 days

0

63

Gravely 034603

SHAFT, SPINDLE(LEFT)
(Superseded to 58802900)

Note: (LEFT)

$125.99

$

In Stock, only 1 left!

0

64

Gravely 023026

WELDMENT, BLADE CRADLE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

65

Gravely 025124

BLADE
(Superseded to 08904600)

$

$

Not available

66

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

67

Gravely 021306

ASM, SPINDLE(RIGHT)
(Superseded to 58803600)

Note: (RIGHT)

$262.99

$

In Stock, only 1 left!

0

67

Gravely 035646

ASM, SPINDLE(CENTER)
(Superseded to 58803700)

Note: (CENTER)

$355.99

$

Usually ships in 4-12 days

0

67

Gravely 034605

ASM, SPINDLE(LEFT)
(Superseded to 58803600)

Note: (LEFT)

$262.99

$

In Stock, only 1 left!

0

68

Gravely 022065

BOLT, HEX SPEC. 1/2-13X1.34
(Superseded to 08724300)

$27.99

$

Usually ships in 4-12 days

0

69

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

70

Gravely 126406

BOLT, 3/8-16X1.375 RD HD SQ NK
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

71

Gravely 035015

PULLEY, DRIVE
(Superseded to 08736700)

$

$

Not available

72

Gravely 124553

KEY, WOODRUFF
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0
