888029 - Gravely 40" Deck for Pro-Walk Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

40" Deck for Pro-Walk Mower

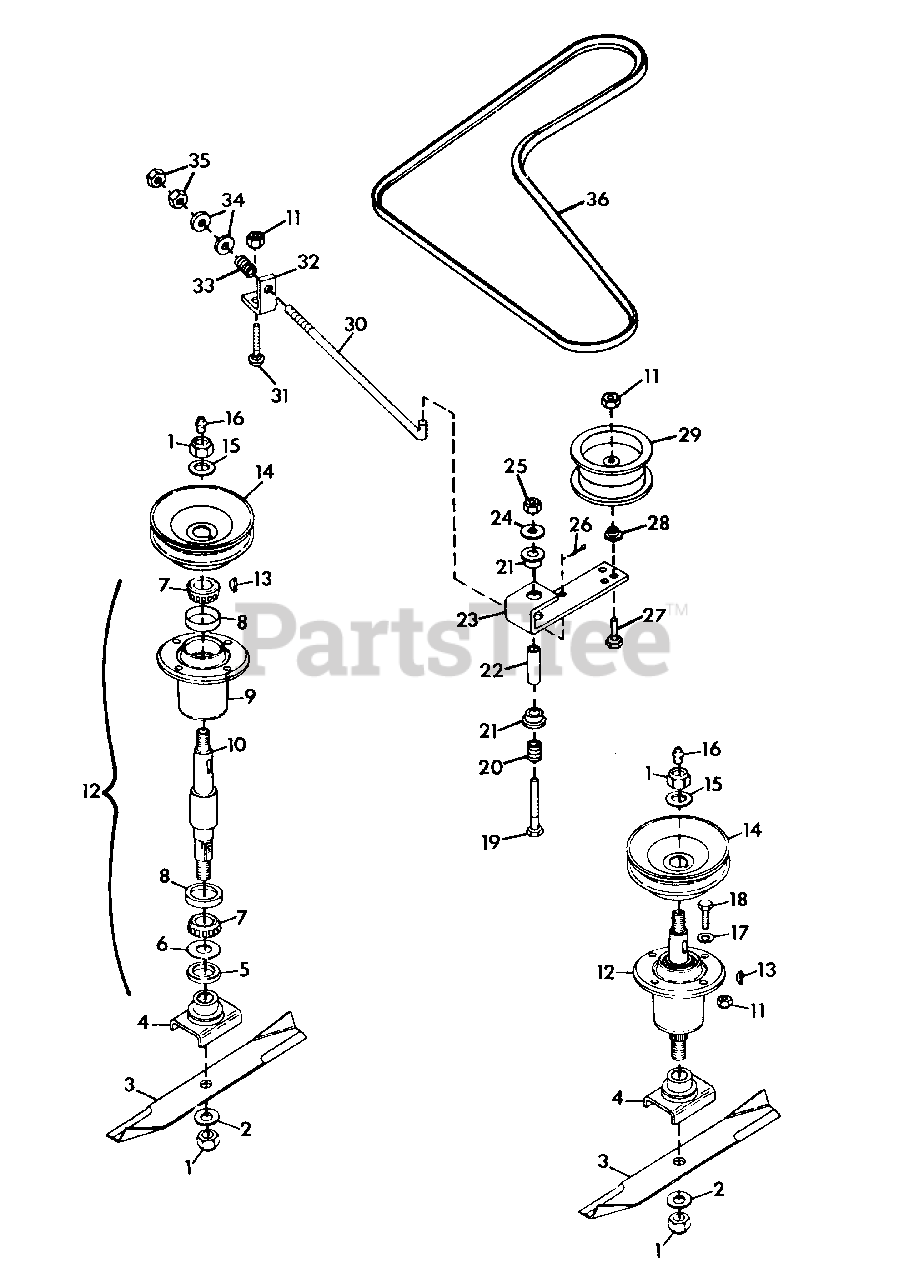

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 025124

BLADE
(Superseded to 08904600)

$

$

Not available

4

Gravely 023026

CRADLE, BLADE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

5

Gravely 021211

SEAL, STEEL
(Superseded to 08722600)

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 020743

WASHER, FLAT .975X1.970X.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 9

0

7

Gravely 009246

CONE, ROLLER BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

8

Gravely 009245

CUP, ROLLER BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

9

Gravely 021215

HOUSING, BEARING
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

10

Gravely 034603

SHAFT, SPINDLE
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

11

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 034605

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

13

Gravely 124553

KEY, WOODRUFF 1/4X1 HARD
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

14

Gravely 034282

SHEAVE, SPINDLE
(Superseded to 08946700)

$261.99

$

Usually ships in 4-12 days

0

15

Gravely 033845

WASHER, FLAT .687X1.312X.130
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 411010

FITTING, LUBE 1/8 NPT
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 120388

WASHER, FLAT .438X1.00X.800
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 180124

BOLT, HEX 3/8-16X1.250
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 020444

SPRING, COMPRESSION 1X.80X36 LB/N
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

21

Gravely 010174

BUSHING, NYLON .760X1.00X.600
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 034119

SPACER
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

23

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

24

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

25

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 121222

PIN, COTTER .09X.62
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

27

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 024815

BUSHING
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

29

Gravely 034286

PULLEY, IDLER
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

30

Gravely 021111

ROD, IDLER
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

31

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

32

Gravely 034287

BRACKET, BELT TENSIONER
(Superseded to 08802700)

$

$

Not available

33

Gravely 011779

SPRING, COMPRESSION 1.00X.78
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

34

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

36

Gravely 034289

BELT, V-DRIVE
(Superseded to 20599100)

$

$

Not available
