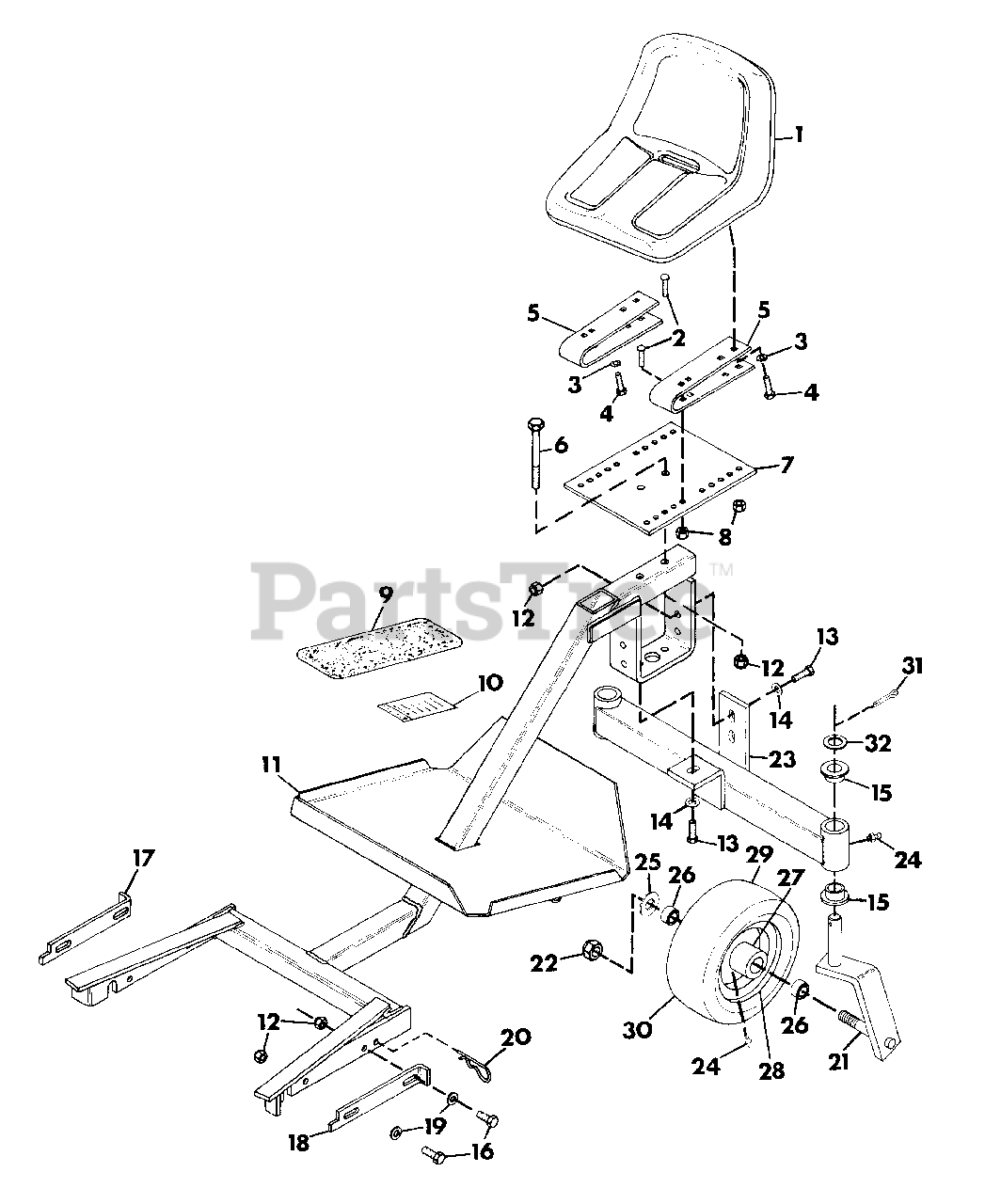

888025 - Gravely Pro Series Sulky Ride (SN: 000101 & Above) RIDING SULKY Parts Diagram

Pro Series Sulky Ride

RIDING SULKY Parts Diagram

  • Title

1

Gravely 021423

SEAT, HIGH BACK
(Superseded to 59100200)

$

$

Not available

2

Gravely 126353

BOLT, 5/16-18X.875 RD HD SQ NK
(Superseded to 06209200)

$

$

Not available

3

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 038806

SPRING, SEAT
(Superseded to 08809151)

$

$

Not available

6

Gravely 180137

BOLT, HEX 3/8-16X2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 035111

PLATE, SEAT SUPPORT
(Superseded to 21237200)

$

$

Not available

8

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 011653

COVER, LARGE FOOTBOARD
(Superseded to 09023200)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 035752

DECAL, SULKY PRO 40/PRO 50
(Superseded to 05209600)

$

$

Not available

11

Gravely 038973

WELDMENT, FRAME
(Superseded to 20656700)

$

$

Not available

12

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

16

Gravely 180123

BOLT, HEX 3/8-16X1.125

$

$

Not available

17

Gravely 035113

STRAP, SULKY LATCH R.H.
(Superseded to 21237400)

$

$

Not available

18

Gravely 035112

STRAP, SULKY LATCH L.H.
(Superseded to 21237300)

$

$

Not available

19

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

21

Gravely 038967

WELDMENT, CASTER FORK
(Superseded to 08810100)

$

$

Not available

22

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

23

Gravely 038972

WELDMENT, AXLE
(Superseded to 08810600)

$

$

Not available

24

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

25

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 026077

BEARING
(Superseded to 05423900)

$

$

Not available

27

Gravely 031019

WHEEL
(Superseded to 07134000)

$

$

Not available

28

Gravely 026509

TUBE
(Superseded to 21373800)

$

$

Not available

29

Gravely 026526

TIRE
(Superseded to 07128200)

$

$

Not available

30

Gravely 028221

ASSEMBLY, WHEEL AND TIRE
(Superseded to 07128400)

$

$

Not available

31

Gravely 137253

PIN, COTTER .187X1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

NS

Gravely 038056

DECAL, AMERICA
(Superseded to 20644900)

$

$

Not available
