888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 011000 & Above) Mower Frame Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

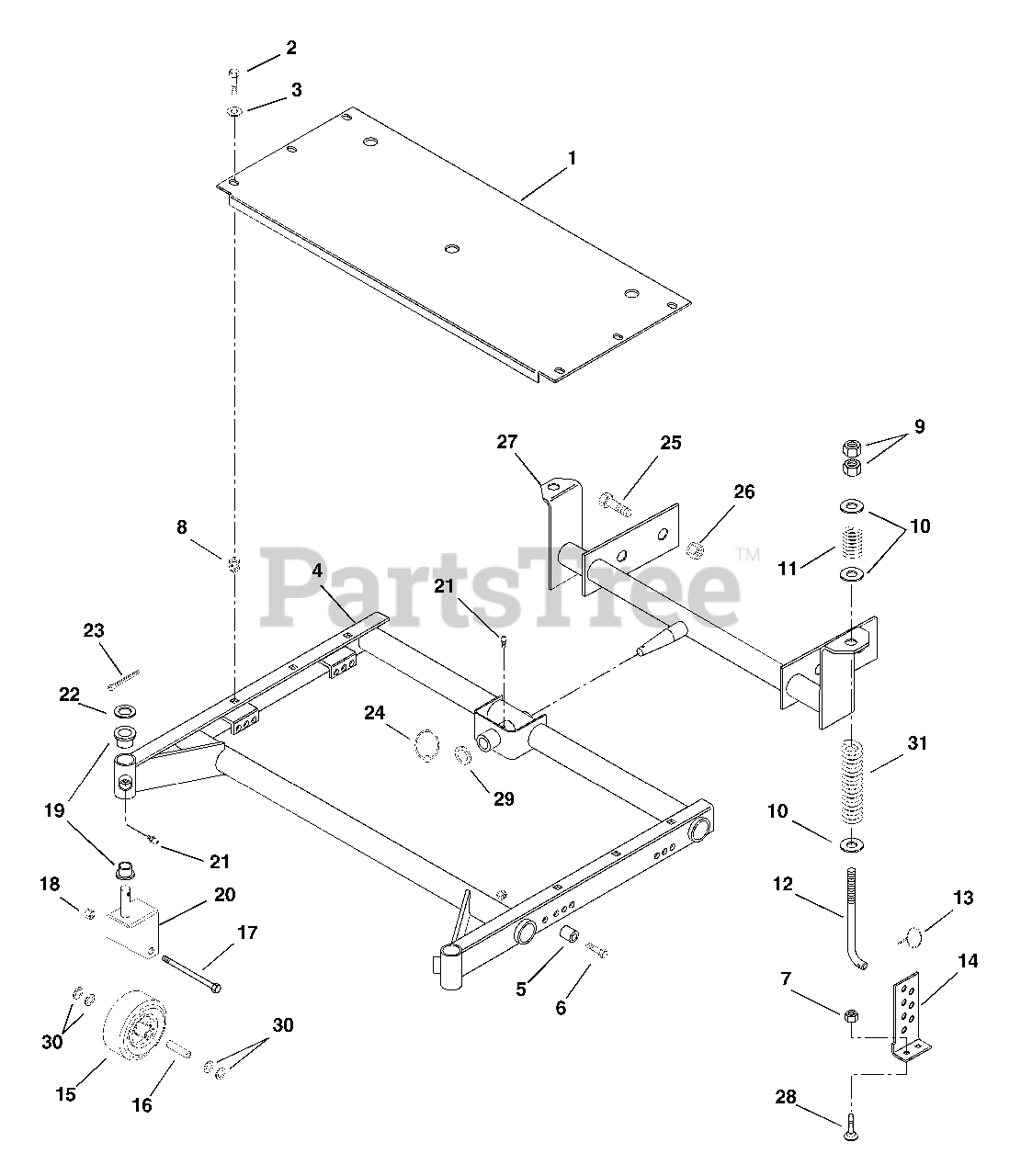

Mower Frame Parts Diagram

  • Title

1

Gravely 08869700

Guard, 50" Mower Belt
(Superseded to 08869800)

$

$

Not available

2

Gravely 045207

Screw-Tapping, .25-20 x .50 Hex Slot Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08852100

Weldment, Mower Frame

$205.99

$

Usually ships in 4-12 days

0

5

Gravely 050396

Bushing, .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

7

Gravely 456004

Nut-Locking-Nylon .38-16 w/ Insr Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 120378

Nut .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 011779

Spring-Compression .125 x 1.00 338 lbs/in
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 035690

Rod, Height Adjuster
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

13

Gravely 023468

Pin-Klik 1.000 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 08852900

Bracket, Rear Adjuster Left Hand
(Superseded to 08852953)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 08852800

Bracket, Rear Adjuster Right Hand

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 045205

Wheel, Gauge 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

16

Gravely 011950

Spacer .532 x .748 x 3.34
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 445608

Bolt-Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 018355

Bushing-Flange 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

20

Gravely 09066400

Weldment, Caster Fork

$193.99

$

In Stock, only 1 left!

0

21

Gravely 411027

Fitting, Lube .25-28 x 2.56
(Superseded to 07012600)

$

$

Not available

22

Gravely 019340

Washer-Hardened Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 103409

Pin-Cotter .188 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

24

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

25

Gravely 271547

Bolt-Hex .62-11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

26

Gravely 418692

Nut-Locking .62-11 Hex w/ Insr
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 08851700

Weldment, Mower Frame Mounting

$

$

Not available

28

Gravely 126227

Bolt-Round Head Square Neck .38-16 x .75 Grade 1
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

29

Gravely 011223

Bearing-Needle-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

30

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

31

Gravely 08316500

Spring-Compression .095 x .75 x 6.25

$9.49

$

Usually ships in 4-12 days

0
