888015 - Gravely 50" Floating Fab Deck for Pro-Walk Mower (SN: 000101 - 000594) MOWER DRIVE Parts Diagram

50" Floating Fab Deck for Pro-Walk Mower

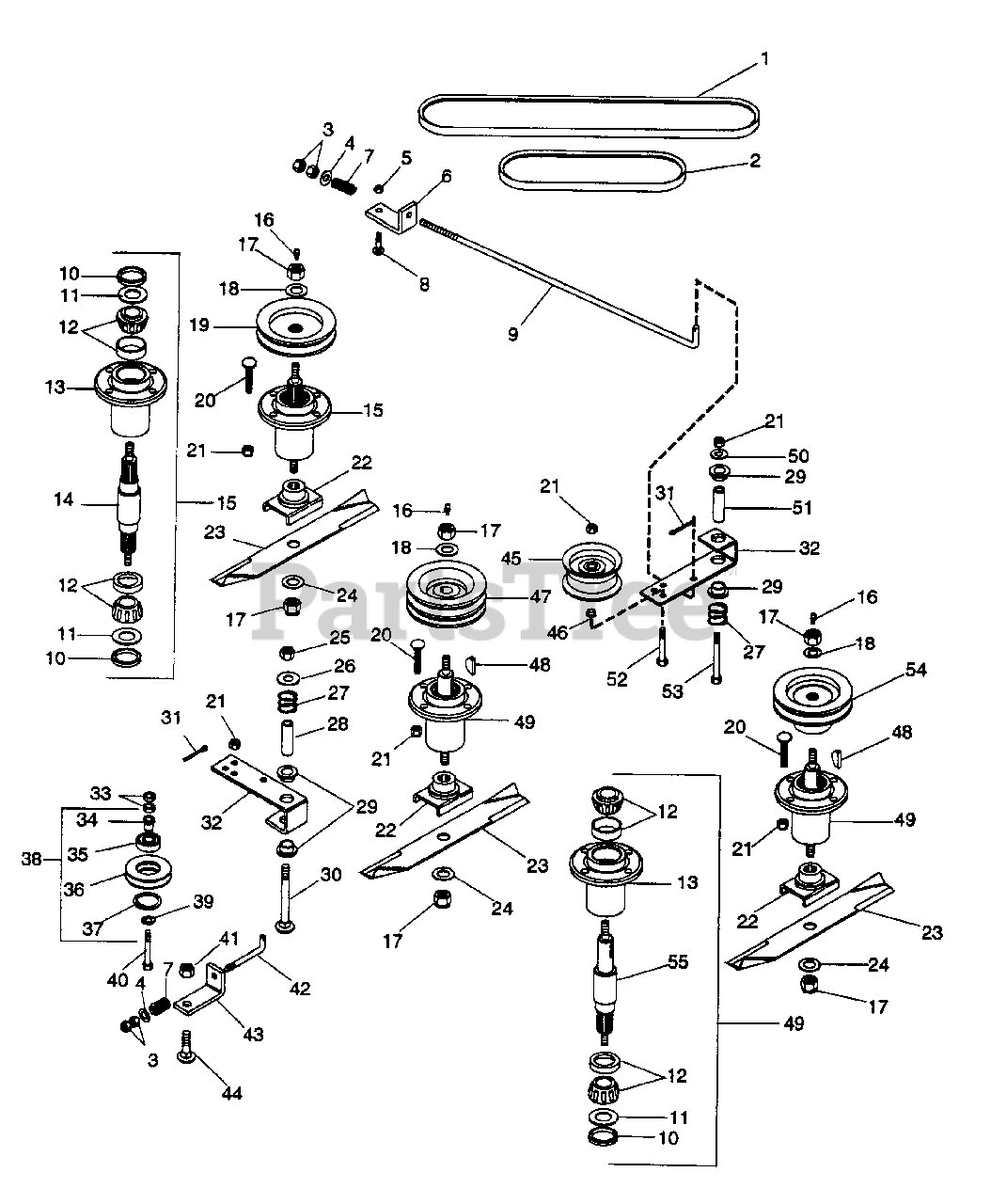

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07223900

BELT, PRO MWR

$59.99

$

Usually ships in 4-12 days

0

2

Gravely C034944

BELT, MOWER A44

$

$

Not available

3

Gravely C120377

NUT - HEX .375 - 16

$

$

Not available

4

Gravely C120394

WSHR - FL - STL .281 X .625 X .065

$

$

Not available

5

Gravely C419455

NUT - LK - NYL .312 - 18 PL

$

$

Not available

6

Gravely C034287

BRKT, BELT TENSIONER

$

$

Not available

7

Gravely C011779

SG - COMP .188 X 1.66 X 2.0

$

$

Not available

8

Gravely C126358

BLT, CARRIAGE 5/16 - 18 X 1.0

$

$

Not available

9

Gravely C031913

ROD, IDLER L.H.

$

$

Not available

10

Gravely C021211

SL, STEEL

$

$

Not available

11

Gravely C020743

WSHR - FL - STL .97 X 1.865 X .03

$

$

Not available

12

Gravely C038199

ASM, BEARING CUP & CONE

$

$

Not available

13

Gravely C021215

HSG, BEARING

$

$

Not available

14

Gravely C021216

SHFT, SPINDLE

$

$

Not available

15

Gravely C021306

SPNDL, ASSEMBLY
(Superseded to 021306)

$267.99

$

In Stock, only 1 left!

0

16

Gravely C411010

FTG, LUBE 1/8

$

$

Not available

17

Gravely C418692

NUT, LK 5/8 - 1.1 HEX W/INSR

$

$

Not available

18

Gravely C033845

WSHR - FL - STL .687 X 1.312 X .135

$

$

Not available

19

Gravely C043366

SHEAVE, SPINDLE

$

$

Not available

20

Gravely C126406

BLT - RDHDSQNK .38 - 16 X 1.375

$

$

Not available

21

Gravely C456004

NUT - LK - NYL .375 - 16 PL

$

$

Not available

22

Gravely C047684

WLDMT, BLADE CRADLE

$

$

Not available

23

Gravely C046998

BLD, 50 INCH MOWER

$

$

Not available

24

Gravely C131016

WSHR - FL - STL .656 X 1.312 X .095 PL

$

$

Not available

25

Gravely C414074

NUT - LK .50 - 13 HEX TYPE N

$

$

Not available

26

Gravely C415543

WSHR - FL - STL .531 X 1.250 X .100

$

$

Not available

27

Gravely C020444

SG - COMP

$

$

Not available

28

Gravely C034119

BUSH., S .560 X .750 X 2.44 ST

$

$

Not available

29

Gravely C049669

BSHG - FLG .762 X 1.0 X .580 X 1.48 NY

$

$

Not available

30

Gravely C126803

BLT - RDHDSQNK .50 - 13 X 3.50

$

$

Not available

31

Gravely C121222

PIN - COTR .09 X .75 PL

$

$

Not available

32

Gravely C034120

ARM, IDLER PIVOT

$

$

Not available

33

Gravely C014672

BUSHING .406 X .750 X .188

$

$

Not available

34

Gravely C038897

BSHG - FLG .786 X 1.0 X .79

$

$

Not available

35

Gravely C038898

BRG - BALL 1.85 X .787 X .55

$

$

Not available

36

Gravely C038896

SHEAVE, IDLER

$

$

Not available

37

Gravely C018960

RG - RTNG - INT 2.054 X .062

$

$

Not available

38

Gravely C038900

ASM, IDLER SHEAVE

$

$

Not available

39

Gravely C446470

WASHER, FLT .375 X 1.125 X .065

$

$

Not available

40

Gravely C180130

BLT - HEX .38 - 16 X 2.00 PL GR 5

$

$

Not available

41

Gravely C435507

NUT - LK - NYL .50 - 13 PL

$

$

Not available

42

Gravely C038714

ROD, IDLER

$

$

Not available

43

Gravely C038713

BRKT, BELT TENSIONER

$

$

Not available

44

Gravely C120917

BLT - RDHDSQNK .50 - 13 X 1.50

$

$

Not available

45

Gravely C034286

IDLER - FLAT 4 - .687 X .38

$

$

Not available

46

Gravely C024815

BSHG - FLG .406 X .88 X .270 X .140

$

$

Not available

47

Gravely C034935

SHEAVE, SPINDLE

$

$

Not available

48

Gravely C124553

KEY, WDRF 1/4 X 1 HRD #15

$

$

Not available

49

Gravely C034605

ASM, SPINDLE

$

$

Not available

50

Gravely C120388

WSHR - FL - STL .438 X 1.000 X .083

$

$

Not available

51

Gravely C034938

BUSH., S .437 X .750 X 2.44 ST

$

$

Not available

52

Gravely C180132

BLT - HEX .38 - 16 X 2.25 GR 5

$

$

Not available

53

Gravely C189304

BLT - HEX .38 - 16 X 3.25 PL GR 5

$

$

Not available

54

Gravely C034936

SHEAVE, SPINDLE

$

$

Not available

55

Gravely C034603

SHFT, SPINDLE

$

$

Not available
