888014 - Gravely Pro Series Sulky Ride (SN: 000101 & Above) RIDING SULKY Parts Diagram

Pro Series Sulky Ride

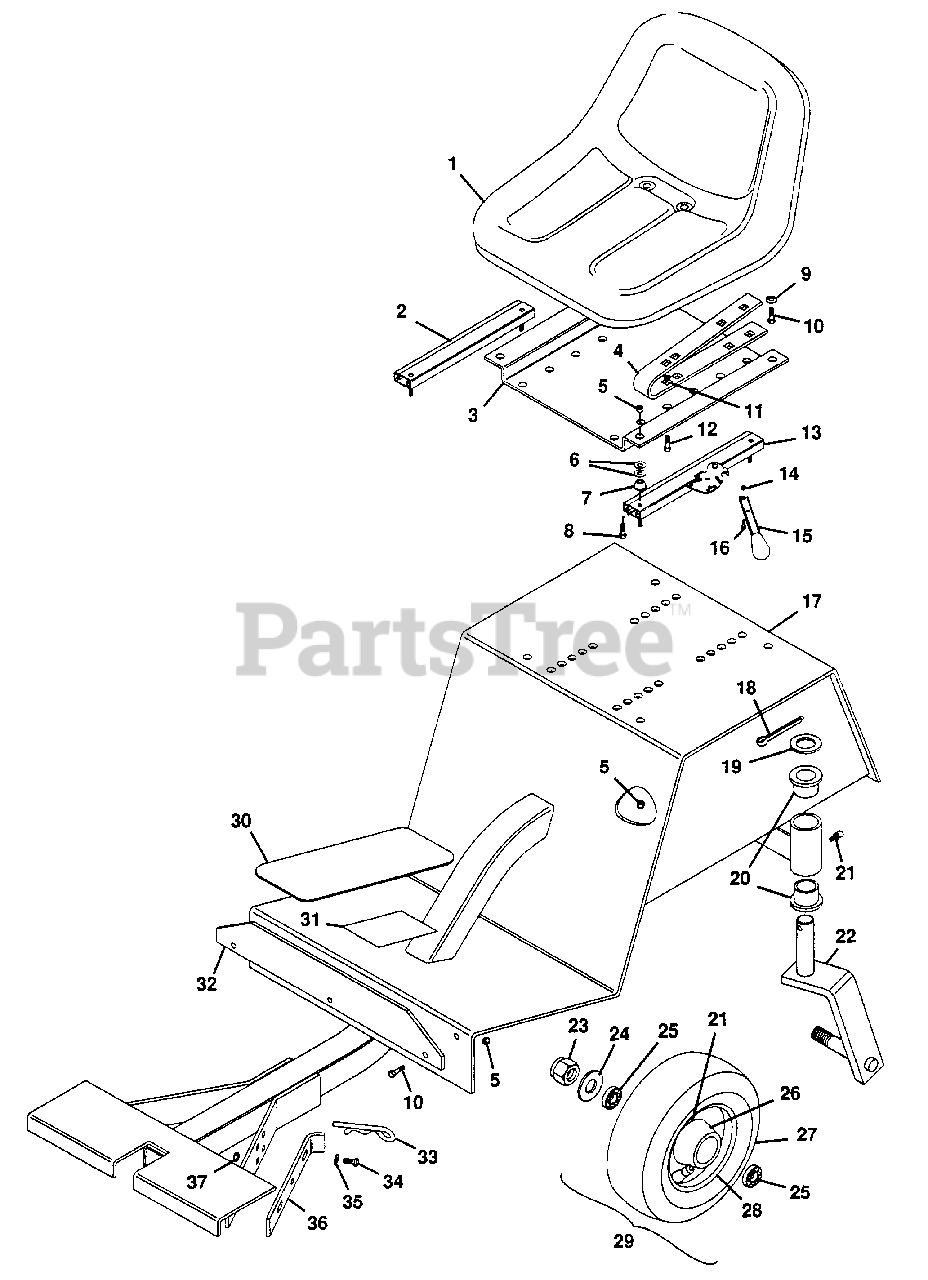

RIDING SULKY Parts Diagram

  • Title
1

Gravely 038940

Seat, High Back
(Superseded to 59100200)

$

$

Not available

2

Gravely 035642

Adjuster, Seat
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

3

Gravely 042146

Plate
(Superseded to 08816800)

$

$

Not available

4

Gravely 038806

Spring, Seat
(Superseded to 08809151)

$

$

Not available

5

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 035670

Bushing, Flange Steel
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

8

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

9

Gravely 120214

Washer, lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 035641

Adjuster, Seat w/ Latch
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

14

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 035643

Handle, Seat Adjuster
(Superseded to 08650800)

$

$

Not available

16

Gravely 159929

Screw, Mach 10-24x.625 P/Hd
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

17

Gravely 050375

Weldment, Sulky Frame
(Superseded to 08840200)

$

$

Not available

18

Gravely 137253

Pin, Cotter .187x1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 018355

Bushing, Pivot
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

21

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

22

Gravely 038967

Weldment, Caster Fork
(Superseded to 08810100)

$

$

Not available

23

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

24

Gravely 131017

Washer, Flat .812x1.496x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 026077

Bearing
(Superseded to 05423900)

$

$

Not available

26

Gravely 031019

Wheel
(Superseded to 07134000)

$

$

Not available

27

Gravely 026526

Tire
(Superseded to 07128200)

$

$

Not available

28

Gravely 026509

Tube
(Superseded to 21373800)

$

$

Not available

29

Gravely 028221

Assembly, Wheel and Tire
(Superseded to 07128400)

$

$

Not available

30

Gravely 011653

Cover, Large Footboard
(Superseded to 09023200)

$14.99

$

Usually ships in 4-12 days

0

31

Gravely 035752

Decal, Sulky
(Superseded to 05209600)

$

$

Not available

32

Gravely 042098

Plate, Toe Guard
(Superseded to 08815800)

$

$

Not available

33

Gravely 010405

Pin, Hair
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

34

Gravely 180123

Bolt, Hex 3/8-16x1.125

$

$

Not available

35

Gravely 446470

Washer, Flat .375x1.125x.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

36

Gravely 042099

Strap, Sulky Latch
(Superseded to 08815900)

$

$

Not available

37

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
