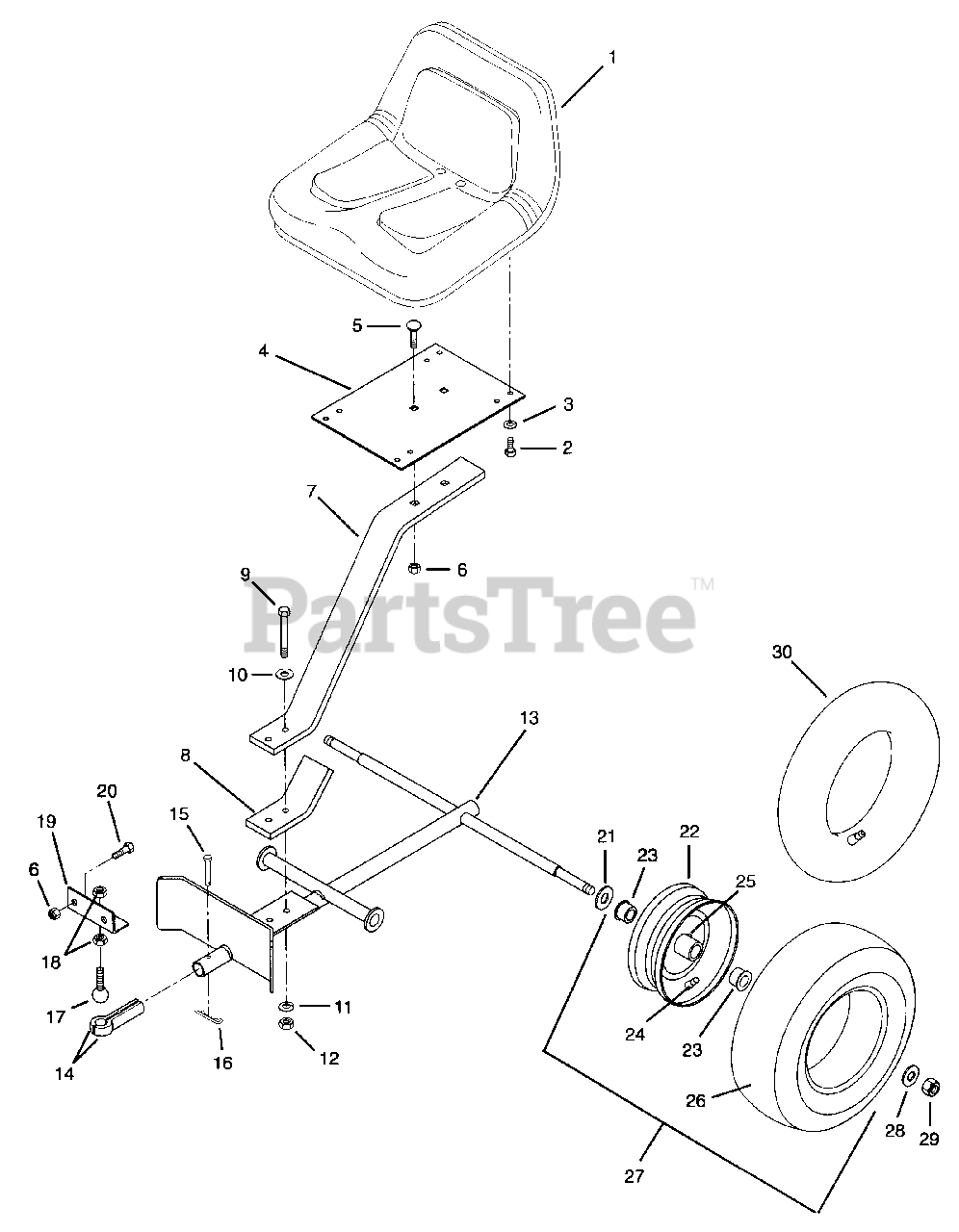

888009 - Gravely Pro Series Sulky Ride (SN: 000801 & Above) SULKY Parts Diagram

Pro Series Sulky Ride

SULKY Parts Diagram

  • Title

1

Gravely 040227

Seat
(Superseded to 09112400)

$

$

Not available

2

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 042563

Plate
(Superseded to 08818900)

$

$

Not available

5

Gravely 06223100

Bolt-Round Head Square Neck .50-13 x 1.50
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

6

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 08819153

Seat Support

$

$

Not available

8

Gravely 017839

Plate, Reinforcement
(Superseded to 08505453)

$

$

Not available

9

Gravely 05965800

Bolt-Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

10

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 06307300

Washer-Lock .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Gravely 06529300

Nut-Jam .50-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08819353

Weldment, Frame

$

$

Not available

14

Gravely 012572

Socket, Split
(Superseded to 08866600)

$51.99

$

Usually ships in 4-12 days

0

15

Gravely 011685

Pin, Draw Bar
(Superseded to 08585600)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 036185

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 012570

Stud, Ball
(Superseded to 08589400)

$90.99

$

Usually ships in 4-12 days

0

18

Gravely 06539600

Nut-Jam .625-18

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 042561

Bracket
(Superseded to 08818700)

$

$

Not available

20

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

21

Gravely 06439000

Washer-Flat-Steel .812 x 1.50 x .139
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 010450

Wheel Assembly, less Tire/Tube
(Superseded to 20042300)

$

$

Not available

23

Gravely 012345

Bushing, Wheel
(Superseded to 21523400)

$21.99

$

Usually ships in 4-12 days

0

24

Gravely 411027

Fitting, Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

25

Gravely 011191

Assembly, Valve Stem
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

26

Gravely 012356

Tire
(Superseded to 20093800)

$

$

Not available

27

Gravely 010140

Wheel 3.5 x 4.6
(Superseded to 07132500)

Note: (Contains items 22-26)

$

$

Not available

28

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 06530300

Nut-Locking-Nylon .625-18
(Superseded to 06500936)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 013573

Tube, Tractor Tire
(Superseded to 20124600)

$

$

Not available
