888008 - Gravely 60" Fab Deck for Pro-Walk Mower (SN: 000367 & Above) MOWER DRIVE Parts Diagram

60" Fab Deck for Pro-Walk Mower

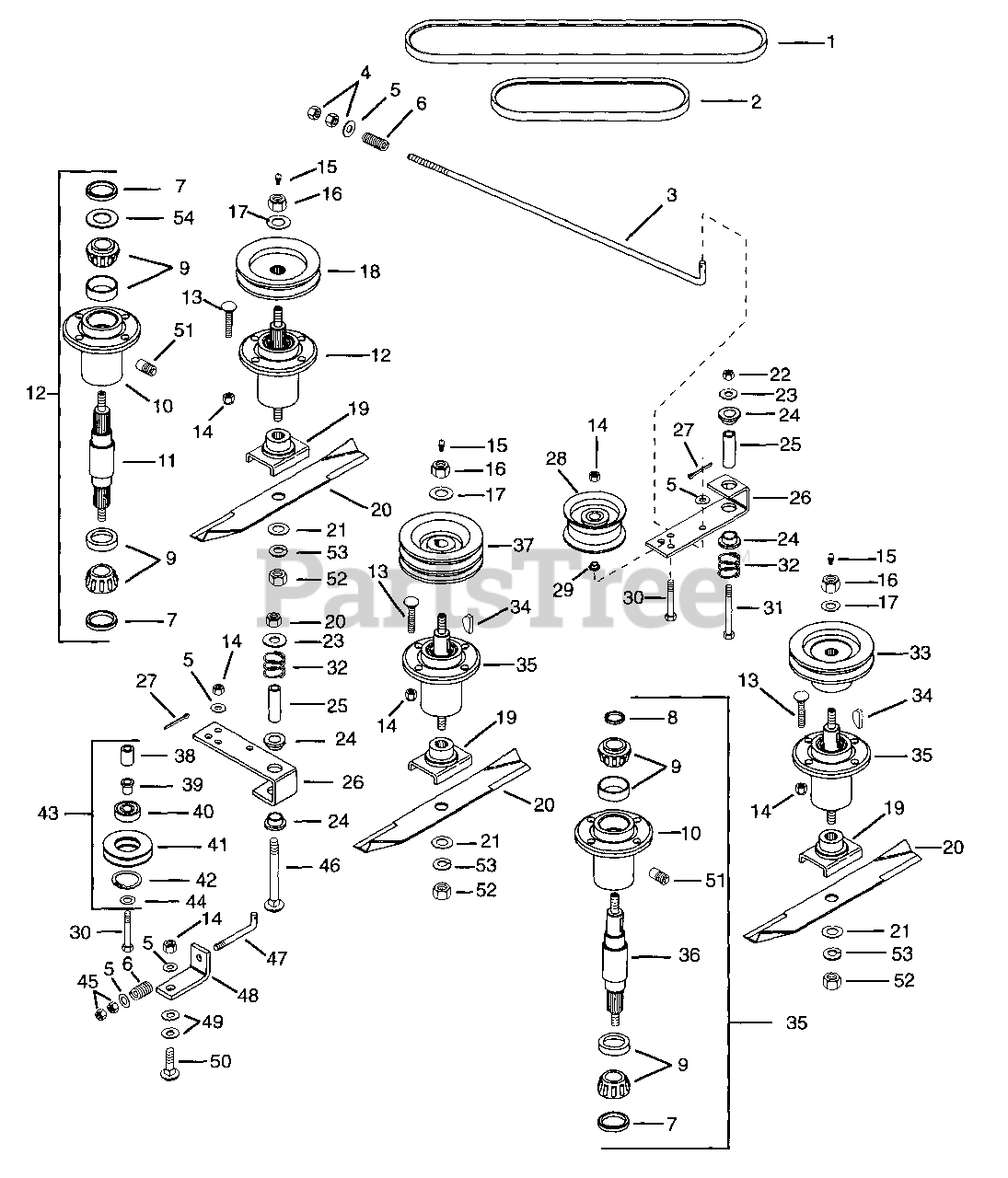

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 042205

V-Belt A-Section 45.10 x .495
(Superseded to 07220900)

$

$

Not available

2

Gravely 052974

V-Belt A-Section 24.90 x .500/.031
(Superseded to 07224300)

$42.99

$

In Stock, only 2 left!

0

3

Gravely 042196

Rod, Idler
(Superseded to 08877200)

$

$

Not available

4

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

7

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, only 2 left!

0

8

Gravely 05611400

Seal 1.987 x 1.500 x .313

$15.99

$

In Stock, only 1 left!

0

9

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

10

Gravely 08894500

Bearing Housing

$

$

Not available

11

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

12

Gravely 58801800

Service Kit Spindle Assembly
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

13

Gravely 126406

Bolt-Round Head Square Neck .38-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .150
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 08895100

Sheave

$168.99

$

Usually ships in 4-12 days

0

19

Gravely 08798700

Weldment Blade Cradle

$124.99

$

Usually ships in 4-12 days

0

20

Gravely 046999

Blade, 60 Inch Mower
(Superseded to 08979600)

$35.99

$

Usually ships in 4-12 days

0

21

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 414074

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

24

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 034119

Spacer .560 x .750 x 2.437
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

26

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

27

Gravely 121224

Pin-Cotter .09 x 1.0

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 034286

Idler-Flat 4-.687 x .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

29

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

30

Gravely 180132

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

31

Gravely 180192

Bolt-Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

32

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

33

Gravely 08895800

Sheave

$219.99

$

Usually ships in 4-12 days

0

34

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

35

Gravely 58801700

Service Kit Spindle Assembly
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

36

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

37

Gravely 08896100

Sheave

$297.99

$

Usually ships in 4-12 days

0

38

Gravely 042197

Bushing, Steel .406 x .625 x .480
(Superseded to 08836500)

$16.99

$

Usually ships in 4-12 days

0

39

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

40

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$

$

Not available

41

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

42

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

$242.99

$

Usually ships in 4-12 days

0

44

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

45

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 126803

Bolt-Round Head Square Neck .50-16 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

47

Gravely 049367

Rod, Idler
(Superseded to 08812600)

$109.99

$

Usually ships in 4-12 days

0

48

Gravely 038713

Bracket, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

49

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 126402

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

51

Gravely 08896800

Relief Fitting

$13.99

$

Usually ships in 4-12 days

0

52

Gravely 124589

Nut-Hex .525-11 Grade 2
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

53

Gravely 06300700

Washer-Lock .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

54

Gravely 06424700

Washer-Flat-Steel .203 x .469 x .049

$

$

Not available
