888007 - Gravely 50" Fab Deck for Pro-Walk Mower (SN: 000102 & Above) Mower Frame Parts Diagram

50" Fab Deck for Pro-Walk Mower

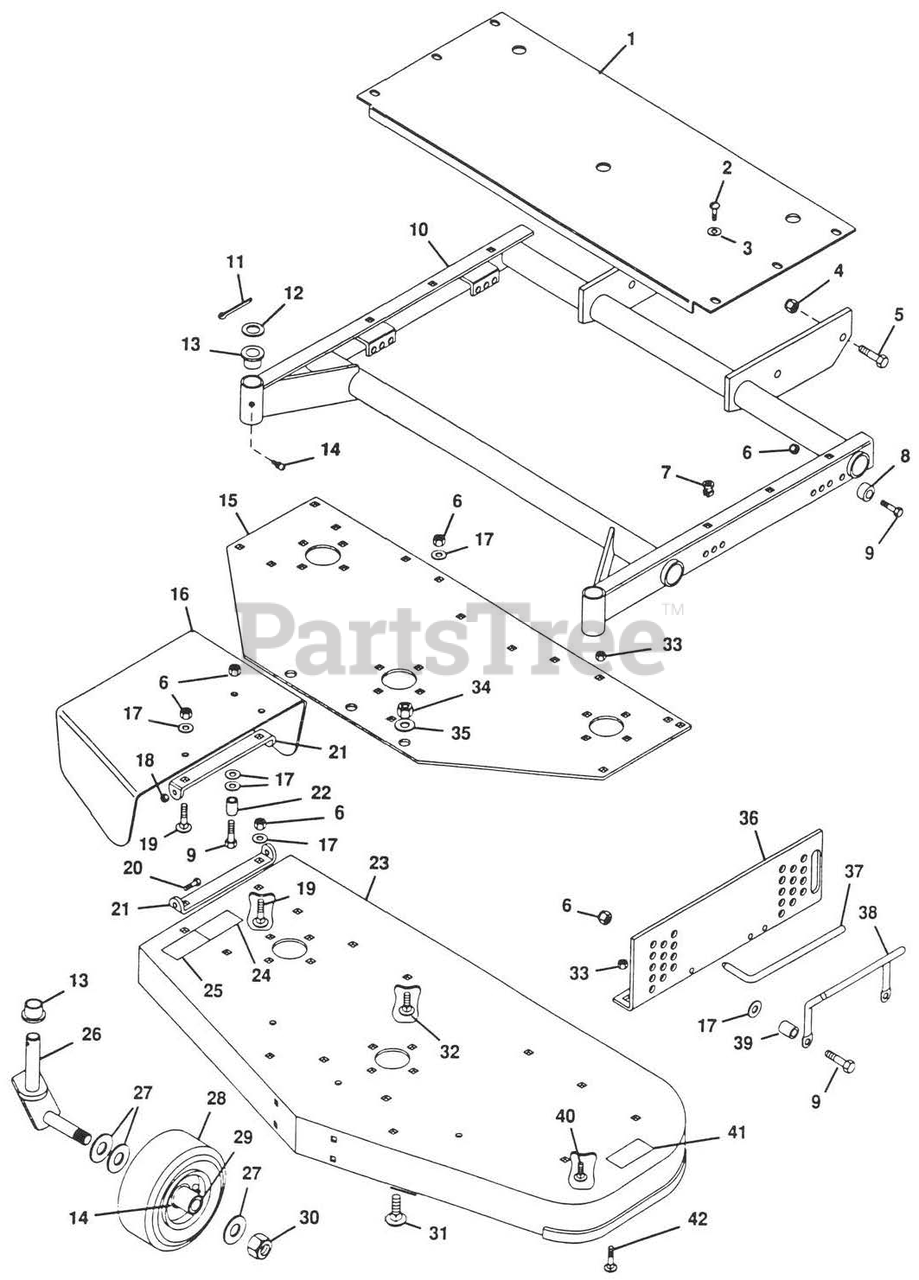

Mower Frame Parts Diagram

  • Title

1

Gravely 08808000

GUARD - 50" MOWER BELT
(Superseded to 08960400)

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 07405200

SCREW-TAPPING HEX SLOTTED HEAD
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06424900

WASHER-FLAT-STEEL .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06515800

NUT-LOCKING-NYLON .62-11 X 1.50
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 05939100

BOLT-HEX .62-11 X 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 06513500

NUT-LOCK .375-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 07538100

BROMMET-PLASTIC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 08814100

BRUSHING-STEEL .391 X .626 X .670

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 05915100

BOLT-HEX .38-16 X 1.50
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

10

Gravely 08839200

WELDMENT - MOWER FRAME - PRO-50

$131.99

$

Usually ships in 4-12 days

0

11

Gravely 06704900

FPIN-COTTER .187 X 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 05421600

WASHER - HARDENED
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05520100

BUSHING-FLANGE-NYLON 1.020 X 1.385 X .75 X 1.75

$11.99

$

In Stock, Qty 12

0

14

Gravely 07012600

FITTING - LUBE .25-28 X .256
(Superseded to 07001806)

$

$

Not available

15

Gravely 08850100

PLATE - SUPPORT
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

16

Gravely 08850600

SHIELD - SAFETY EXTERNAL 50" MOWER

$

$

Not available

17

Gravely 06404300

WASHER-FLAT-STEEL .406 X .812 X .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06506600

NUT-LOCKING-NYLON .250-20 GRADE 2
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 06201300

BOLT-ROUND HEAD SQUARE NECK .38-16 X 1.0
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05934900

BOLT-HEX .38-16 X 1.38

$

$

Not available

21

Gravely 08827600

BRACKET - CHUTE
(Superseded to 08827653)

$

$

Not available

22

Gravely 05525700

BUSHING-SLEEVE .407 X .625 X .750

$7.49

$

In Stock, only 1 left!

0

23

Gravely 08849100

WELDMENT - 50" MOWER FABRICATED

$

$

Not available

24

Gravely 03542400

DECAL - DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 03542300

G-DECAL-WARNING EYE

$

$

Not available

26

Gravely 01417900

WELDMENT-CASTOR-FORK
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

27

Gravely 06426000

WASHER-FLAT .812 X 1.496 X .134
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07130100

WHEEL-GAUGE

$108.99

$

In Stock, only 4 left!

0

29

Gravely 20637700

BEARING-GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

30

Gravely 06517700

NUT-LOCKING-NYLON .75-10 GRADE 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

31

Gravely 06218100

BOLT-ROUND HEAD SQUARE NECK .50-13 X 1.00
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

32

Gravely 06216700

BOLT-ROUND HEAD SQUARE NECK .38-16 X .75 GRADE 1
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

33

Gravely 06506200

NUT-LOCKING-NYLON W/INSERT .312-18 GRADE 2
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06512900

NUT-LOCKING-NYLON .50-13 GRADE 5
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

35

Gravely 06430200

WASHER-FLAT-STEEL .531 X 1.250 X .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 08836200

BRACKET - MOWER SIDE SUPPORT LEFT HAND

$124.99

$

Usually ships in 4-12 days

0

37

Gravely 08875900

PIN - MOWER LOCKING

$18.99

$

Usually ships in 4-12 days

0

38

Gravely 08878000

HANDLE

$59.99

$

In Stock, only 1 left!

0

39

Gravely 08553700

BUSHING

$5.99

$

In Stock, only 1 left!

0

40

Gravely 06216500

BOLT-ROUND HEAD SQUARE NECK .31-18 X .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 03542100

DECAL - DANGER FOOT

$

$

Not available

42

Gravely 06217200

BOLT-ROUND HEAD SQUARE CECK .31-18 X 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 05210700

DECAL - GRAVELY LOGO

Note: NOT SHOWN

$

$

Not available

44

Gravely 08424400

IPL KAWASAKI SPEC.

Note: NOT SHOWN

$

$

Not available

45

Gravely 07843600

DECAL - WIDTH OF CUT

Note: NOT SHOWN

$

$

Not available
