888004 - Gravely 36" Multi-Mode Deck for Pro-Walk Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

36" Multi-Mode Deck for Pro-Walk Mower

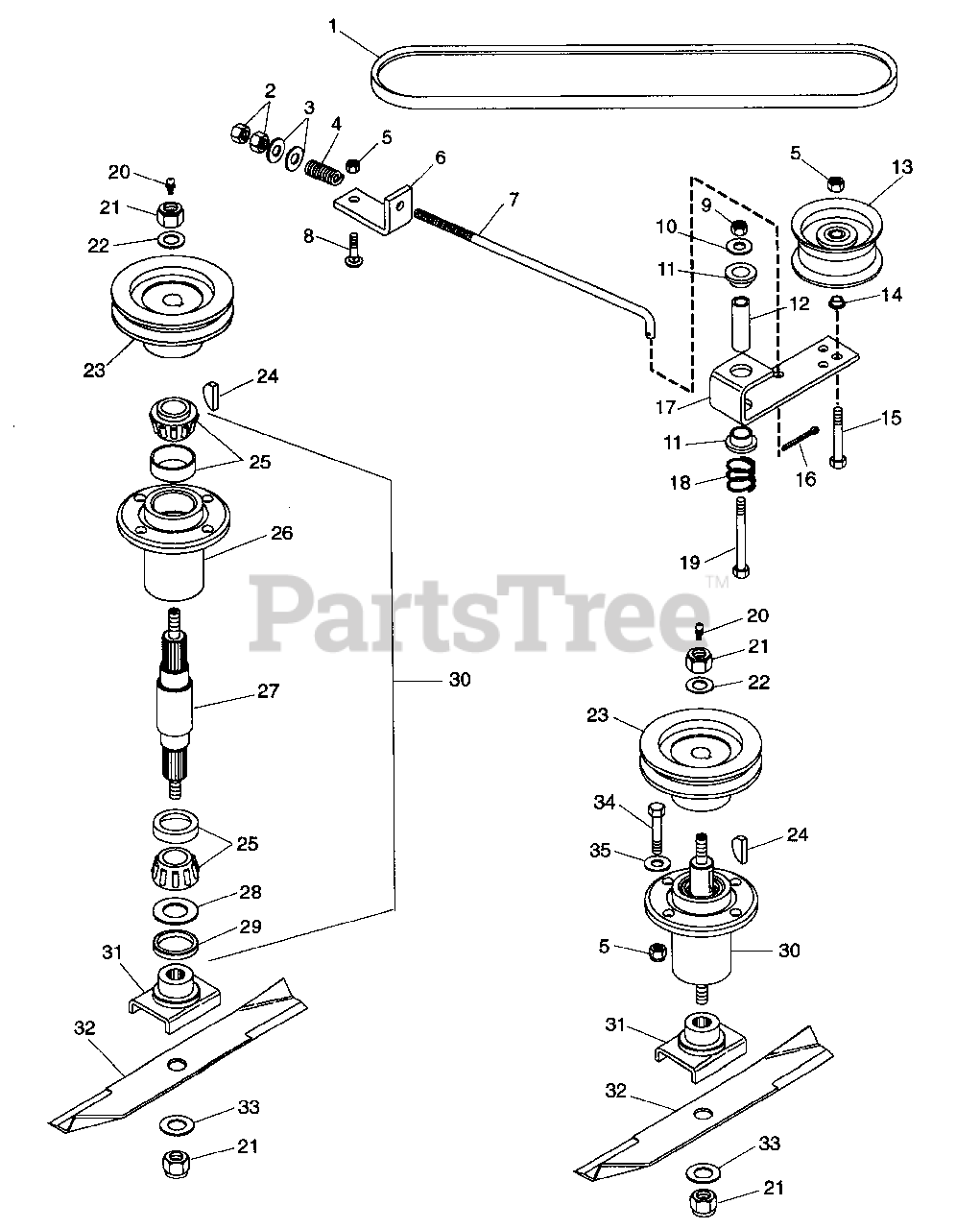

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 043894

V-Belt A-Rma 37.8 x 33/64
(Superseded to 07238200)

$63.99

$

In Stock, Qty 5

0

2

Gravely 120369

Nut-Hex .375-24 Zc
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011779

Sg-Comp .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 034287

Brkt, Belt Tensioner
(Superseded to 08802700)

$

$

Not available

7

Gravely 021112

Rod, Idler 40 In Mower
(Superseded to 03351200)

$

$

Not available

8

Gravely 120915

Blt-Rdhdsqnk .38-16 x 1.00

$

$

Not available

9

Gravely 414074

Nut-Lk .50-13 Hex Type N
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 415543

Wshr-Fl-Stl .188 x .438 x .049 N
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

11

Gravely 010174

Bshg-Flg .762 x 1.0 x .580 x 1.48 Ny
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 034119

Bush., S.560 x .750 x 2.44 St
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

13

Gravely 034286

Idler-Flat 4.00 x .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

14

Gravely 024815

Bshg-FIg .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

15

Gravely 180132

Blt-Hex .38-16 x 2.25 Gr 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 121222

Pin-Cotr .09 x .75 Pl
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

17

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

18

Gravely 020444

Sg-Comp .085 x 1.00 Wld 36
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

19

Gravely 180191

Blt-Hex .50-13 x 3.25 Pl Gr 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 411010

Ftg, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 418692

Nut-Lk-Nyl.625-11 Pl
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 033845

Wshr-Fl-Stl .687 x 1.312 x .135
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 034936

Sheave, Spindle
(Superseded to 08804400)

$387.99

$

Usually ships in 4-12 days

0

24

Gravely 124553

Kev, Wdrf.25 x 1 Hrd #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

25

Gravely 038199

Asm, Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

26

Gravely 021215

Hsg, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

27

Gravely 034603

Shft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

28

Gravely 020743

Wsh-Fl-Stl .97 x 1.865 x.03
(Superseded to 06426900)

$5.99

$

In Stock, Qty 9

0

29

Gravely 021211

Sl, Steel
(Superseded to 08722600)

$15.99

$

Usually ships in 4-12 days

0

30

Gravely 034605

Asm, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

31

Gravely 023026

Wldmt, Blade Crdl
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

32

Gravely 042124

Bld, 36" Mower
(Superseded to 08816600)

Note: (Used Only On Model(s): 888004).

$20.99

$

In Stock, only 2 left!

0

32

Gravely 088826

Blade, Sand, 36" Rotary 2 Spndl
(Superseded to 08882600)

Note: (Used Only On Model(s): 888302).

$25.99

$

Usually ships in 4-12 days

0

33

Gravely 131016

Wshr-Fl-Stl .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 180124

Blt-Hex .38-16 x 1.25 Pl Gr 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 120388

Wshr-Fl-Stl .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
