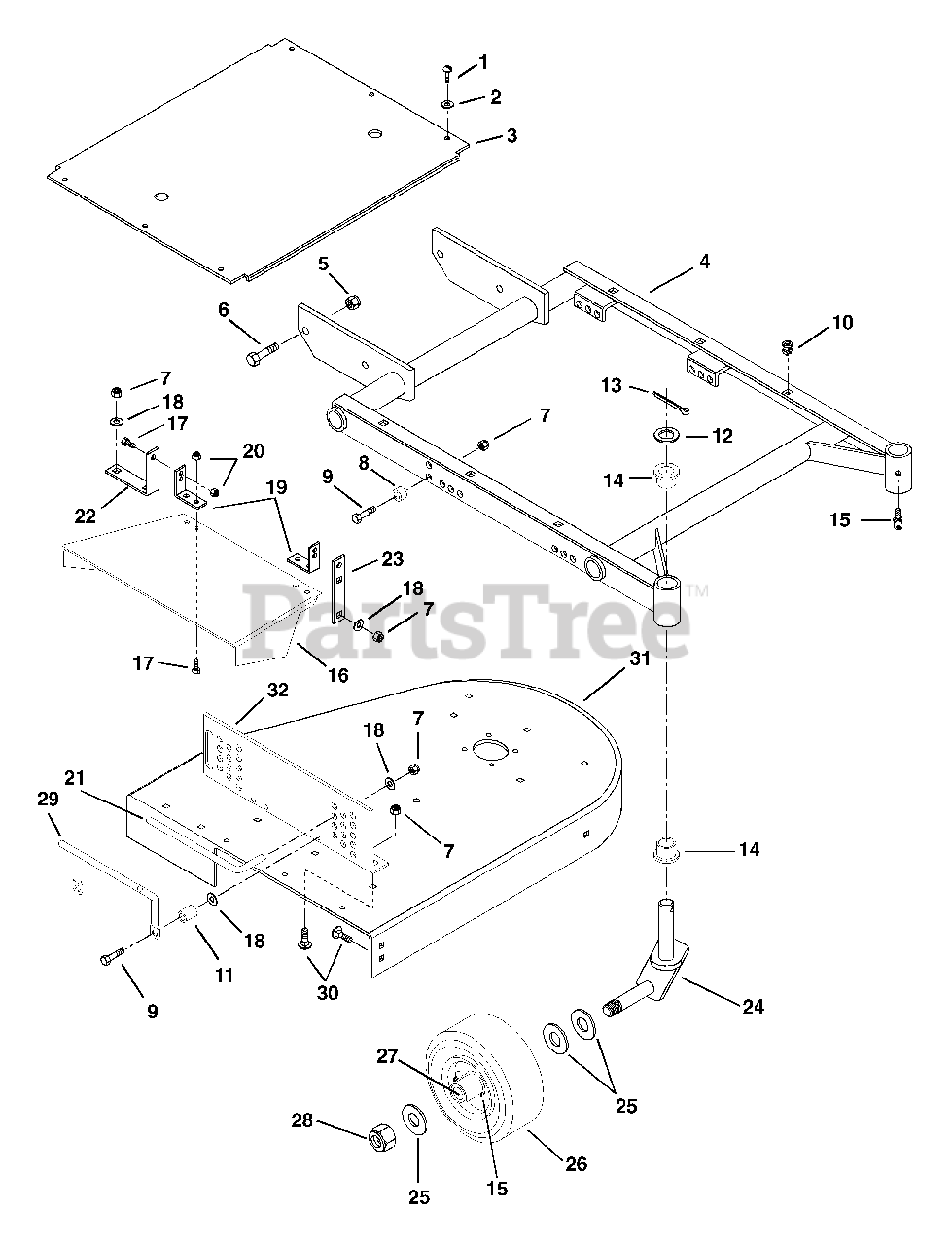

888003 - Gravely 36" Deck for Pro-Walk Mower (SN: 010000 & Above) Mower Frame Parts Diagram

36" Deck for Pro-Walk Mower

Mower Frame Parts Diagram

  • Title

1

Gravely 045207

Screw-Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 047172

Cover, Silkscreen
(Superseded to 08829200)

$

$

Not available

4

Gravely 051586

Weldment, Mower Frame
(Superseded to 08845600)

$

$

Not available

5

Gravely 418692

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 271547

Bolt-Hex .62-11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

7

Gravely 039787

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535400)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

10

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 043972

Bushing
(Superseded to 20792500)

$

$

Not available

12

Gravely 019340

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

13

Gravely 103409

Pin-Cotter .188 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

14

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

15

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

16

Gravely 04908400

Chute, Discharge
(Superseded to 04908453)

$77.99

$

Usually ships in 4-12 days

0

17

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 038951

Bracket
(Superseded to 08809800)

$

$

Not available

20

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

22

Gravely 047163

Bracket
(Superseded to 08829100)

$

$

Not available

23

Gravely 038949

Bracket
(Superseded to 08809600)

$22.99

$

In Stock, only 1 left!

0

24

Gravely 044680

Weldment, Castor Fork
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

25

Gravely 131017

Washer-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 045205

Wheel 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

27

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

28

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

29

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

30

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

31

Gravely 047135

Weldment, 36" Deck
(Superseded to 08828500)

$

$

Not available

32

Gravely 049343

Bracket, Mower Side Support Left Hand
(Superseded to 08836200)

$124.99

$

Usually ships in 4-12 days

0

32

Gravely 049342

Bracket, Mower Side Support Right Hand
(Superseded to 08836100)

$122.99

$

Usually ships in 4-12 days

0
