888003 - Gravely 36" Deck for Pro-Walk Mower (SN: 010000 & Above) Mower Drive Parts Diagram

36" Deck for Pro-Walk Mower

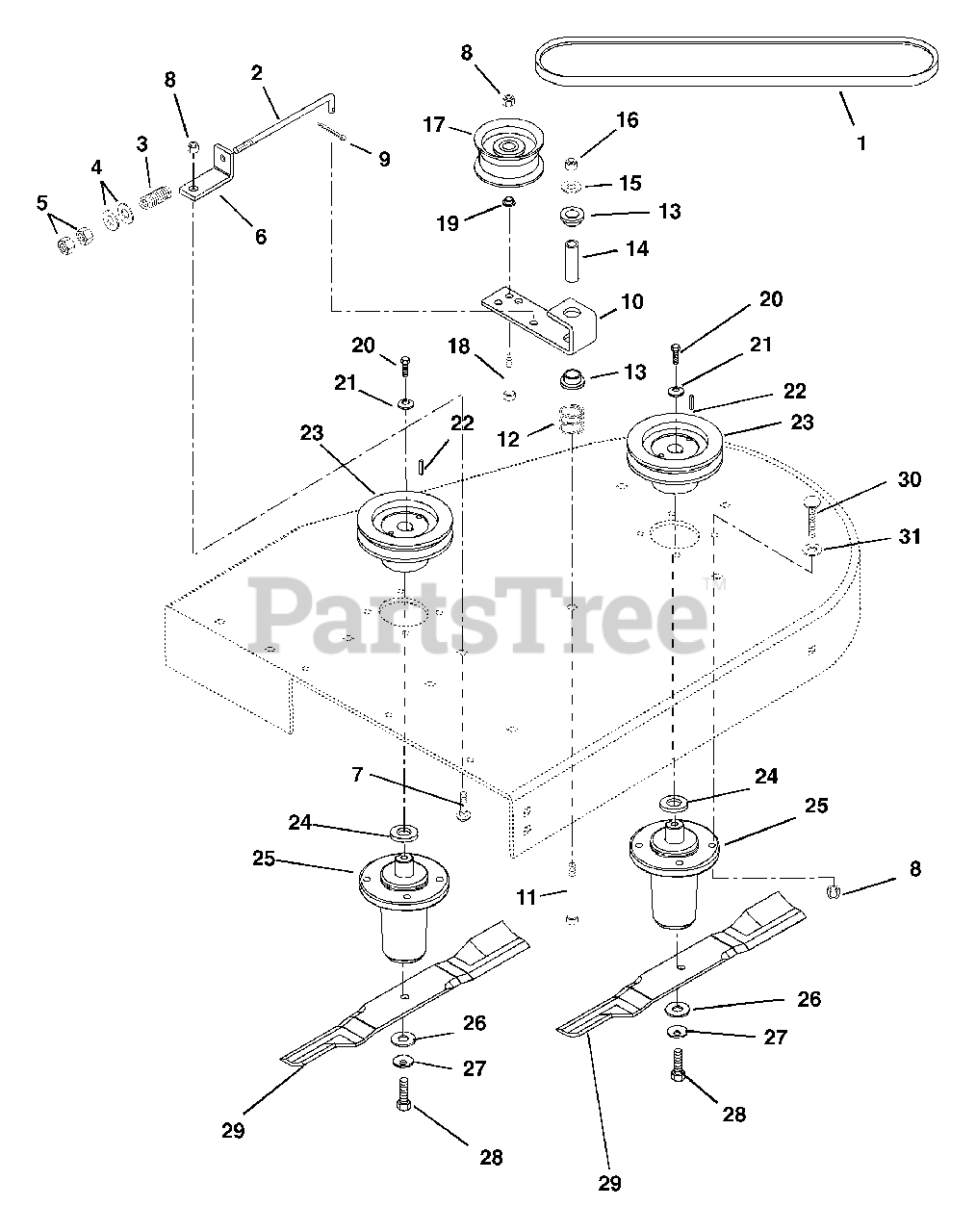

Mower Drive Parts Diagram

  • Title

1

Gravely 07227700

V-Belt, Wrapped, Pro 150/50"
(Superseded to 07238200)

$63.99

$

In Stock, Qty 5

0

1

Gravely 07231900

V-Belt Pro 250 36" Mower

$47.99

$

Usually ships in 4-12 days

0

2

Gravely 046264

Rod, Idler 72" Mower
(Superseded to 08656800)

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

4

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 034287

Bracket, Belt Tensioner
(Superseded to 08802700)

$

$

Not available

7

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

8

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

10

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

11

Gravely 180191

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

13

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 034119

Bushing, Steel .560 x .750 x 2.44
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

15

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

16

Gravely 414074

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 034286

Idler-Flat 4-6.87 x .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

18

Gravely 180132

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

20

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 00597000

Washer, Cupped, Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06602200

Key-Square .25 x 1.00 x .25 SAE 860 or SAE 1035

$3.99

$

In Stock, only 2 left!

0

23

Gravely 04904300

Weldment, Pulley-V 4.75 x 1.004 with Key

$

$

Not available

24

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 4 left!

0

25

Gravely 58803600

Spindle, Maintenance Free Assembly

$262.99

$

In Stock, only 1 left!

0

26

Gravely 06435200

Washer, Flat .64 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 06445700

Washer, Bellville .63 x 1.63 x .14

$4.99

$

In Stock, only 3 left!

0

28

Gravely 07053400

Bolt, Blade

$46.99

$

In Stock, Qty 7

0

29

Gravely 08899400

Blade, Mower-Tungsten Carbide
(Superseded to 08816600)

$20.99

$

In Stock, only 2 left!

0

30

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 120384

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0
