888003 - Gravely 36" Deck for Pro-Walk Mower (SN: 000422 - 009999) MOWER FRAME Parts Diagram

36" Deck for Pro-Walk Mower

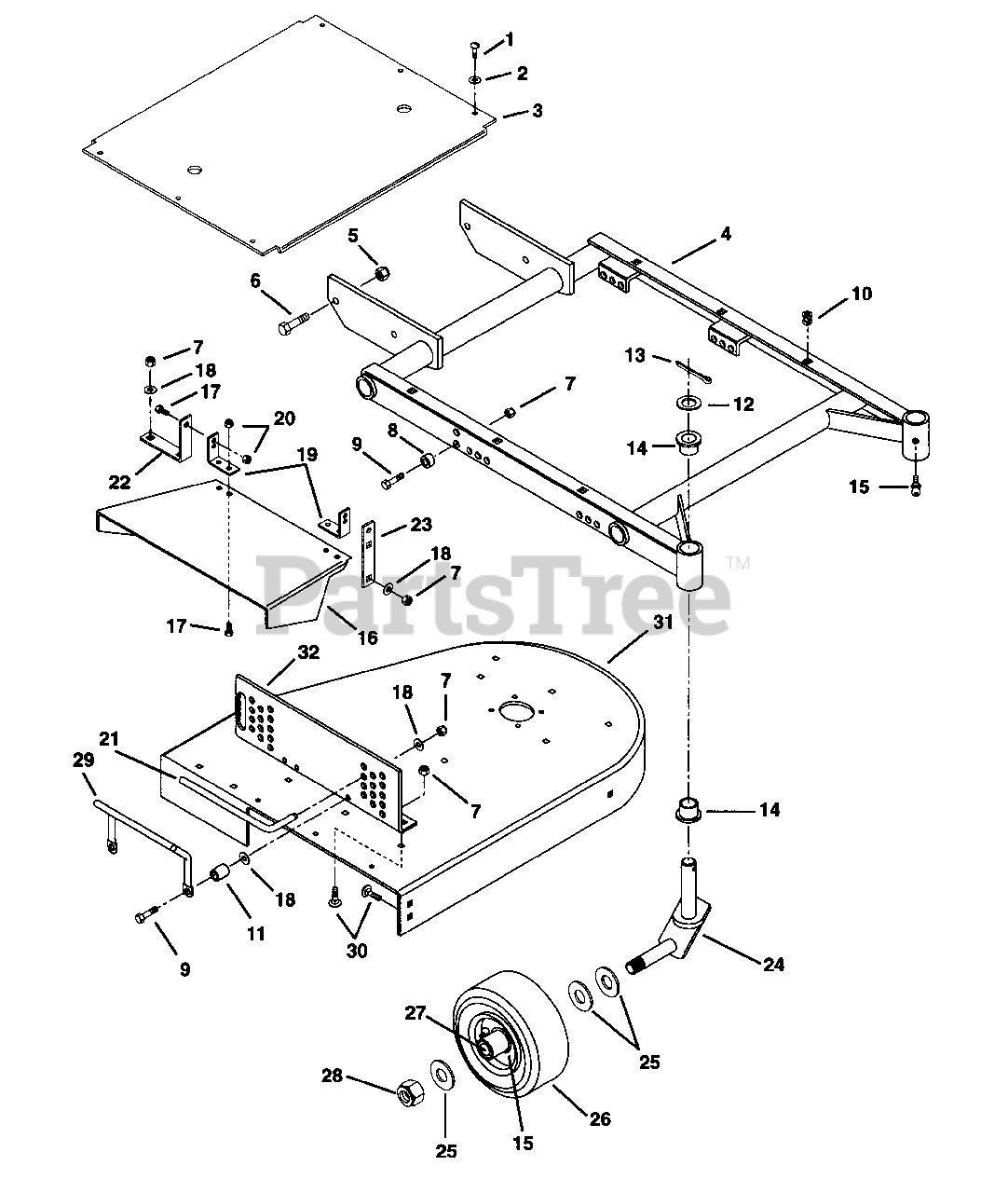

MOWER FRAME Parts Diagram

  • Title

1

Gravely 07405200

Screw-Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06424900

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 08829300

Cover, Silkscreen
(Superseded to 08829200)

$

$

Not available

4

Gravely 08845600

Weldment, Mower Frame

$

$

Not available

5

Gravely 06515800

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05939100

Bolt-Hex .62-11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

7

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 08814100

Bushing .391 x .626 x .670

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 05915100

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

10

Gravely 07538100

Grommet, Plastic

$1.49

$

In Stock, Qty 20+

0

11

Gravely 08553700

Bushing

$5.99

$

In Stock, only 1 left!

0

12

Gravely 05421600

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 06704900

Pin-Cotter .188 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

14

Gravely 05520100

Bushing-Flange 1.020 x 1.385 x .75 x 1.75

$11.99

$

In Stock, Qty 12

0

15

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

16

Gravely 08809900

Chute, Discharge
(Superseded to 04908453)

$77.99

$

Usually ships in 4-12 days

0

17

Gravely 05913500

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 08809800

Bracket

$

$

Not available

20

Gravely 06506200

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08875900

Pin, Mower Locking

$18.99

$

Usually ships in 4-12 days

0

22

Gravely 08829100

Bracket

$

$

Not available

23

Gravely 08809600

Bracket

$22.99

$

In Stock, only 1 left!

0

24

Gravely 01417900

Weldment, Castor Fork
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

25

Gravely 06426000

Washer-Flat .812 x 1.469 x .134
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07130100

Wheel 9 x 3.50

$108.99

$

In Stock, only 4 left!

0

27

Gravely 20637700

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

28

Gravely 06517700

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

29

Gravely 08878000

Handle

$59.99

$

In Stock, only 1 left!

0

30

Gravely 06201300

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 08828500

Weldment, 36" Deck

$

$

Not available

32

Gravely 08836200

Bracket, Mower Side Support Left Hand

$124.99

$

Usually ships in 4-12 days

0

Gravely 08836100

Bracket, Mower Side Support Right Hand

$122.99

$

Usually ships in 4-12 days

0

33

UNKNOWN

UNKNOWN

$

$

Not available

34

UNKNOWN

UNKNOWN

$

$

Not available

35

UNKNOWN

UNKNOWN

$

$

Not available

36

UNKNOWN

UNKNOWN

$

$

Not available
