888003 - Gravely 36" Deck for Pro-Walk Mower (SN: 000422 - 009999) MOWER DRIVE Parts Diagram

36" Deck for Pro-Walk Mower

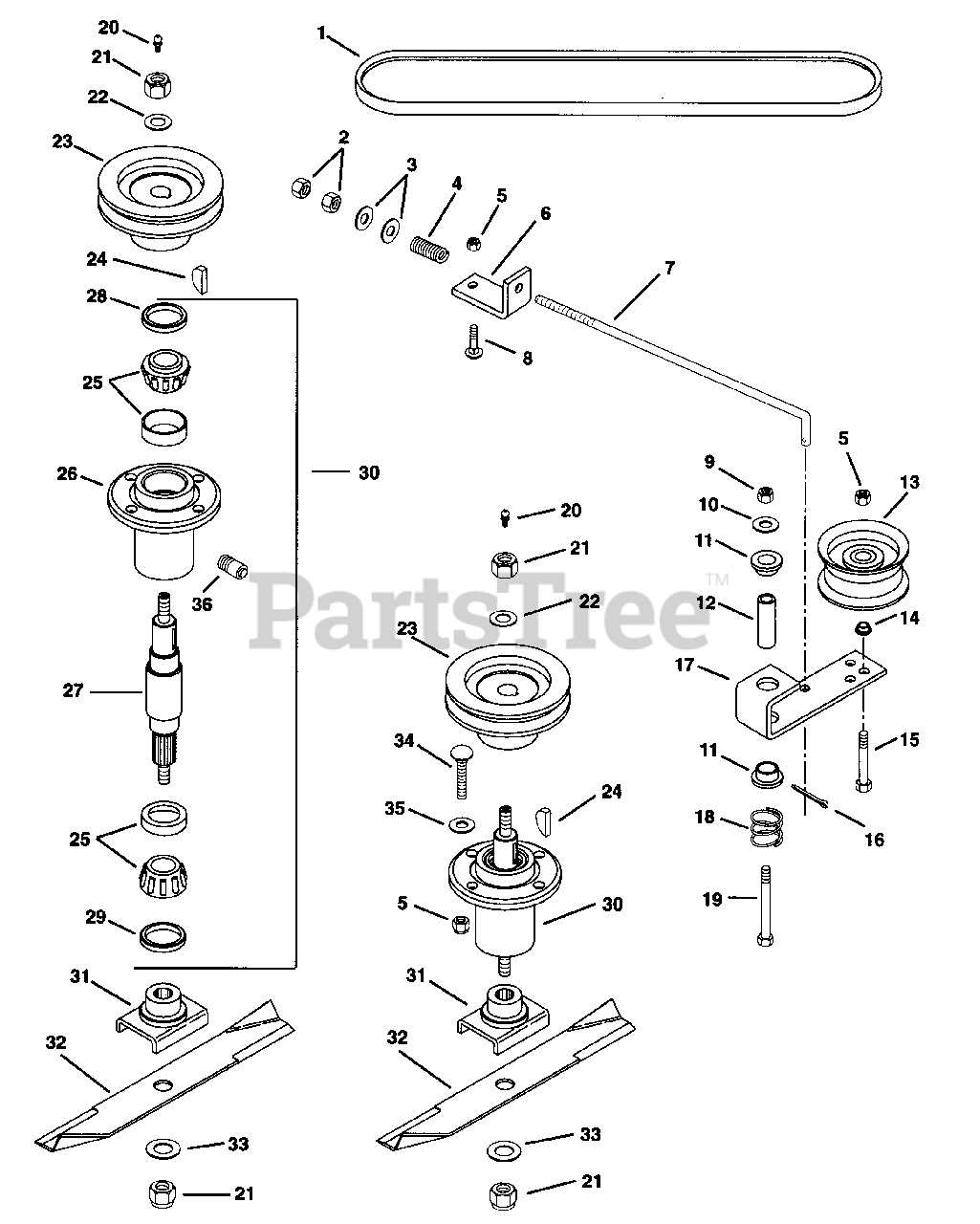

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07221500

V-Belt 4L-Section
(Superseded to 07238200)

$63.99

$

In Stock, Qty 5

0

2

Gravely 06522900

Nut-Hex .375-24 Grade 2
(Superseded to 06500940)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08327000

Spring-Compression .125 x .78 x 1.00

$15.99

$

In Stock, only 2 left!

0

5

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 08802700

Bracket, Belt Tensioner

$

$

Not available

7

Gravely 08656800

Rod, Idler 72" Mower

$64.99

$

Usually ships in 4-12 days

0

8

Gravely 06201300

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06525800

Nut-Locking .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 06430200

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05518400

Bushing-Flange .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

12

Gravely 08820500

Bushing, Steel .560 x .750 x 2.44

$17.99

$

In Stock, only 1 left!

0

13

Gravely 07317700

Idler-Flat 4-6.87 x .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

14

Gravely 05515800

Bushing-Flange .406 x .88 x .270 x .140

$9.49

$

In Stock, only 4 left!

0

15

Gravely 05924300

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06700100

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

17

Gravely 08905900

Arm, Idler Pivot

$82.99

$

Usually ships in 4-12 days

0

18

Gravely 08329100

Spring-Compression .085 x .80 x 1.00

$13.99

$

In Stock, only 1 left!

0

19

Gravely 05924200

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07012500

Fitting-Lube 1/8

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06515800

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06427400

Washer-Flat-Steel .687 x 1.312 x .150

$2.49

$

In Stock, only 2 left!

0

23

Gravely 08895000

Sheave
(Superseded to 08895500)

$

$

Not available

24

Gravely 06608900

Key-Woodruff .25 x 1

$3.99

$

In Stock, Qty 18

0

25

Gravely 21245800

Assembly, Bearing Cup & Cone
(Superseded to 00145555)

$25.99

$

In Stock, Qty 20+

0

26

Gravely 08894500

Bearing Housing

$

$

Not available

27

Gravely 08910600

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

28

Gravely 05611400

Seal 1.987 x 1.500 x .313

$15.99

$

In Stock, only 1 left!

0

29

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, only 2 left!

0

30

Gravely 58801700

Service Kit Spindle Assembly
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

31

Gravely 08798300

Weldment, Blade Cradle

$155.99

$

Usually ships in 4-12 days

0

32

Gravely 08816600

Blade, 36" Mower

$20.99

$

In Stock, only 2 left!

0

33

Gravely 06400400

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 05913300

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06428900

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

36

Gravely 08896800

Relief Fitting

$13.99

$

Usually ships in 4-12 days

0
