887023 - Gravely Grass Bagger Blower for 4-Wheel Tractor (SN: 000101 & Above) VAC-TRACTOR Parts Diagram

Grass Bagger Blower for 4-Wheel Tractor

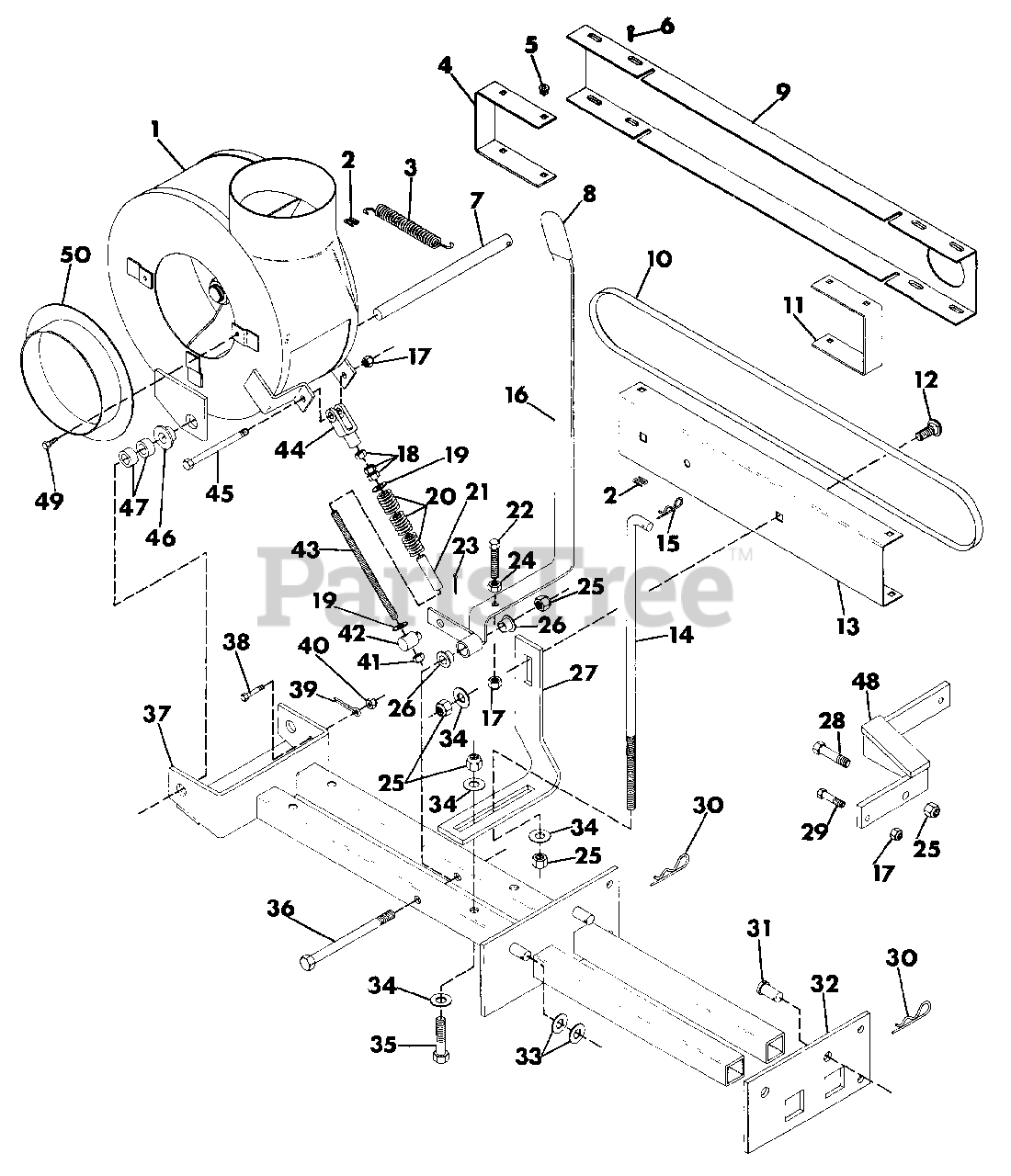

VAC-TRACTOR Parts Diagram

  • Title
1

Gravely 036984

BLOWER
(Superseded to 20635000)

$

$

Not available

2

Gravely 011329

CLIP, SPRING
(Superseded to 08657900)

$

$

Not available

3

Gravely 011263

SPRING, EXT 5.5X.5X20 RATE
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 036964

GUIDE, RIGHT HAND
(Superseded to 20634200)

$

$

Not available

5

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 160515

SCREW, MACHINE 1/4-20X.5
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 036957

ROD, BLOWER PIVOT
(Superseded to 20633900)

$

$

Not available

8

Gravely 036994

GRIP, HANDLE
(Superseded to 20635300)

$

$

Not available

9

Gravely 036973

COVER, BELT
(Superseded to 20634700)

$

$

Not available

10

Gravely 036987

BELT
(Superseded to 20635100)

$

$

Not available

11

Gravely 036967

GUIDE, LEFT HAND
(Superseded to 20634300)

$

$

Not available

12

Gravely 126485

BOLT, CARRIAGE 1/2-13X1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 036977

CHANNEL, GUARD
(Superseded to 20634800)

$

$

Not available

14

Gravely 038294

ROD
(Superseded to 20647000)

$

$

Not available

15

Gravely 011860

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 036972

WELDMENT, HANDLE
(Superseded to 20634600)

$

$

Not available

17

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 011779

SPRING, COMP. 1X.78X388 LB/IN
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

21

Gravely 021381

SLEEVE, SPRING

$

$

Not available

22

Gravely 036993

BOLT, 3/8-16X2 ALL THREAD

$

$

Not available

23

Gravely 137185

PIN, COTTER 1/8X1
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

24

Gravely 124829

NUT, JAM 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

26

Gravely 036960

BUSHING
(Superseded to 20634000)

$

$

Not available

27

Gravely 036974

BRACKET
(Superseded to 21243400)

$

$

Not available

28

Gravely 180181

BOLT, HEX 1/2-13X2
(Superseded to 05901929)

$

$

Not available

29

Gravely 180126

BOLT, HEX 3/8-16X1.5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

30

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

31

Gravely 020499

PIN, CLEVIS 5/8X1.125
(Superseded to 06809500)

$

$

Not available

32

Gravely 036989

PLATE
(Superseded to 21243500)

$

$

Not available

33

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 037842

WASHER, FLAT 1.38X.56
(Superseded to 06427800)

$

$

Not available

35

Gravely 180188

BOLT, HEX 1/2-13X2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

36

Gravely 445608

BOLT, HEX 1/2-13X5.5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

37

Gravely 036978

WELDMENT, BLOWER FRAME
(Superseded to 20673800)

$

$

Not available

38

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 103422

PIN, COTTER .25X2
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

41

Gravely 192481

NUT, LOCK 3/8-24
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

42

Gravely 036951

TRUNNION
(Superseded to 20633700)

$

$

Not available

43

Gravely 036969

ROD, ACTUATOR
(Superseded to 20634500)

$

$

Not available

44

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

45

Gravely 189295

BOLT, HEX 3/8-16X4.5
(Superseded to 05970400)

$4.99

$

In Stock, only 2 left!

0

46

Gravely 010174

BUSHING, NYLON .76X1X.6 FLG.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

47

Gravely 018485

SPACER .760X1X.540
(Superseded to 08823300)

$

$

Not available

48

Gravely 038318

WELDMENT, SUPPORT
(Superseded to 08750900)

$

$

Not available

49

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 038585

ADAPTOR, HOSE
(Superseded to 03053700)

$

$

Not available

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 036995

DECAL, PTO
(Superseded to 05209700)

$

$

Not available
