887004 - Gravely 60" Deck for 4-Wheel Tractor (SN: 000101 & Above) GAUGE WHEELS, ROLLERS AND HEIGHT ADJUSTMENT Parts Diagram

60" Deck for 4-Wheel Tractor

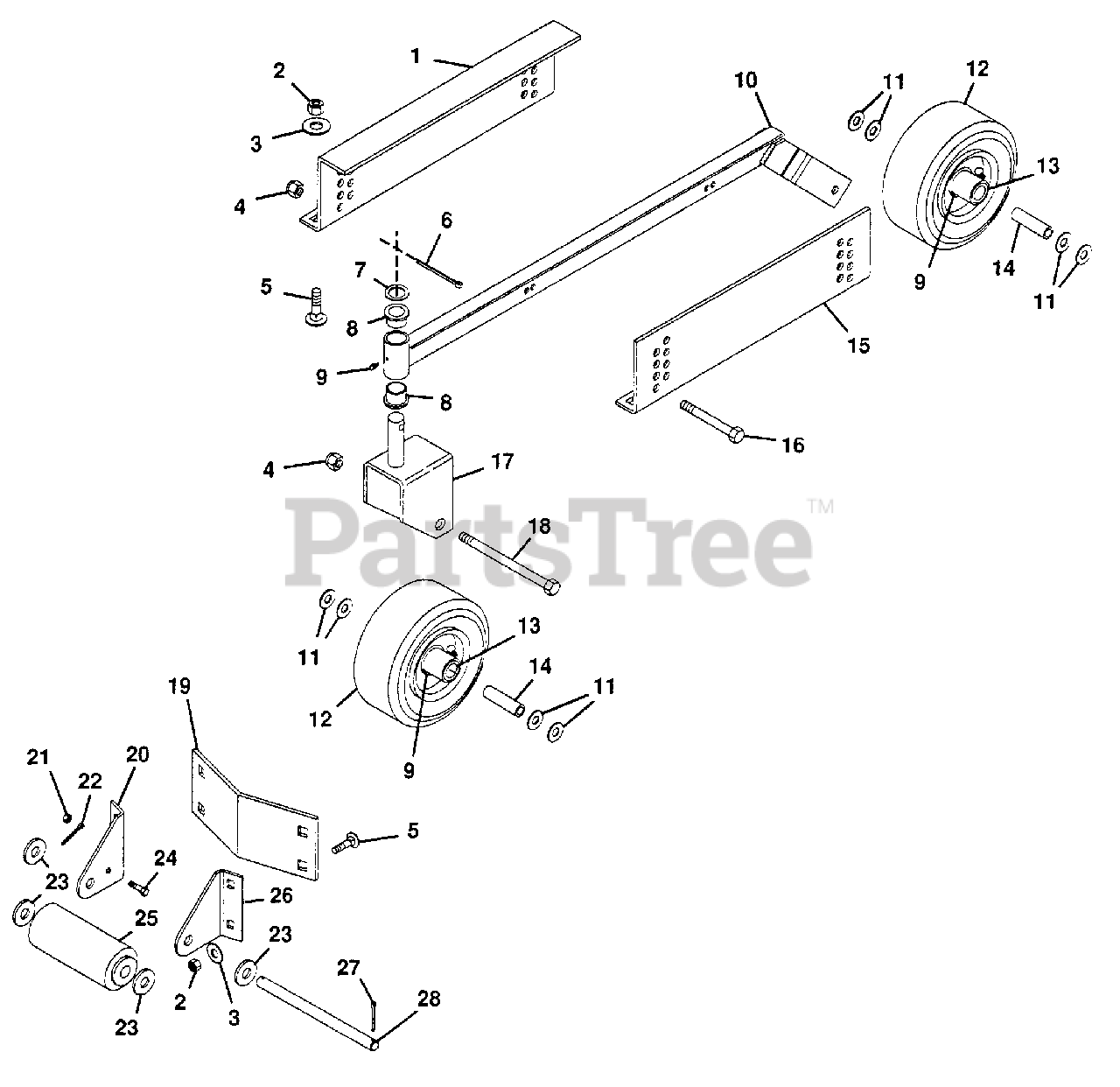

GAUGE WHEELS, ROLLERS AND HEIGHT ADJUSTMENT Parts Diagram

  • Title

1

Gravely 049996

Hanger, Inner
(Superseded to 08783400)

$

$

Not available

2

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

6

Gravely 137253

Pin, Cotter .187x1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

8

Gravely 018355

Bush., Flg. 1.03x1.75x.75 Ny.
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

9

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

10

Gravely 050006

Weldment, Caster Support
(Superseded to 08789000)

$45.99

$

Usually ships in 4-12 days

0

11

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

12

Gravely 045205

Wheel, Gauge
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

13

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

14

Gravely 011950

Bush., St. .506x.748x3.34 Stl.
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 049997

Hanger, Outer
(Superseded to 08783500)

$

$

Not available

16

Gravely 180192

Bolt, Hex 1/2-13x3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

17

Gravely 045523

Weldment, Caster Fork
(Superseded to 08969153)

$

$

Not available

18

Gravely 445608

Bolt, Hex 1/2-13x5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 047006

Plate, Deck Reinforcement
(Superseded to 08980100)

$

$

Not available

20

Gravely 044902

Bracket, Roller(R.H.)
(Superseded to 08958100)

Note: (R.H.)

$

$

Not available

21

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 103422

Pin, Cotter .250x2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 031390

Roller, Gauge
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

26

Gravely 044903

Bracket, Roller(L.H.)
(Superseded to 08958200)

Note: (L.H.)

$45.99

$

Usually ships in 4-12 days

0

27

Gravely 179128

Pin, Cotter .25x1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

28

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available
