887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 010000 & Above) Wheels, Rollers And Height Adjustment Parts Diagram

60" Deck for Center Mount 4-Wheel Tractor

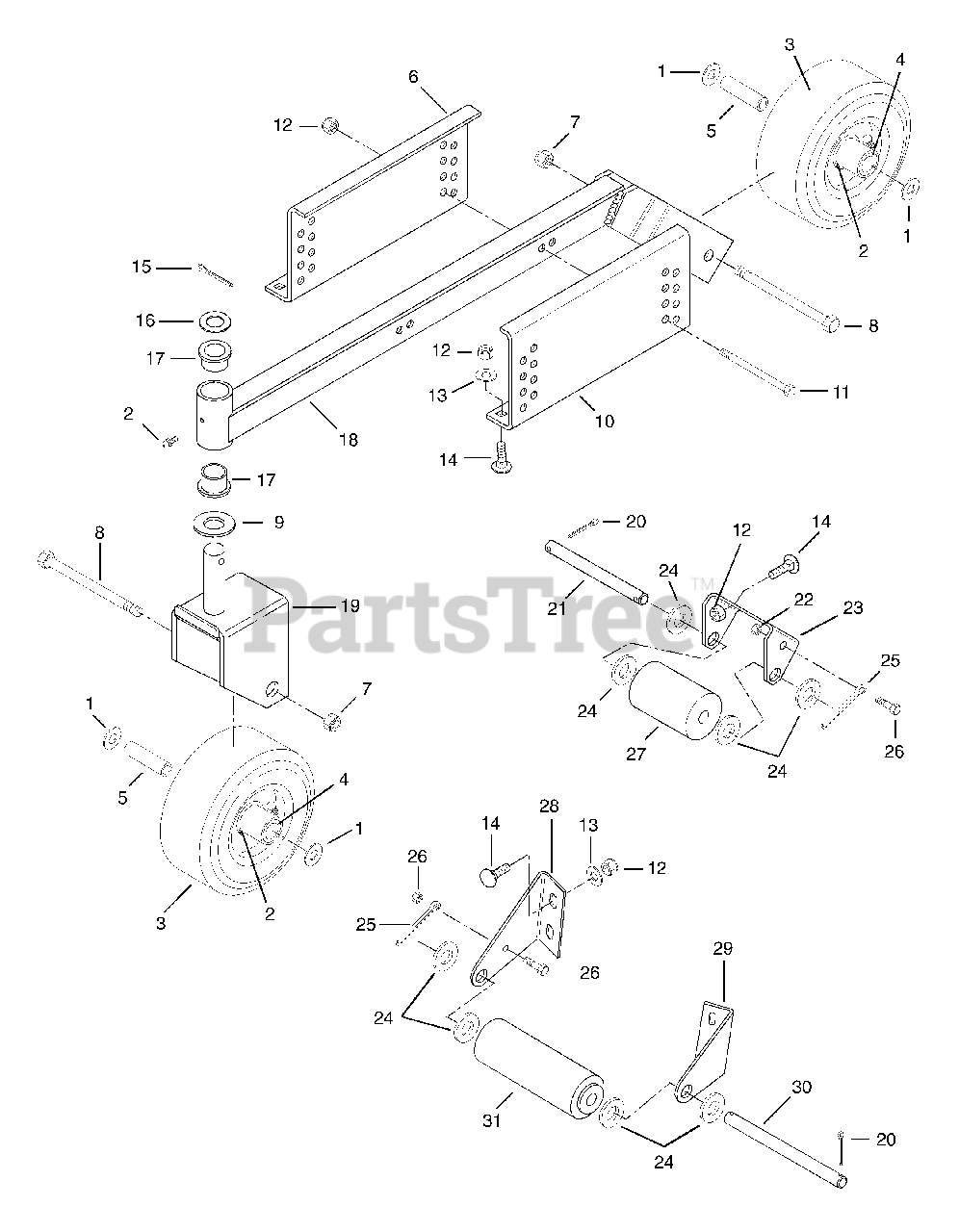

Wheels, Rollers And Height Adjustment Parts Diagram

  • Title

1

Gravely 415543

Washer - Flat - Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

2

Gravely 411027

Fitting - Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

3

Gravely 045205

Wheel 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

4

Gravely 036778

Bearing-Ball .752 x 1.50 x .50
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

5

Gravely 011950

Spacer .532 x .748 x 3.34
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

6

Gravely 051869

Hanger-Left Hand
(Superseded to 08792000)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 433163

Bolt-Hex .50-13 x 5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

10

Gravely 052035

Hanger-Right Hand
(Superseded to 08791900)

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 180134

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

15

Gravely 137253

Pin-Cotter .188 x 1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .030

$4.99

$

In Stock, only 3 left!

0

17

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

18

Gravely 051867

Weldment-Caster Wheel Support
(Superseded to 08791800)

$79.99

$

Usually ships in 4-12 days

0

19

Gravely 09066400

Weldment-Caster Fork

$193.99

$

In Stock, only 1 left!

0

20

Gravely 179128

Pin-Cotter .25 x 1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

21

Gravely 045211

Rod
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

22

Gravely 120375

Nut-Hex .250-20 Grade 2
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

23

Gravely 045210

Bracket-Roller
(Superseded to 08966853)

$

$

Not available

24

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 103422

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 015351

Roller-Gage
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 045567

Bracket-Roller Right Hand
(Superseded to 08970000)

$34.99

$

Usually ships in 4-12 days

0

29

Gravely 045568

Bracket-Roller Left Hand
(Superseded to 08970153)

$51.99

$

Usually ships in 4-12 days

0

30

Gravely 024795

Shaft-Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

31

Gravely 031390

Roller-Gage
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0
