887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 010000 & Above) Mower Spindles Parts Diagram

60" Deck for Center Mount 4-Wheel Tractor

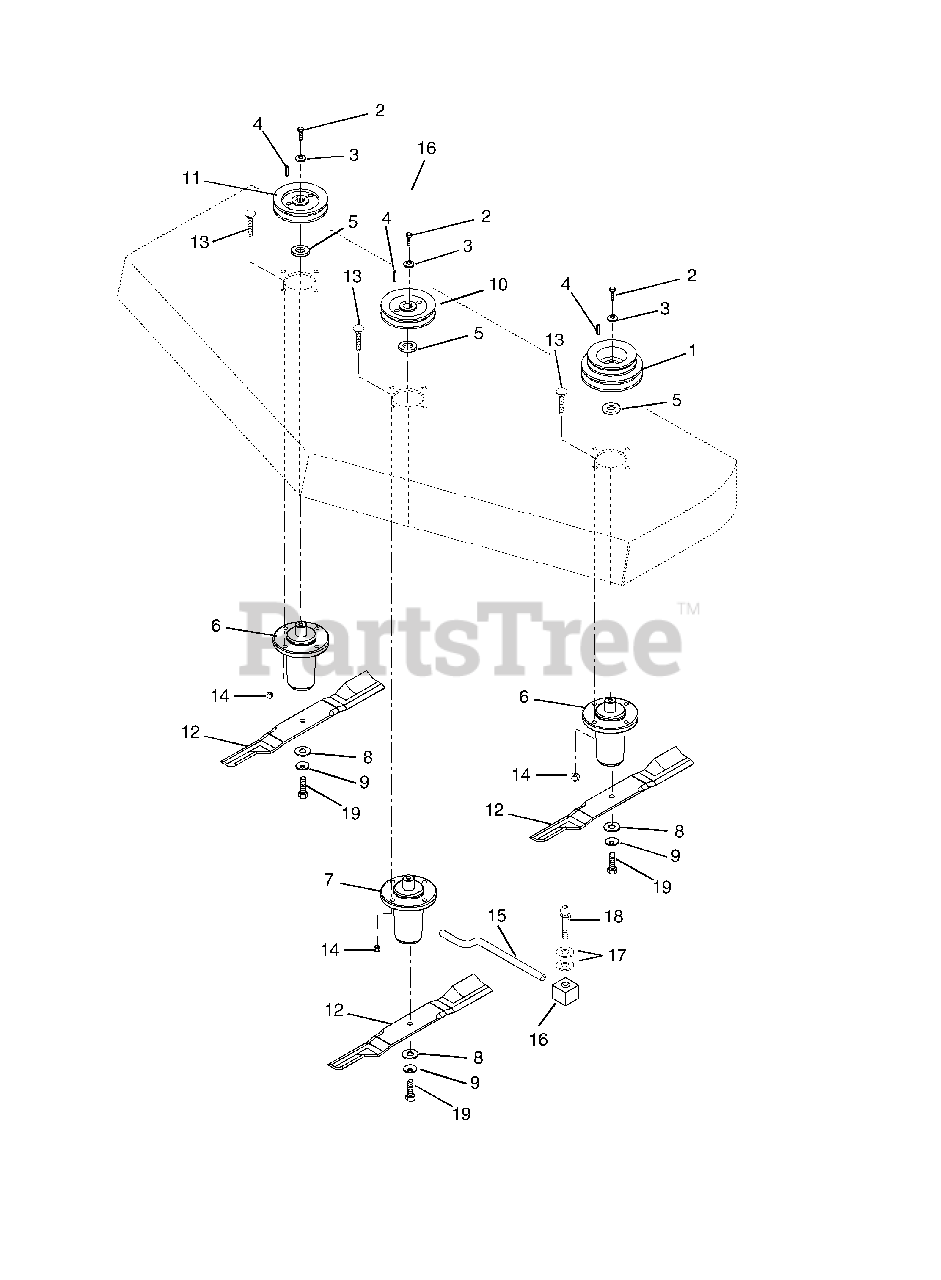

Mower Spindles Parts Diagram

  • Title

1

Gravely 04907700

Pulley,Double V 4.50,6.00 x 1.004

$270.99

$

Usually ships in 4-12 days

0

2

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8 with Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 00597000

Washer, Cupped, Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06602200

Key-Square .25X1.00 x .25 SAE 860 or SAE 1035

$3.99

$

In Stock, only 2 left!

0

5

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 4 left!

0

6

Gravely 58803600

Maintenance Free Spindle Assembly

$262.99

$

In Stock, only 1 left!

0

7

Gravely 58803700

Maintenance Free Spindle Assembly

$355.99

$

Usually ships in 4-12 days

0

8

Gravely 06435200

Washer,Flat .64 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

10

Gravely 04907600

Weldment, Spindle Sheave

$83.99

$

In Stock, only 1 left!

0

11

Gravely 04904600

Weldment, Pulley-V 5.50 x 1.004 with Key

$

$

Not available

12

Gravely 08899000

Mower Blade Tungsten Carbide
(Superseded to 08904600)

$

$

Not available

13

Gravely 06224200

Bolt-Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 08799000

Grease Tube

$

$

Not available

16

Gravely 08799100

Grease Fitting

$29.99

$

Usually ships in 4-12 days

0

17

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07025400

Fitting-Lube .12 x 65 x 1.18

$

$

Not available

19

Gravely 07053400

Bolt, Blade

$46.99

$

In Stock, Qty 7

0
