887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 010000 & Above) Gearbox And Idlers Parts Diagram

60" Deck for Center Mount 4-Wheel Tractor

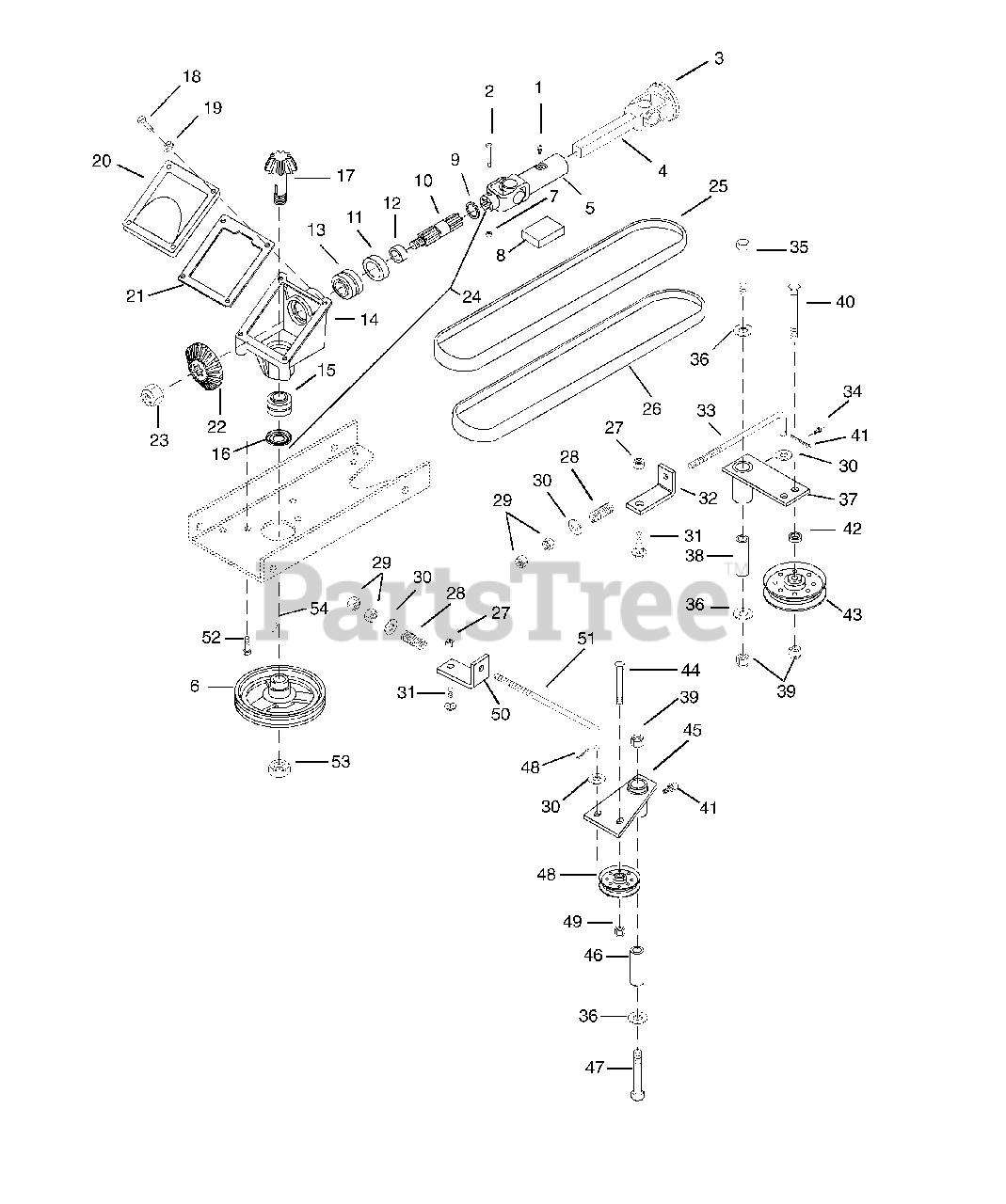

Gearbox And Idlers Parts Diagram

  • Title

1

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

2

Gravely 180046

Bolt-Hex .25-20 x 2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 045954

Q.D. Yoke
(Superseded to 20823200)

$258.99

$

Usually ships in 4-12 days

0

4

Gravely 031389

Shaft-Prop Square Bar
(Superseded to 08729300)

$

$

Not available

5

Gravely 08729200

Joint-U Female End
(Superseded to 08700200)

$

$

Not available

6

Gravely 031382

Pulley-Gearbox
(Superseded to 08729100)

$

$

Not available

7

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 031828

Kit-Repair U-Joint
(Superseded to 08729700)

$86.99

$

Usually ships in 4-12 days

0

9

Gravely 014642

Ring-Retaining 1.106 x .95
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 031412

Shaft
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

11

Gravely 014646

Seal 1.250 x 1.983 x .250
(Superseded to 05613700)

$14.99

$

In Stock, only 1 left!

0

12

Gravely 014641

Bushing Flange 1.00 x 1.25 x 1.25
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

13

Gravely 014640

Bearing-Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

14

Gravely 014636

Casting-Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

15

Gravely 014644

Bearing-Assembly .75 x 1.781 x 1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

16

Gravely 014645

Seal 1.250 x 1.691 x .310
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

17

Gravely 08790400

Shaft-Pinion Gear

$

$

Not available

18

Gravely 180016

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 120380

Washer-Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 010982

Cover-Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

21

Gravely 011231

Gasket-Gear Housing
(Superseded to 08570100)

$5.99

$

In Stock, only 1 left!

0

22

Gravely 08790300

Gear-Bevel

$240.99

$

Usually ships in 4-12 days

0

23

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

24

Gravely 031410

Assembly-Drive 50" Mower
(Superseded to 08570300)

Note: (Includes Items 9 - 23)

$1066.99

$

Usually ships in 4-12 days

0

25

Gravely 031369

V-Belt A-Section 58.56 x .516
(Superseded to 07219600)

$80.99

$

In Stock, only 3 left!

0

26

Gravely 031383

V-Belt 5L Section 70.375 x .438 x .660
(Superseded to 07219700)

$59.99

$

Usually ships in 4-12 days

0

27

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

29

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

30

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 031346

Support-Spring "B"
(Superseded to 08905100)

$16.99

$

Usually ships in 4-12 days

0

33

Gravely 021111

Rod-Idler 50 In. Mower
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

34

Gravely 06704300

Pin-Cotter .06 x 1.0
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0

35

Gravely 180193

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 120389

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

37

Gravely 031360

Weldment-Idler Pivot "B"
(Superseded to 08728500)

$

$

Not available

38

Gravely 031363

Spacer .505 x .855 x 2.50
(Superseded to 08826500)

$51.99

$

Usually ships in 4-12 days

0

39

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

40

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

41

Gravely 014406

Fitting-Lube .25-28 x .46
(Superseded to 07012600)

$

$

Not available

42

Gravely 031368

Spacer .516 x .875 x .300
(Superseded to 09036100)

$36.99

$

Usually ships in 4-12 days

0

43

Gravely 022063

Idler-Flat-Pulley 6.75 x .510
(Superseded to 07316700)

$63.99

$

In Stock, only 2 left!

0

44

Gravely 180128

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 031364

Weldment, Idler Pivot "A"
(Superseded to 08728700)

$11.99

$

Usually ships in 4-12 days

0

46

Gravely 031367

Spacer .562 x .855 x 2.18
(Superseded to 08827800)

$

$

Not available

47

Gravely 126803

Bolt-Round Head Square Neck .50-16 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

48

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

49

Gravely 06503900

Nut-Lock .375-16 Grade A
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 031345

Support-Spring "A"
(Superseded to 08727900)

$3.49

$

Usually ships in 4-12 days

0

51

Gravely 021112

Rod-Idler 40 In. Mower
(Superseded to 03351200)

$

$

Not available

52

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

53

Gravely 451539

Nut-Hex-Jam .750-10
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

54

Gravely 431787

Key-Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

Gravely 036799

Spring
(Superseded to 08738900)

Note: NS

$9.49

$

In Stock, only 1 left!

0

Gravely 036800

Collar
(Superseded to 08739000)

Note: NS

$25.99

$

Usually ships in 4-12 days

0

Gravely 036801

Ring-Snap
(Superseded to 08739100)

Note: NS

$14.99

$

Usually ships in 4-12 days

0

Gravely 145643

Ball .375 Guard
(Superseded to 05429800)

Note: NS

$3.49

$

Usually ships in 4-12 days

0
