887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000768 - 009999) MOWER DECK Parts Diagram

60" Deck for Center Mount 4-Wheel Tractor

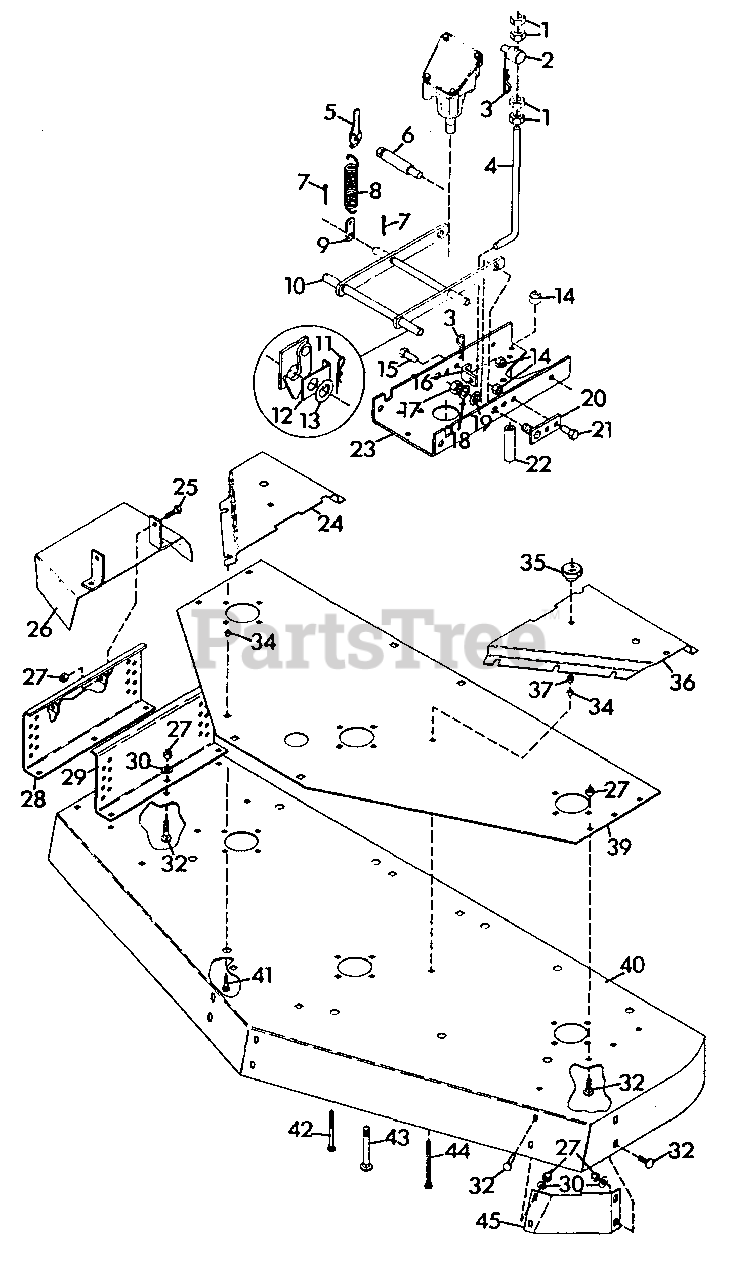

MOWER DECK Parts Diagram

  • Title

1

Gravely 120238

Nut-Jam .50-13 Grade 2
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 040625

Pivot-Mower Lift
(Superseded to 08811600)

$45.99

$

In Stock, only 3 left!

0

3

Gravely 015691

Pin-Cotter .12 x 2.0
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 040815

Rod-Lift
(Superseded to 08655500)

$

$

Not available

5

Gravely 040309

Assembly-Spring Latch Right Hand
(Superseded to 08747300)

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 040311

Assembly-Spring Latch Left Hand
(Superseded to 08747400)

$43.99

$

Usually ships in 4-12 days

0

6

Gravely 031688

Latch-Pin
(Superseded to 08729600)

$

$

Not available

7

Gravely 120123

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 011272

Spring-Lift .244 x 1.75 x 7.6
(Superseded to 08334300)

$52.99

$

Usually ships in 4-12 days

0

9

Gravely 011273

Strap
(Superseded to 08861800)

$

$

Not available

10

Gravely 040512

Weldment-Pivot Arm
(Superseded to 08748800)

$

$

Not available

11

Gravely 010405

Pin-Hair-Internal .15 x 2.937
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

12

Gravely 037982

Keeper-Mower Pivot
(Superseded to 08741100)

$

$

Not available

13

Gravely 423315

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 180179

Bolt-Hex .50-13 x 1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 08751900

Bracket-Lift

$

$

Not available

17

Gravely 034112

Nut-Locking .750-10
(Superseded to 06526300)

$

$

Not available

18

Gravely 06413400

Washer-Hardened-Thrust .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

19

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 037987

Weldment-Pivot Anchor
(Superseded to 08741400)

$

$

Not available

21

Gravely 180177

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

22

Gravely 031367

Spacer .562 x .855 x 2.18
(Superseded to 08827800)

$

$

Not available

23

Gravely 040511

Plate-Support
(Superseded to 08748700)

$

$

Not available

24

Gravely 040534

Cover-Belt Right Hand
(Superseded to 08749100)

$96.99

$

Usually ships in 4-12 days

0

25

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 035668

Weldment-Discharge Chute
(Superseded to 09090300)

$

$

Not available

27

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 051870

Weldment-60" Hanger
(Superseded to 08792100)

$20.99

$

Usually ships in 4-12 days

0

29

Gravely 051869

Hanger-Left Hand
(Superseded to 08792000)

$20.99

$

Usually ships in 4-12 days

0

30

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

34

Gravely 124824

Nut-Locking-Center .50-20
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

36

Gravely 040535

Cover-Belt Left Hand
(Superseded to 08749200)

$

$

Not available

37

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 040536

Plate-Support
(Superseded to 08936300)

$159.99

$

Usually ships in 4-12 days

0

40

Gravely 045546

Weldment-60" Mower
(Superseded to 08969400)

$

$

Not available

41

Gravely 126358

Bolt-Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06205200

Bolt-Round Head Square Neck .31-18 x 3.5
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 126803

Bolt-Round Head Square Neck .50-16 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

44

Gravely 040546

Bolt-Round Head Square Neck .31-18 x 4.0
(Superseded to 06222500)

$3.99

$

In Stock, only 3 left!

0

45

Gravely 031354

Baffle-Front
(Superseded to 08905253)

$

$

Not available
