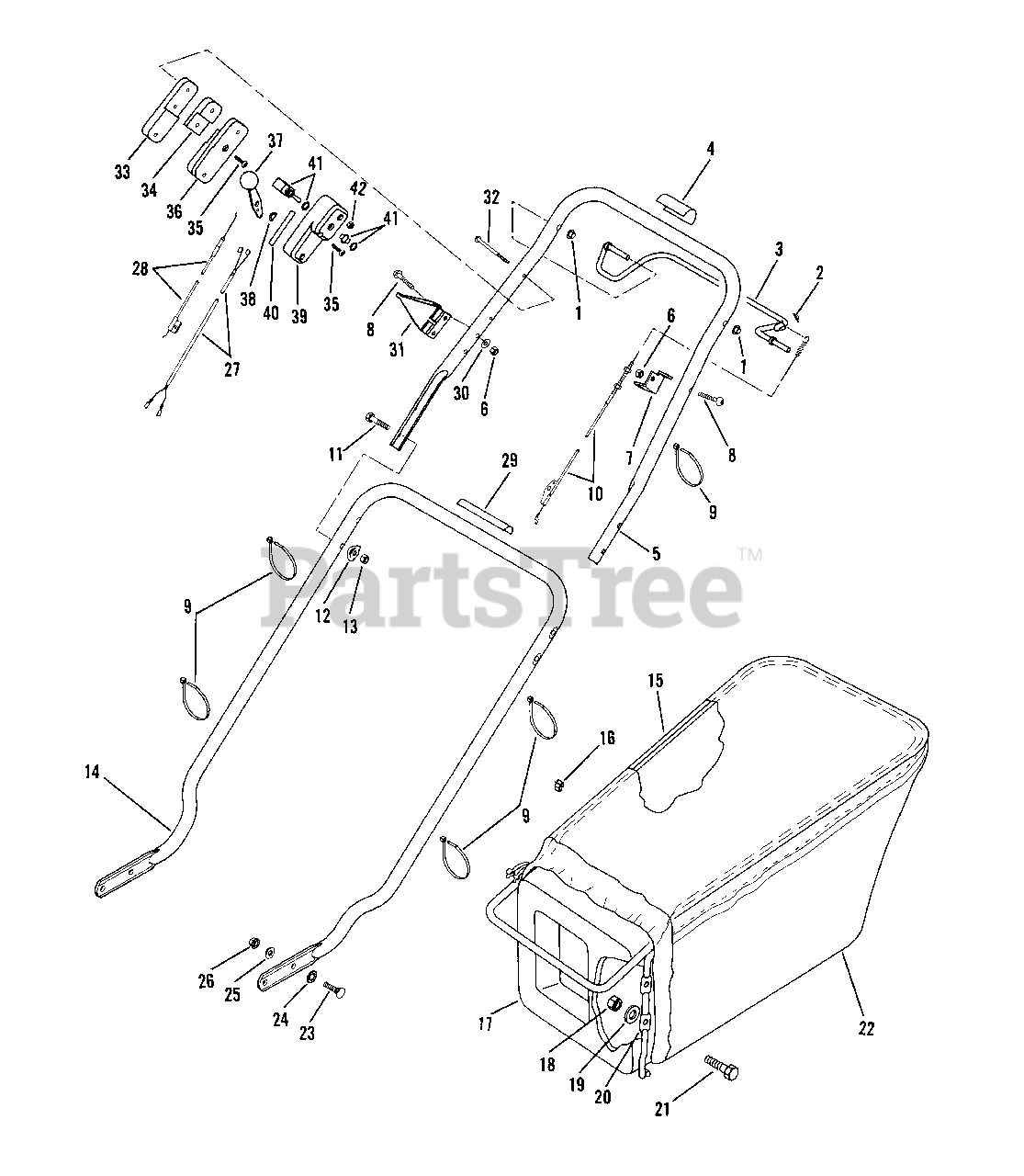

8861 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HANDLE GROUP MODEL: 8861 Parts Diagram

Walk-Behind Mower

HANDLE GROUP MODEL: 8861 Parts Diagram

  • Title

1

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

2

Lawn-Boy 609975

Nut-Push On

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 684016

Control Lever-Bail

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 145505

Decal-Traction Drive

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613160

Handle Section-Top

Note: Important Note: Replacement parts may not always be available in matching colors.

$283.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 146084

Conduit Anchor

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611233

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 684014

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$214.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611205

Screw
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 609739

Washer-Curved

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 8

0

13

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

14

Lawn-Boy 613159

Handle Section-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$409.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684007

Bag Adapter Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611530

Hanger Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$131.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 613155

"S" Clip

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611500

Bag Adapter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

Nut-Bag Adapter

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 602945

Washer-Bag Adapter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 684008

Latch Bar Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$177.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 609891

Screw-Bag Adapter
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 684020

Grass Bag Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 146012

Bolt-Handle to Handle Bracket
(Superseded to 3230-3)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 145509

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 145875

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 146139

Nut-Flanged

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 684012

Wire Harness Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684015

Throttle Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$186.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 612878

Decal-Special Training

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 611777

Control Case

Note: Important Note: Replacement parts may not always be available in matching colors.

$32.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 612703

Escutcheon Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

36

Lawn-Boy 612633

Throttle Case-Center

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 683663

Lever and Knob Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 612586

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

39

Lawn-Boy 612863

Throttle Case-Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 612643

Decal-Throttle Control
(Superseded to 612698)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 683847

Switch Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 611258

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0
