885917 - Gravely Pro-QXT Dethatcher Attachment (SN: 000101 - 000999) Skirting Parts Diagram

Pro-QXT Dethatcher Attachment

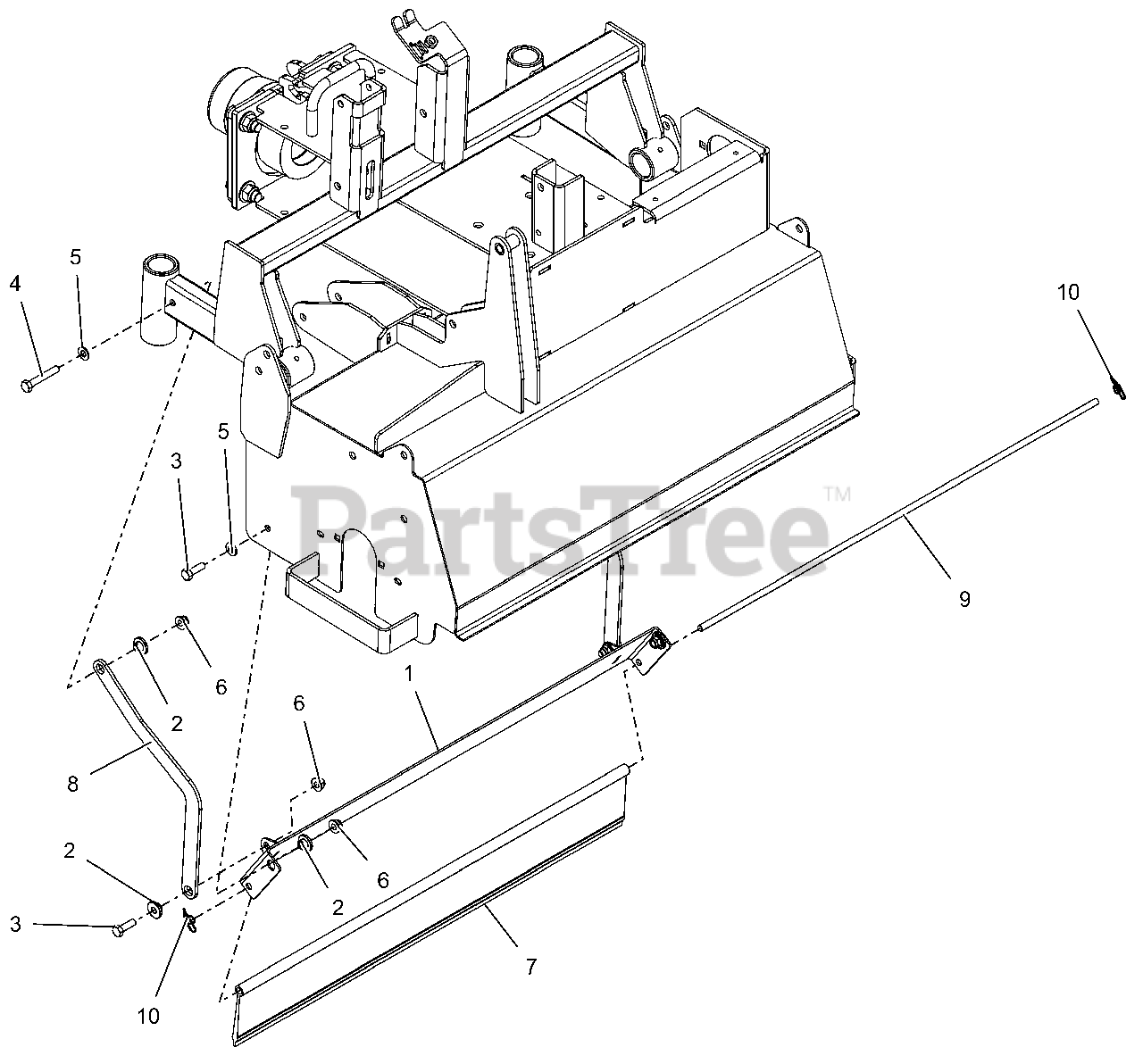

Skirting Parts Diagram

  • Title
1

Gravely 09143251

WLDMT, REAR SKIRT CONTROL

$76.99

$

Usually ships in 4-12 days

0

2

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

3

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09144800

FLAP, REAR PLASTIC

$

$

Currently unavailable

8

Gravely 09143351

ARM, CONTROL REAR FLAP

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 09150900

PLATE, SHIELD PIVOT

$

$

Not available

10

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0
