885917 - Gravely Pro-QXT Dethatcher Attachment (SN: 000101 - 000999) Lift Link Parts Diagram

Pro-QXT Dethatcher Attachment

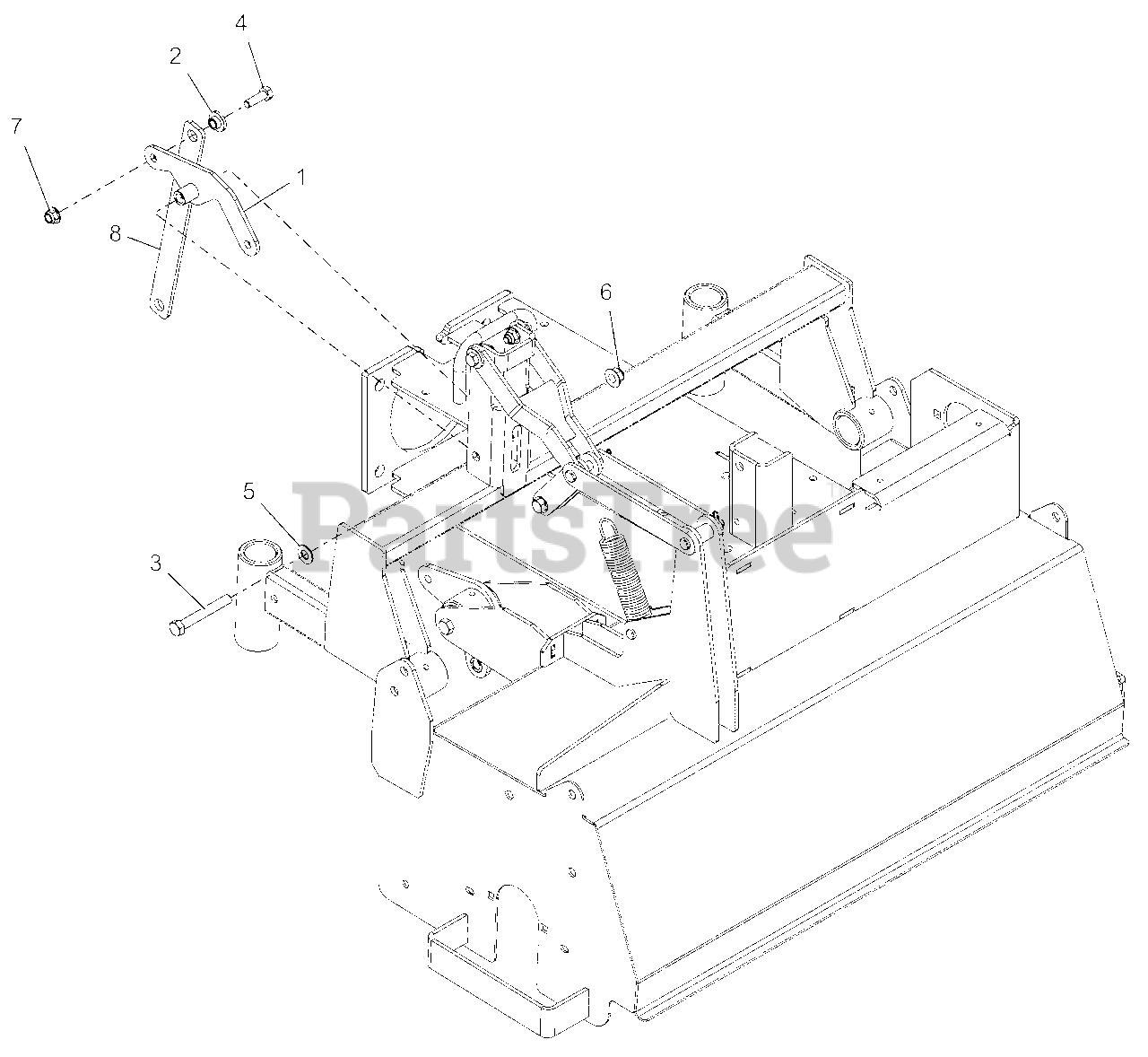

Lift Link Parts Diagram

  • Title
1

Gravely 09147251

WLDMT, LIFT LINK

$

$

Not available

2

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

3

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

4

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09143051

BRKT, HANDLE MNT

$

$

Not available
